2025 Kawasaki Eliminator ABS Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

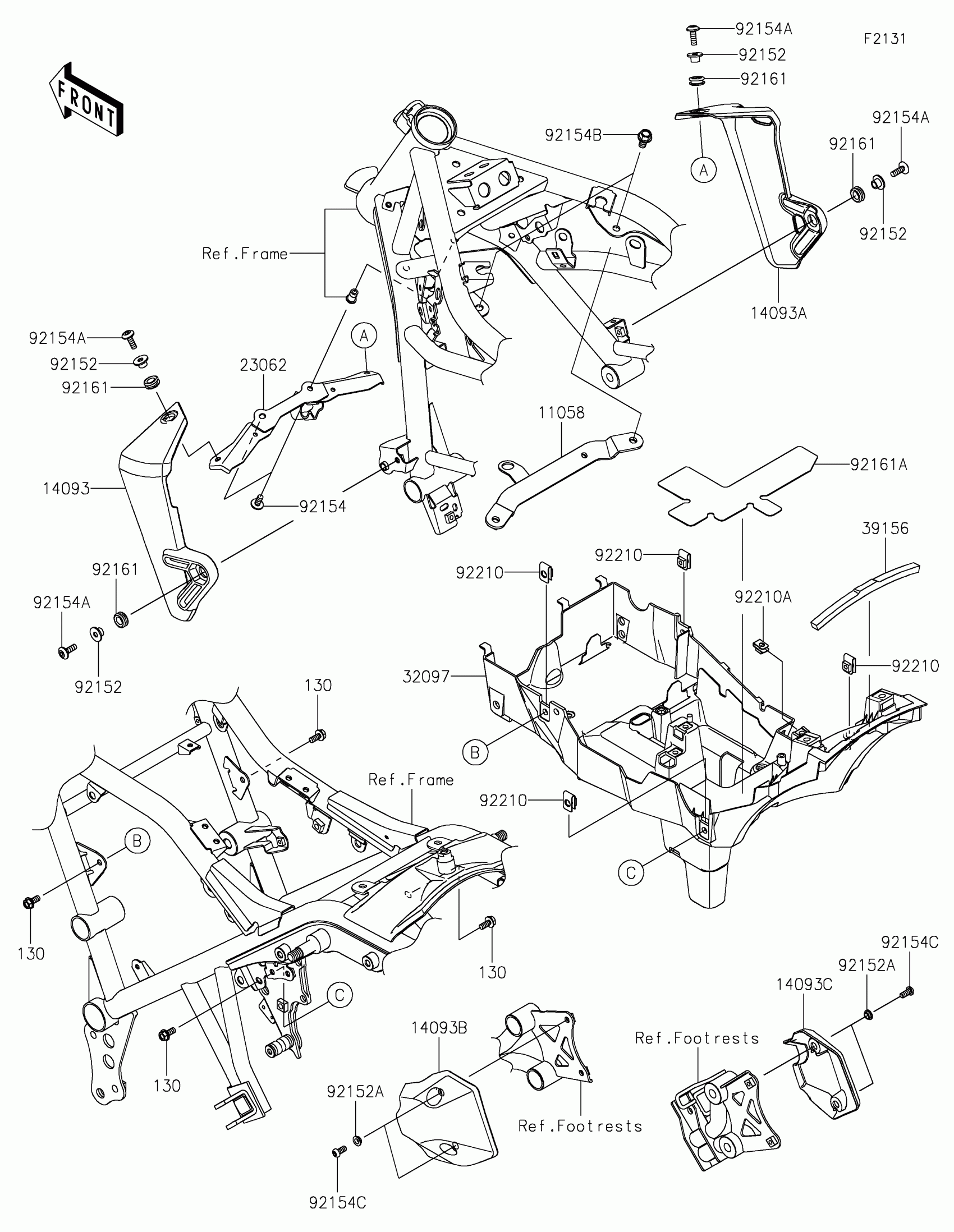

2025 Kawasaki Eliminator ABS Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,REGULATOR

11058-0554

1
Out of stock

14093

COVER,RADIATOR,LH

14093-1323

1
Out of stock

14093A

COVER,RADIATOR,RH

14093-1324

1
Out of stock

14093B

COVER,HEEL GUARD,LH

14093-1325

1
Out of stock

14093C

COVER,HEEL GUARD,RH

14093-1326

1
Out of stock

23062

BRACKET-COMP,RADIATOR

23062-1393

1
Out of stock

32097

CASE-BATTERY

32097-0576

1
Out of stock

39156

PAD,170X10X12

39156-2863

1
Out of stock

92152

COLLAR,6.8X10X8.6

92152-0888

1
Out of stock

92152A

COLLAR

92152-3772

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0907

1
Out of stock

92154A

BOLT,SOCKET,6X18

92154-2438

1
Out of stock

92154B

BOLT-FLANGED,8X14

92154-3851

1
Out of stock

92154C

BOLT,SOCKET,6X14

92154-7064

1
Out of stock

92161

DAMPER

92161-0266

1
Out of stock

92161A

DAMPER,BATTERY CASE

92161-2484

1
Out of stock

92210

NUT,6MM

92210-0891

1
Out of stock

92210A

NUT,PLATE,5MM

92210-0935

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock
