2025 Kawasaki Eliminator ABS Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

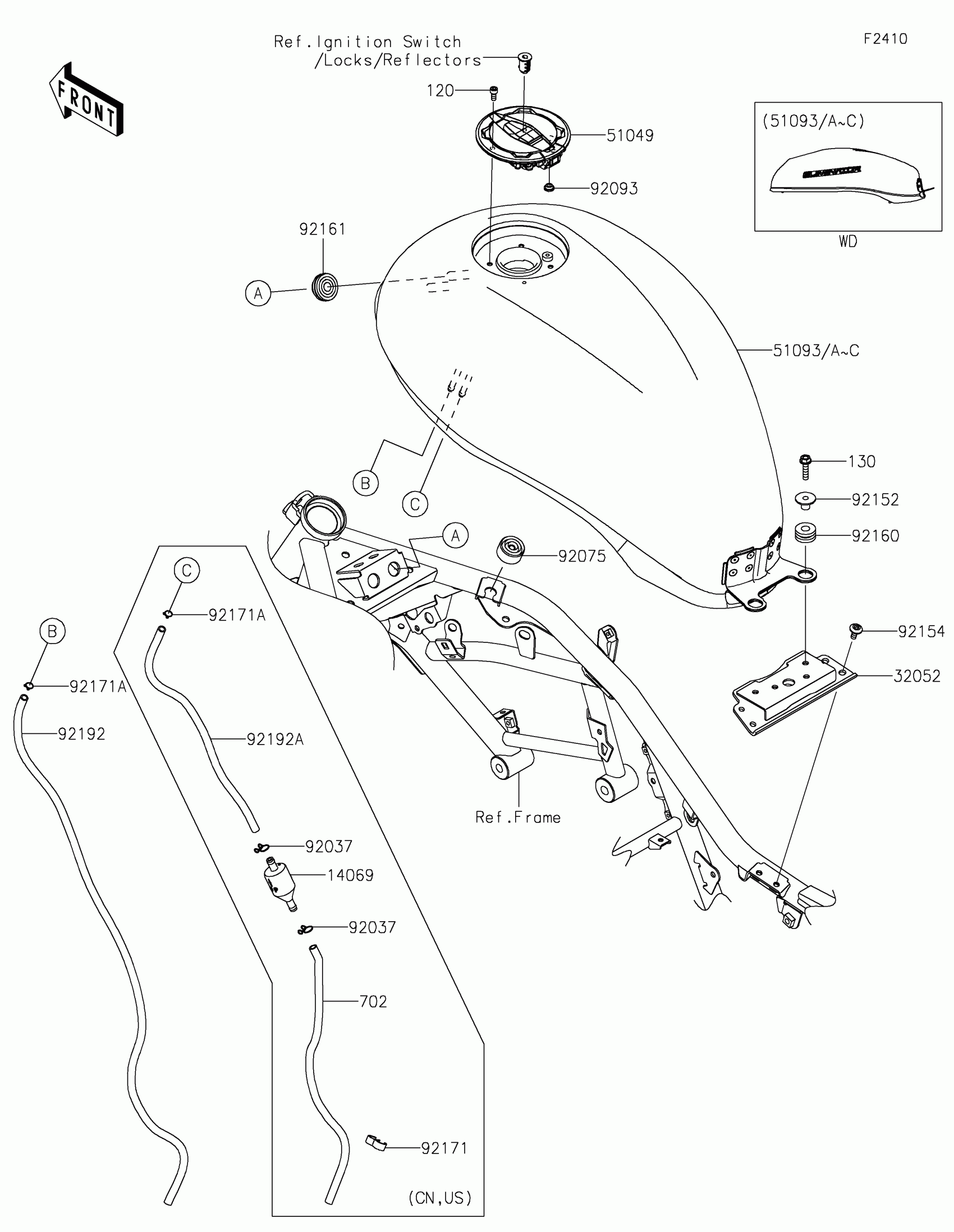

2025 Kawasaki Eliminator ABS Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32052

BRACKET-TANK

32052-0854

1
Out of stock

51049

CAP-TANK,FUEL

51049-0756

1
Out of stock

51093

TANK-COMP-FUEL,M.F.S.BLACK

51093-5119-739

1
Out of stock

51093A

TANK-COMP-FUEL,P.R.WHITE

51093-5120-68N

1
Out of stock

51093B

TANK-COMP-FUEL,P.S.GRAY

51093-5154-36S

1
Out of stock

51093C

TANK-COMP-FUEL,P.S.KHAKI

51093-5364-63F

1
Out of stock

92075

DAMPER

92075-015

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92152

COLLAR,6.5X10X13.6

92152-2204

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0932

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock

92161

DAMPER,10X32X8

92161-1791

1

$1.88

In stock

92171A

CLAMP,8X0.7

92171-1973

1
Out of stock

92192

TUBE,DRAIN

92192-2612

1
Out of stock

120

BOLT-SOCKET,5X12

120CA0512

1
Out of stock

130

BOLT-FLANGED,6X25

130CC0625

1
Out of stock
