2025 Kawasaki Eliminator ABS Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

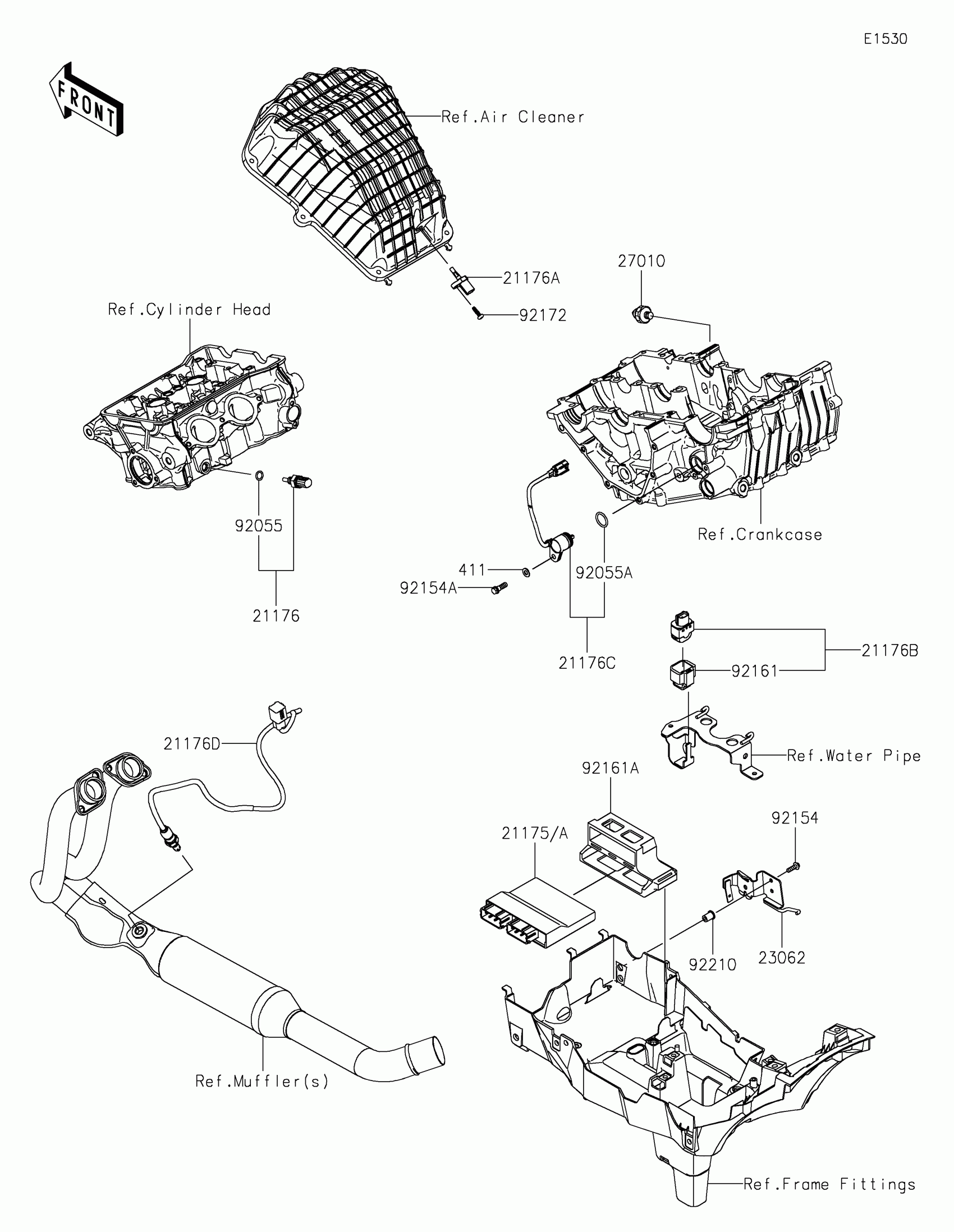

2025 Kawasaki Eliminator ABS Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175A

CONTROL UNIT-ELECTRONIC

21175-2074

1
Out of stock

21176

SENSOR,WATER TEMP

21176-0009

1
Out of stock

21176A

SENSOR,AIR TEMPERATURE

21176-0048

1
Out of stock

21176B

SENSOR,VEHICLE-DOWN

21176-0704

1
Out of stock

21176C

SENSOR,GEAR POSITION

21176-0852

1
Out of stock

21176D

SENSOR,OXYGEN,FR

21176-1184

1
Out of stock

23062

BRACKET-COMP,SENSOR

23062-1419

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92055A

RING-O

92055-0917

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-1701

1
Out of stock

92154A

BOLT

92154-3764

1
Out of stock

92161

DAMPER

92161-0951

1
Out of stock

92161A

DAMPER

92161-2437

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0790

1
Out of stock

92210

NUT,WELL,5MM

92210-0498

1
Out of stock

411

WASHER-PLAIN,6MM

411AA0600

1
Out of stock
