2025 Kawasaki Eliminator ABS Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

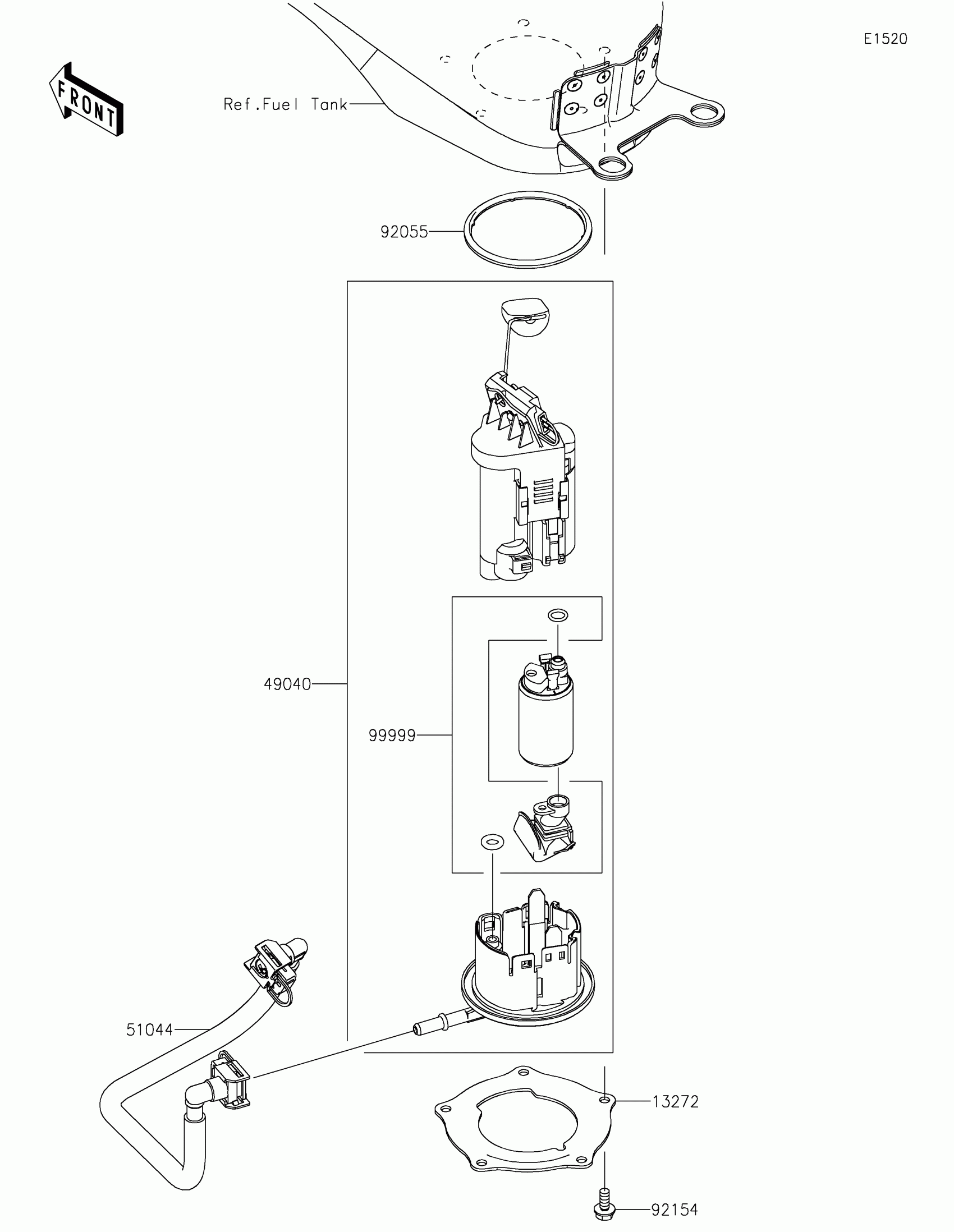

2025 Kawasaki Eliminator ABS Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE,FUEL PUMP

13272-2614

1
Out of stock

49040

PUMP-FUEL

49040-0823

1
Out of stock

51044

TUBE-ASSY,FUEL

51044-1000

1
Out of stock

92055

RING-O,FUEL PUMP

92055-0920

1
Out of stock

92154

BOLT,FLANGED,6X14

92154-3963

1
Out of stock

99999

KIT,FUEL FILTER

99999-0893

1
Out of stock
