2025 Kawasaki Eliminator ABS Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

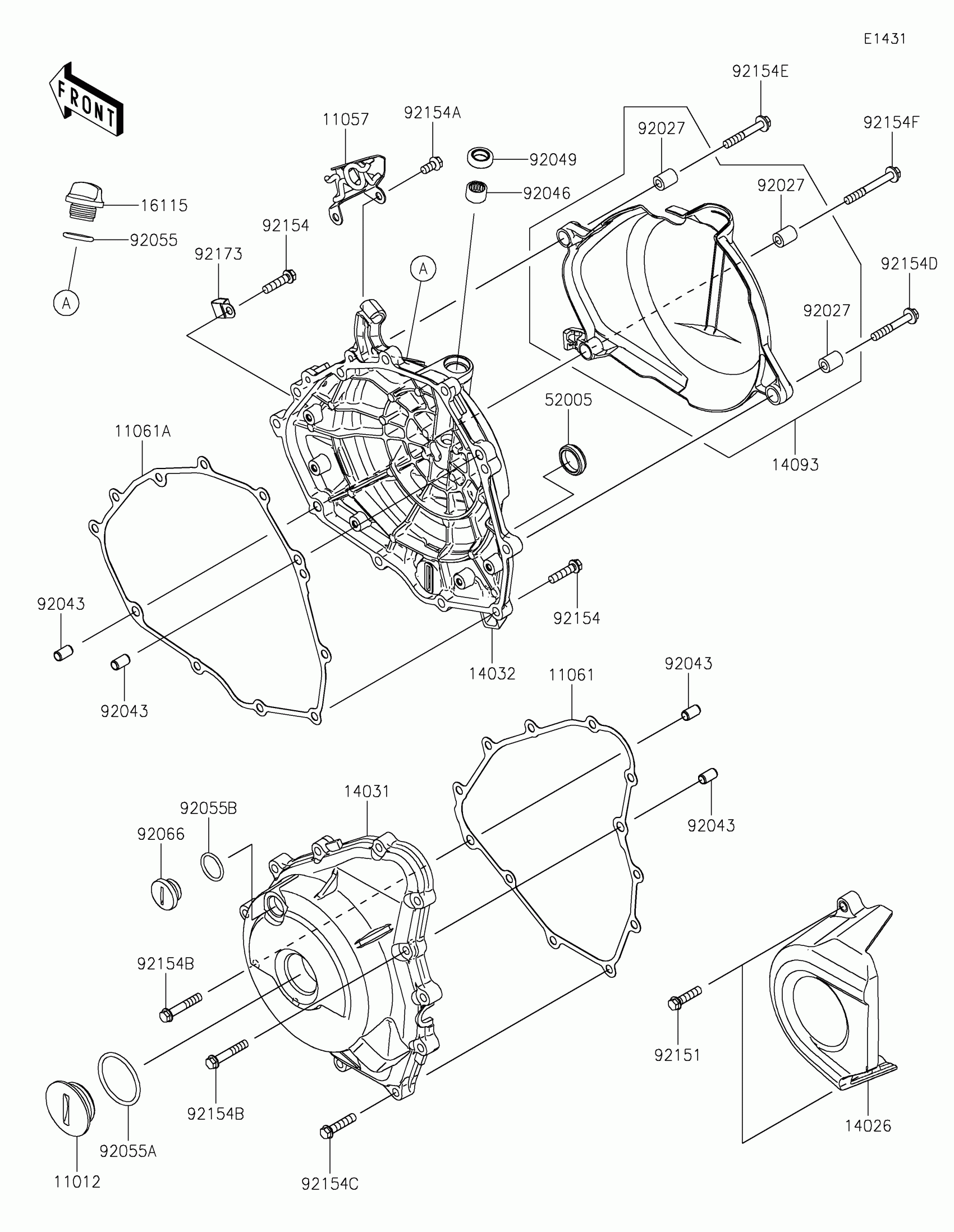

2025 Kawasaki Eliminator ABS Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1362

1
Out of stock

11057

BRACKET

11057-1231

1
Out of stock

11061

GASKET,GENERATOR COVER

11061-1252

1
Out of stock

11061A

GASKET,CLUTCH COVER

11061-1253

1
Out of stock

14026

COVER-CHAIN

14026-0157

1
Out of stock

14031

COVER-GENERATOR

14031-0618

1
Out of stock

14032

COVER-CLUTCH

14032-0656

1
Out of stock

14093

COVER

14093-1383

1
Out of stock

16115

CAP-OIL FILLER

16115-1053

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1009

1
Out of stock

92027

COLLAR

92027-1461

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92046

BEARING-NEEDLE,HK1210FM

92046-0034

1
Out of stock

92049

SEAL-OIL

92049-1560

1
Out of stock

92055

RING-O

92055-012

1
Out of stock

92055A

RING-O,39.4X3.1

92055-0734

1
Out of stock

92055B

RING-O,20X2

92055-1146

1
Out of stock

92066

PLUG

92066-0748

1
Out of stock

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

1
Out of stock

92154

BOLT,FLANGED,6X25

92154-0819

1
Out of stock

92154A

BOLT,FLANGED,6X12

92154-1777

1
Out of stock

92154B

BOLT,FLANGED,6X35

92154-1779

1
Out of stock

92154C

BOLT,FLANGED,6X28

92154-2788

1
Out of stock

92154D

BOLT,FLANGED,6X40

92154-7152

1
Out of stock

92154E

BOLT,FLANGED,6X40

92154-7153

1
Out of stock

92154F

BOLT,FLANGED,6X50

92154-7154

1
Out of stock

92173

CLAMP

92173-1828

1
Out of stock
