1997 Kawasaki Eliminator 600 Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 1997 Kawasaki Eliminator 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

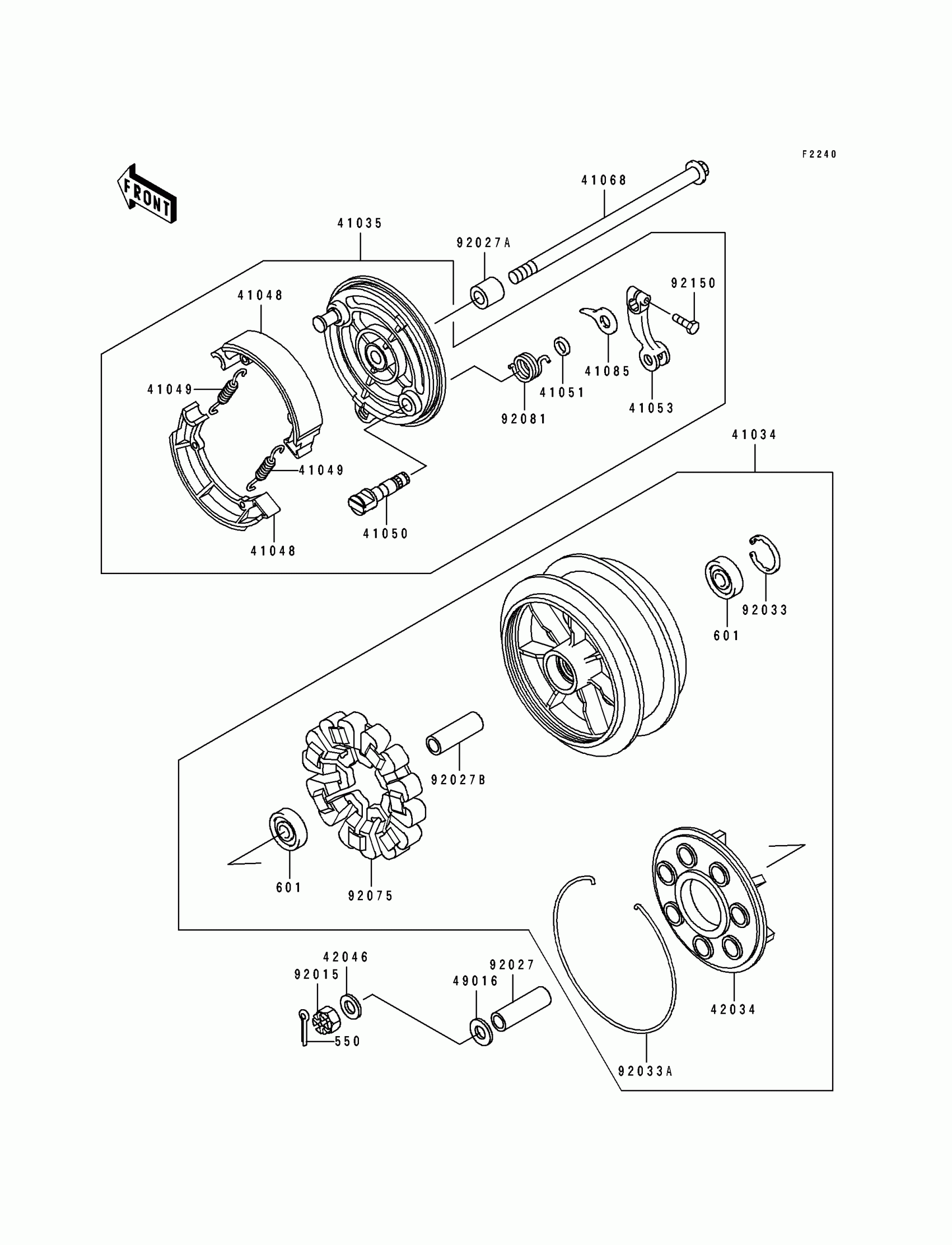

1997 Kawasaki Eliminator 600 Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,REAR BRAKE

41034-1239

1
Out of stock

41035

PANEL-ASSY-BRAKE,RR

41035-1465

1
Out of stock

41048

SHOE-BRAKE

41048-1070

1

$39.45

In stock

41049

SPRING,BRAKE SHOE

41049-012

1

$7.53

In stock

41050

CAM-BRAKE

41050-017

1
Out of stock

41051

SEAL,BRAKE CAM

41051-003

1

$3.39

In stock

41053

LEVER-BRAKE CAM

41053-1072

1
Out of stock

41068

AXLE,RR

41068-1223

1
Out of stock

41085

INDICATOR

41085-1054

1
Out of stock

42034

COUPLING,RR HUB

42034-1029

1
Out of stock

42046

WASHER,17.3X32X3.2

42046-009

1
Out of stock

49016

COVER-SEAL,RR AXLE

49016-1038

1
Out of stock

92015

NUT,CASTLE,16MM

92015-1951

1
Out of stock

92027

COLLAR,17.2X25X79

92027-1415

1
Out of stock

92027A

COLLAR,AXLE,RR,RH,L=28.5

92027-1550

1
Out of stock

92027B

COLLAR,17.2X25X74

92027-1867

1
Out of stock

92033

RING-SNAP,47MM

92033-1042

1
Out of stock

92033A

RING-SNAP,194MM

92033-1075

1
Out of stock

92075

DAMPER,RR HUB SHOCK

92075-1372

1
Out of stock

92081

SPRING,BRAKE CAM LEVER RETURN

92081-1814

1
Out of stock

92150

BOLT,8X27

92150-1797

1
Out of stock

550

PIN-COTTER,4.0X35

550D4035

1
Out of stock

601

BEARING-BALL,6303LLUC3/2ASU68

601B6303UU

1
Out of stock
