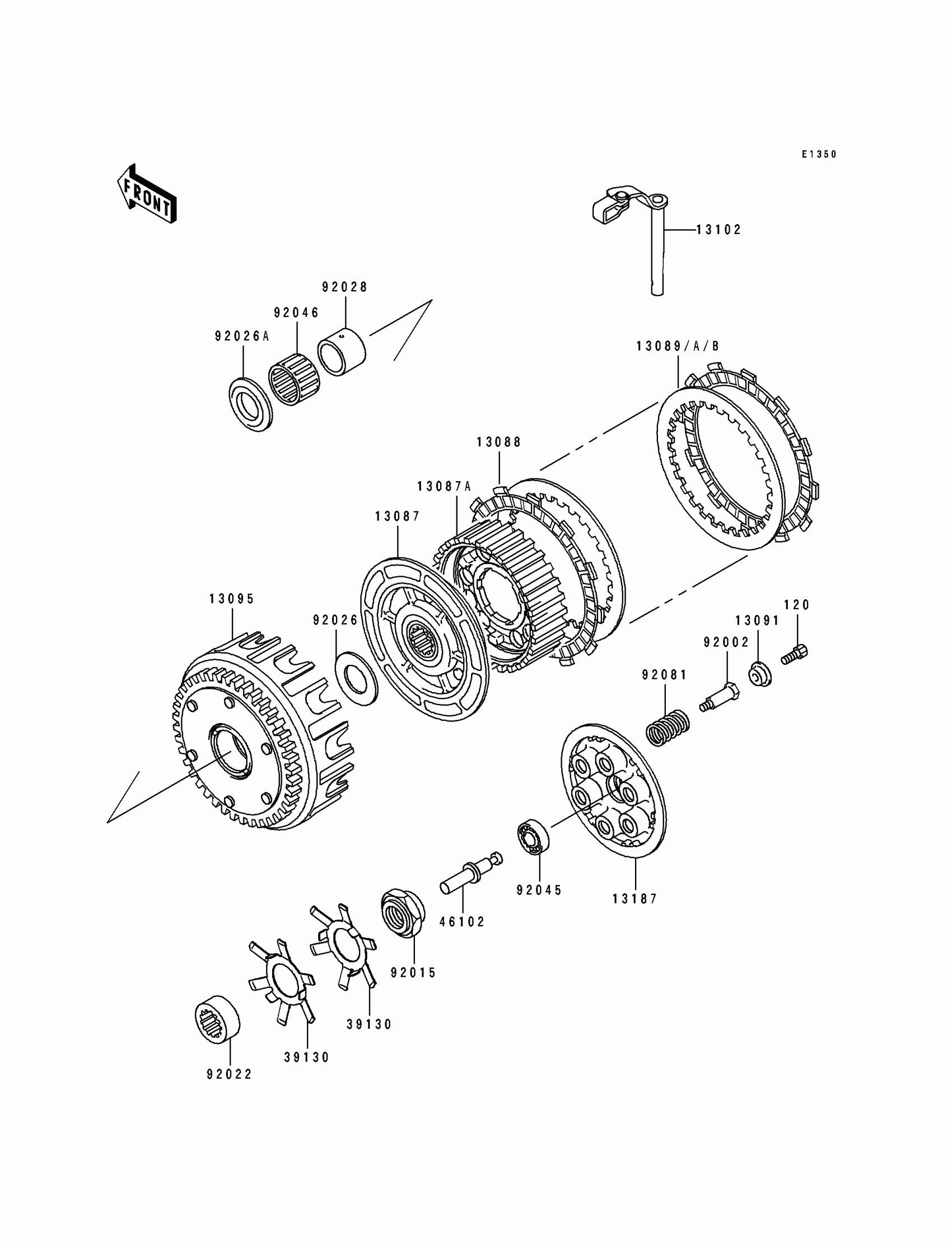

Kawasaki Eliminator 600 Clutch Diagram

#

Description
Price

13087

HUB-CLUTCH

13087-1079

Unavailable

13087A

HUB-CLUTCH

13087-1080

Unavailable

13088

PLATE-FRICTION

13088-040

$9.55

13089

PLATE-CLUTCH,T=2.0

13089-026

Unavailable

13089A

PLATE-CLUTCH,T=2.3

13089-1004

Unavailable

13089B

PLATE-CLUTCH,T=2.6

13089-1067

Unavailable

13091

HOLDER,CLUTCH SPRING

13091-1041

$9.30

13095

HOUSING-COMP-CLUTCH

13095-1312

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1080

Unavailable

13187

PLATE-CLUTCH OPERATING

13187-1058

Unavailable

39130

SPRING-LEAF

39130-1071

$8.41

46102

ROD,CLUTCH

46102-1030

$26.47

92002

BOLT,CLUTCH

92002-1639

$11.02

92015

NUT

92015-1929

Unavailable

92022

WASHER,TOOTHED,21.7X36X15.5

92022-1782

Unavailable

92026

SPACER,25.5X47X2.5

92026-022

$9.58

92026A

SPACER,THRUST,T=5.5

92026-116

$16.49

92028

BUSHING,25X32X23.6

92028-178

$23.53

92045

BEARING-BALL,6001C3ML01

92045-1235

$12.33

92046

BEARING-NEEDLE,KTV323723

92046-028

$19.92

92081

SPRING,CLUTCH

92081-1114

$5.77

120

BOLT-SOCKET,6X16

120Q0616

Unavailable
