1997 Kawasaki Eliminator 600 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 1997 Kawasaki Eliminator 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

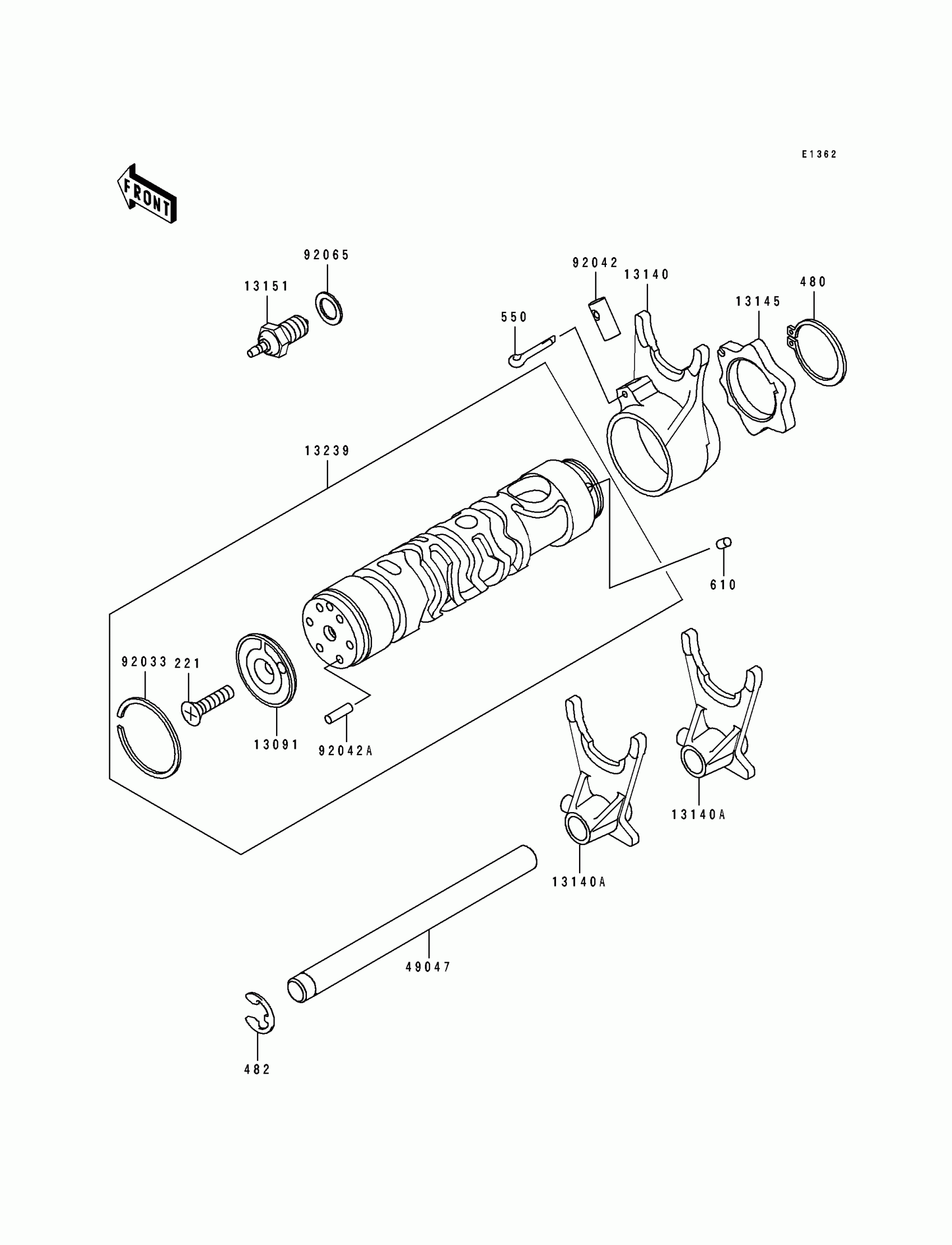

1997 Kawasaki Eliminator 600 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

1

$24.63

In stock

13140

FORK-SHIFT,DRIVE

13140-1016

1
Out of stock

13140A

FORK-SHIFT,OUTPUT

13140-1062

1
Out of stock

13145

CAM-CHANGE DRUM

13145-1058

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1080

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1196

1
Out of stock

49047

ROD-SHIFT

49047-1069

1
Out of stock

92033

RING-SNAP,37MM

92033-035

1
Out of stock

92042

PIN,DOWEL,8X18

92042-021

1
Out of stock

92042A

PIN,DOWEL,4X13.8

92042-030

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

221

SCREW-CSK-CROS,6X20

221B0620

1
Out of stock

480

CIRCLIP-TYPE-C,30MM

480J3000

1
Out of stock

482

CIRCLIP-TYPE-E,10MM

482J0100

1
Out of stock

550

PIN-COTTER,3.0X20

550D3020

1
Out of stock

610

ROLLER,4X6

610A0406

1
Out of stock
