1997 Kawasaki Eliminator 600 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1997 Kawasaki Eliminator 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

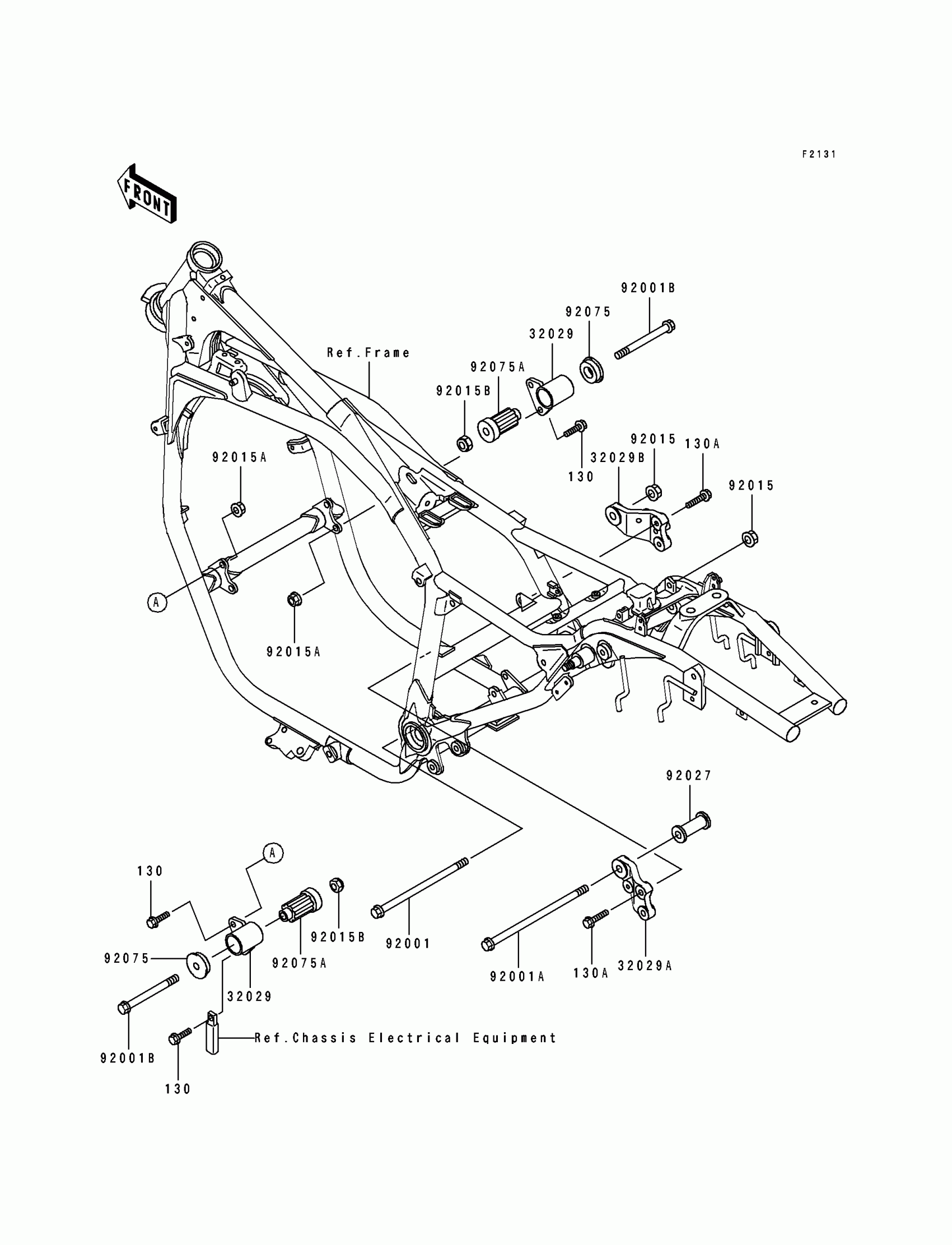

1997 Kawasaki Eliminator 600 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32029

BRACKET-ENGINE,FR

32029-1464

1
Out of stock

32029A

BRACKET-ENGINE,RR,UPP,LH

32029-1465

1
Out of stock

32029B

BRACKET-ENGINE,RR,UPP,RH

32029-1466

1
Out of stock

92001

BOLT,FLANGED,10X180

92001-1621

1
Out of stock

92001A

BOLT,FLANGED,10X200,BLACK

92001-1677

1
Out of stock

92001B

BOLT,FLANGED,10X105,BLACK

92001-1751

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92015A

NUT,FLANGED,8MM,BLACK

92015-1183

1
Out of stock

92015B

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92027

COLLAR,L=54

92027-275

1
Out of stock

92075

DAMPER,ENGINE MOUNT

92075-1738

1
Out of stock

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1739

1
Out of stock

130

BOLT-FLANGED,8X20

130J0820

1
Out of stock

130A

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock
