1997 Kawasaki Eliminator 600 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1997 Kawasaki Eliminator 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

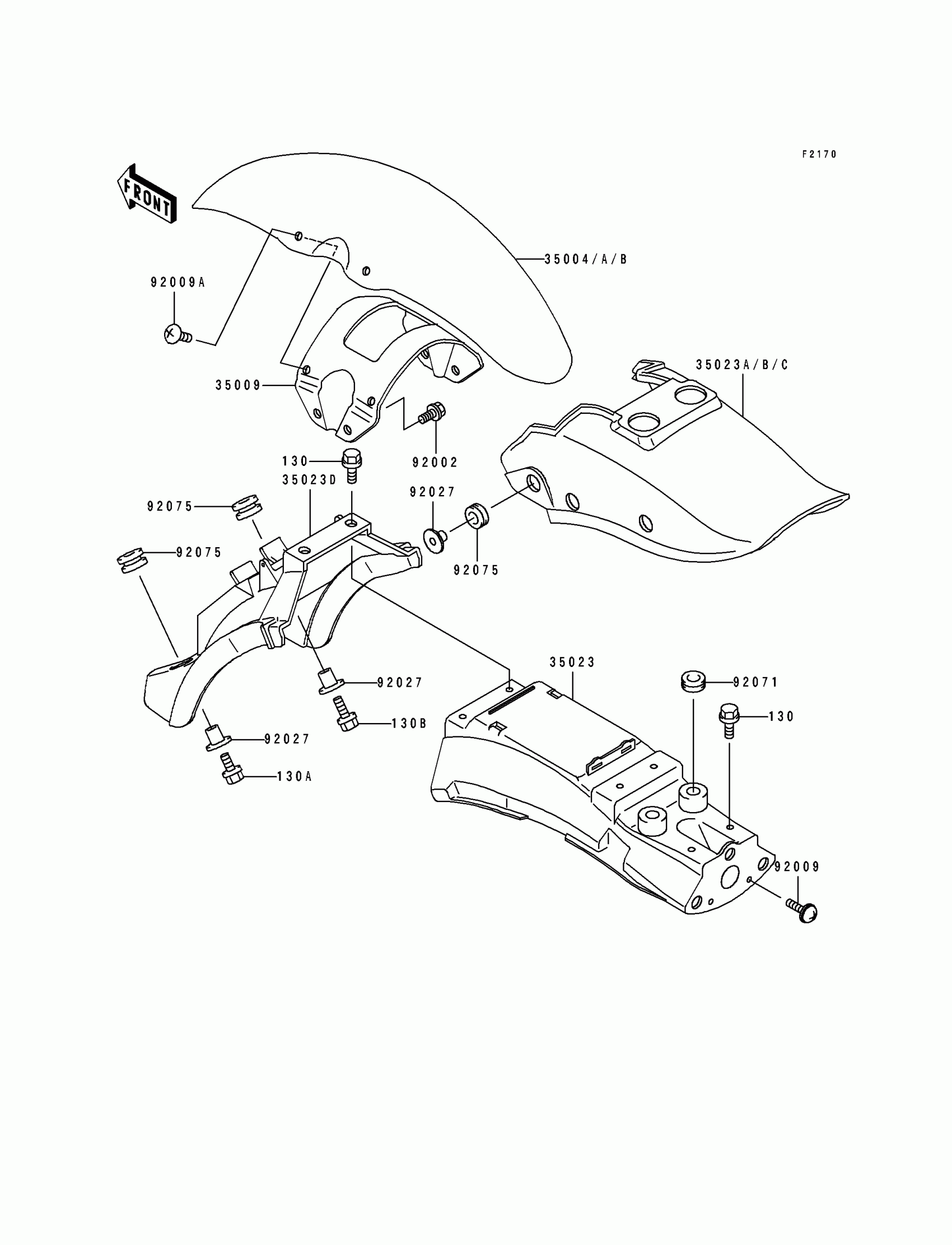

1997 Kawasaki Eliminator 600 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,F.RED

35004-1189-B1

1
Out of stock

35009

BRACE,FRONT FENDER

35009-1073

1
Out of stock

35023

FENDER-REAR,RR,LWR

35023-1377

1
Out of stock

35023A

FENDER-REAR,RR,UPP,F.RED

35023-1378-B1

1
Out of stock

35023D

FENDER-REAR,FR,F.BLACK

35023-1411-21

1
Out of stock

92002

BOLT,FLANGED,8X16

92002-1200

1
Out of stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92009A

SCREW,5X8

92009-1545

1
Out of stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

130

BOLT-FLANGED,6X18

130J0618

1
Out of stock

130A

BOLT-FLANGED

130J0620

1
Out of stock

130B

BOLT-FLANGED,6X25

130J0625

1
Out of stock
