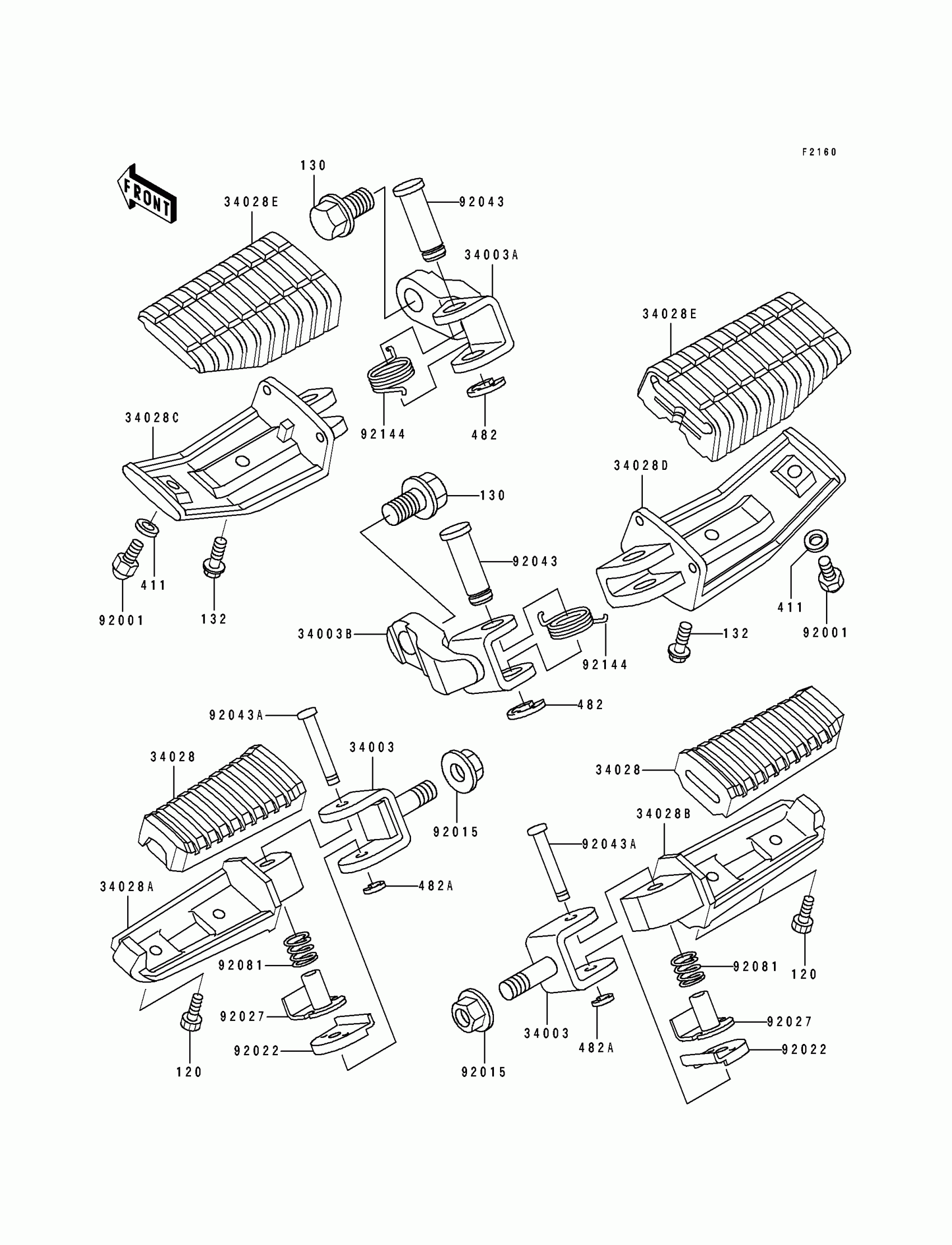

Kawasaki Eliminator 600 Footrests Diagram

#

Description
Price

34003

HOLDER-STEP,RR

34003-1240

$32.15

34003A

HOLDER-STEP,FR,LH

34003-1257

Unavailable

34003B

HOLDER-STEP,FR,RH

34003-1277

Unavailable

34028

STEP,RR,RUBBER

34028-1060

$21.98

34028A

STEP,RR,LH

34028-1158

Unavailable

34028B

STEP,RR,RH

34028-1159

Unavailable

34028C

STEP,FR,LH

34028-1162

Unavailable

34028D

STEP,FR,RH

34028-1163

Unavailable

34028E

STEP,FR,RUBBER

34028-1164

$23.37

92001

BOLT,BANK SENSOR

92001-1905

$7.22

92015

NUT,FLANGED,10MM

92015-1428

$3.81

92022

WASHER,STEP,RR

92022-1507

$4.61

92027

COLLAR,STEP

92027-1732

$10.73

92043

PIN,12X37

92043-1144

Unavailable

92043A

PIN,6X35.5

92043-1294

$9.29

92081

SPRING,STEP,RR

92081-1612

$3.81

92144

SPRING,STEP RETURN

92144-1568

$4.88

120

BOLT-SOCKET,5X14

120Z0514

Unavailable

130

BOLT-FLANGED

130C1220

Unavailable

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.66

482A

CIRCLIP-TYPE-E,5MM

482L5000

$1.04
