1997 Kawasaki Eliminator 600 Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 1997 Kawasaki Eliminator 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

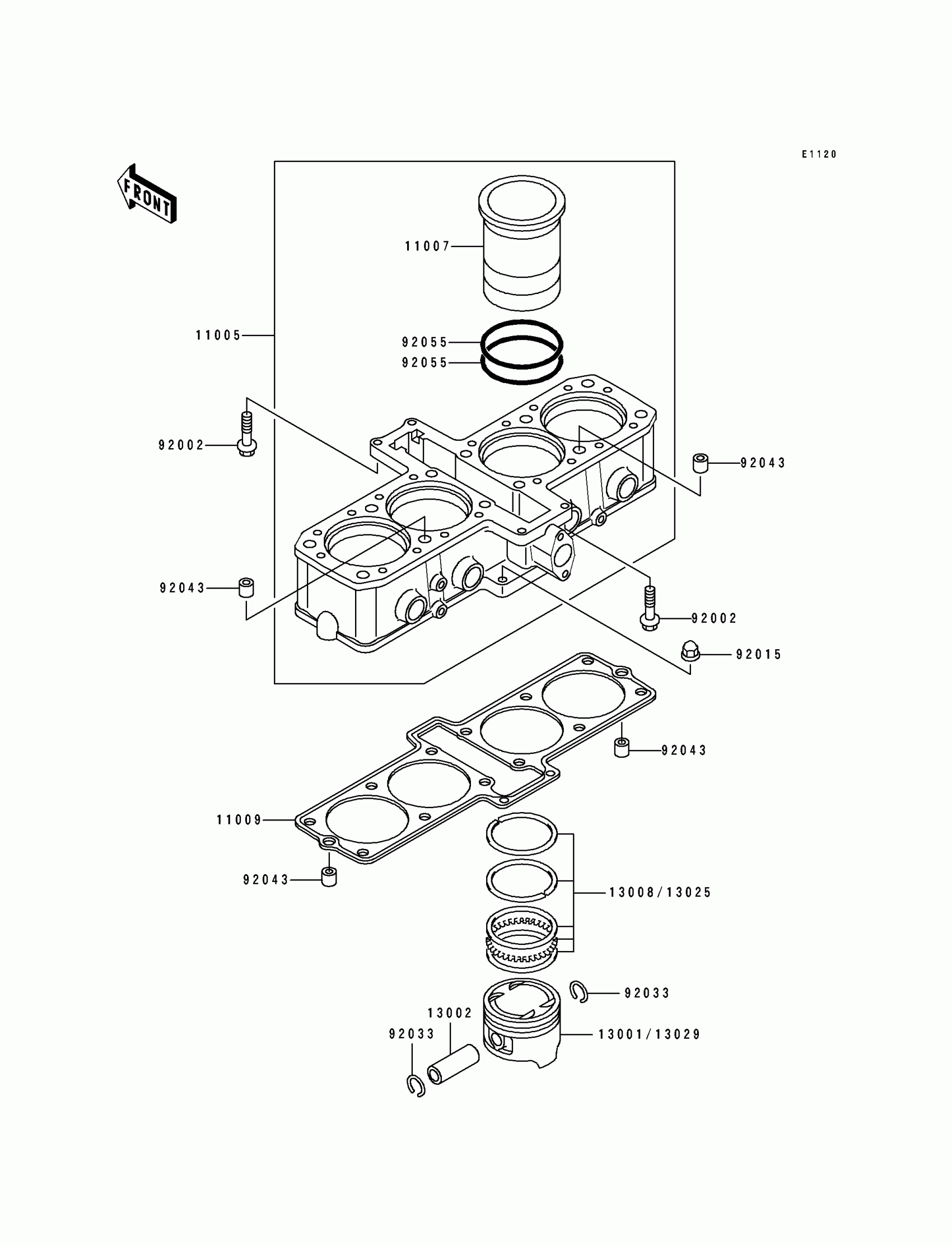

1997 Kawasaki Eliminator 600 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-1776

1
Out of stock

11007

LINER-CYLINDER

11007-1086

1
Out of stock

11009

GASKET,CYLINDER BASE

11009-1578

1
Out of stock

13001

PISTON-ENGINE,STD

13001-1233

1
Out of stock

13002

PIN-PISTON

13002-1057

1
Out of stock

13008

RING-SET-PISTON,STD

13008-1074

1
Out of stock

13025

RING-SET-PISTON L,O/S 0.50

13025-1072

1
Out of stock

13029

PISTON-ENGINE L,O/S 0.50

13029-1149

1
Out of stock

92002

BOLT,6X28

92002-1104

1
Out of stock

92015

NUT,CAP,6MM,BLACK

92015-1170

1
Out of stock

92033

RING-SNAP,PISTON PIN

92033-1151

1
Out of stock

92043

PIN,8.2X10X14

92043-1264

1
Out of stock

92055

RING-O,66.5MM

92055-1287

1
Out of stock
