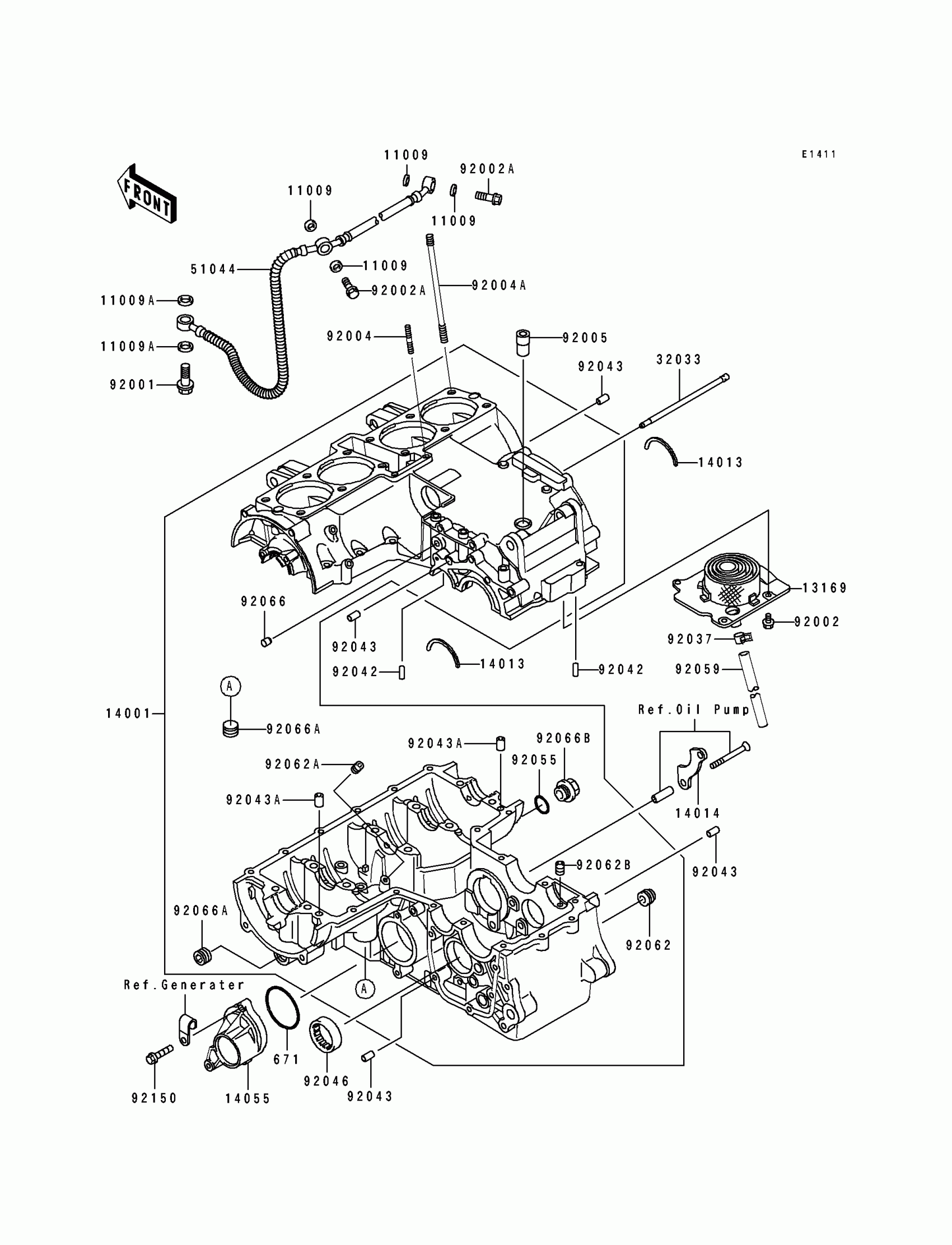

Kawasaki Eliminator 600 Crankcase Diagram

#

Description
Price

11009

GASKET,8.2X14X1.0

11009-1344

$2.11

11009A

GASKET,12.5X18X1.5

11009-1376

$1.35

13169

PLATE,BREATHER

13169-1966

Unavailable

14001

SET-CRANKCASE

14001-5327

Unavailable

14013

RING-POSITION

14013-004

$7.76

14014

PLATE-POSITION

14014-1006

$11.41

14055

CASE-GEAR

14055-1116

$82.67

32033

PIPE,OIL

32033-1858

Unavailable

51044

TUBE-ASSY,OIL

51044-1168

$241.78

92001

BOLT,BANJO,12X23

92001-1871

$16.05

92002

BOLT,6X10

92002-1449

$3.68

92002A

BOLT,BANJO,8X24

92002-1858

$11.47

92004

STUD,6X22

92004-059

$4.93

92004A

STUD,8X128.5

92004-1161

Unavailable

92005

FITTING,BREATHER

92005-1129

$19.53

92037

CLAMP,HOSE CLIP

92037-1181

$2.31

92042

PIN,DOWEL,6X16

92042-016

$3.81

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,8.2X10X14

92043-1264

$0.51

92046

BEARING-NEEDLE,37BTM4312

92046-051

$23.59

92055

RING-O,20X2

92055-1146

$6.55

92059

TUBE

92059-1544

Unavailable

92062

NOZZLE

92062-014

$9.56

92062A

NOZZLE,6X8,BLACK

92062-1079

$8.37

92062B

NOZZLE,6X8,SILVER

92062-1081

$5.63

92066

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92066A

PLUG,PT3/8X12

92066-1252

$4.88

92066B

PLUG,MAIN GALLERY,18X9

92066-1394

$8.34

92150

BOLT,FLANGED-SMALL,6X25

92150-1779

Unavailable

671

O RING,55MM

671B2555

$4.67
