1997 Kawasaki Eliminator 600 Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 1997 Kawasaki Eliminator 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

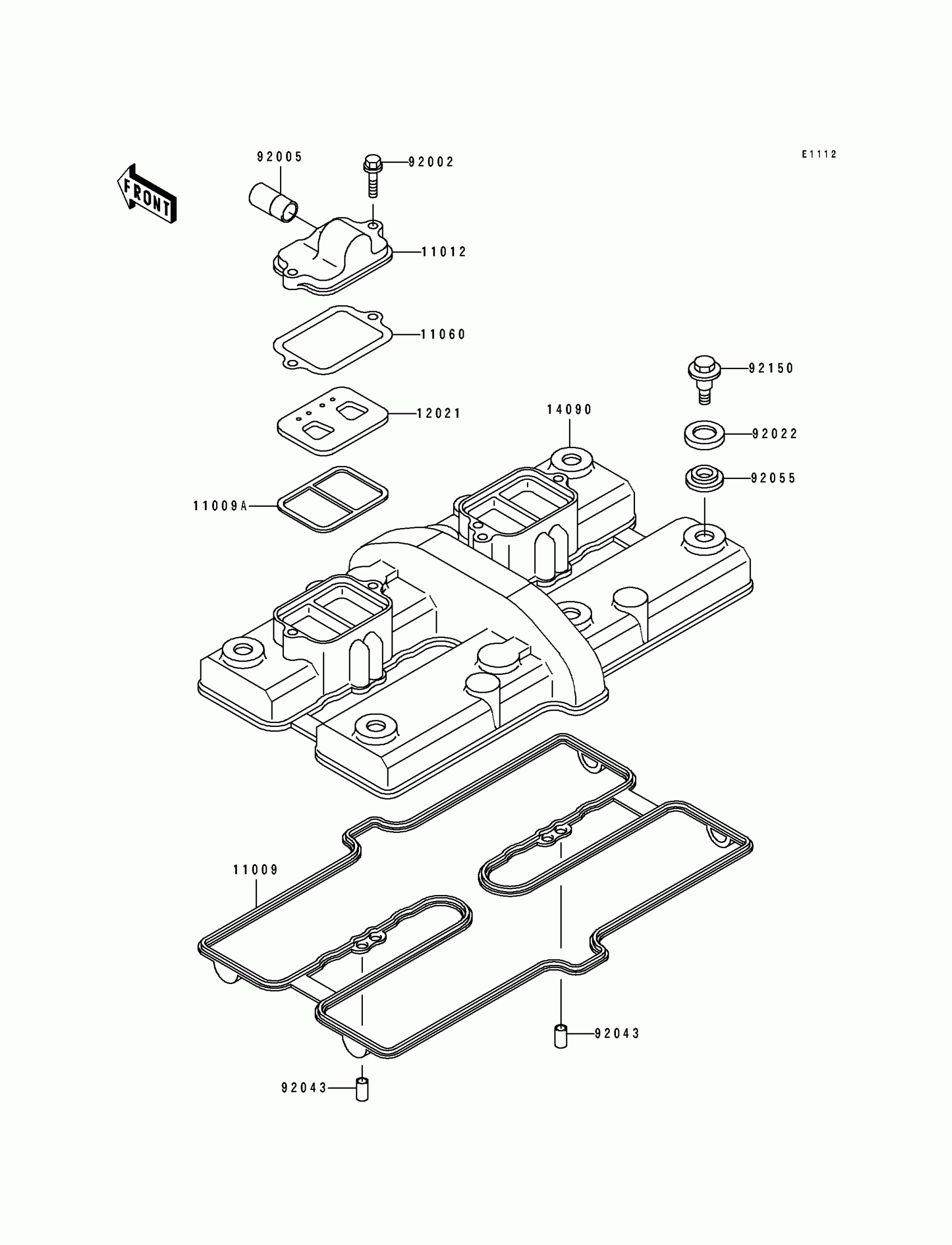

1997 Kawasaki Eliminator 600 Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,CYLINDER HEAD COVER

11009-1497

1
Out of stock

11009A

GASKET,REED VALVE

11009-1857

1

$8.59

In stock

11012

CAP

11012-1919

1
Out of stock

11060

GASKET

11060-1509

1

$6.85

In stock

12021

VALVE-ASSY-REED

12021-1053

1

$81.60

In stock

14090

COVER,CYLINDER HEAD

14090-1576

1
Out of stock

92002

BOLT,6X22

92002-1068

1

$3.58

In stock

92005

FITTING,REED VALVE

92005-1006

1
Out of stock

92022

1

$4.44

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92055

1

$6.06

In stock

92150

BOLT,FLANGED,6X23.5

92150-1447

1

$3.65

In stock
