1994 Kawasaki Eliminator 250 Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 1994 Kawasaki Eliminator 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

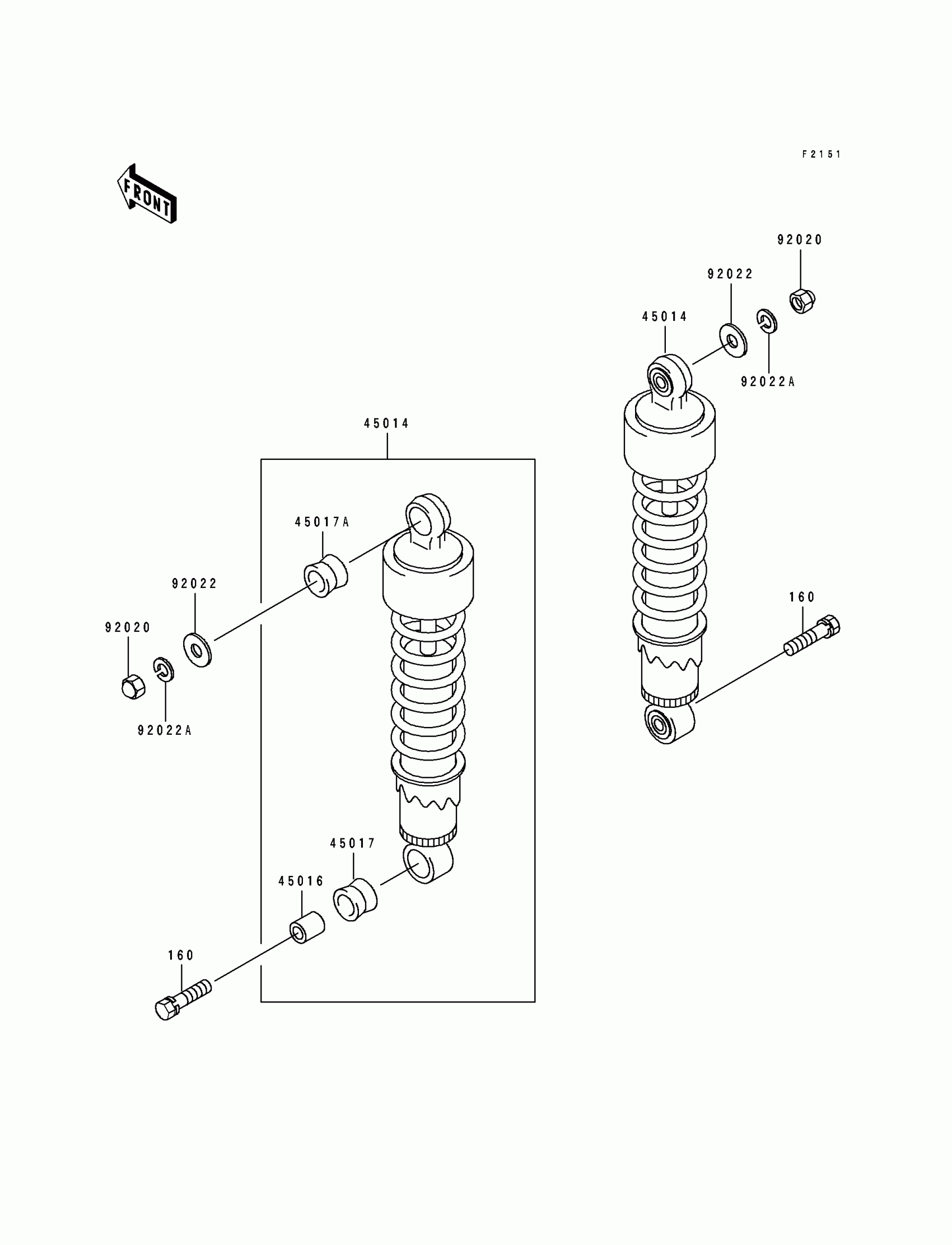

1994 Kawasaki Eliminator 250 Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

45014

SHOCKABSORBER

45014-1378

1
Out of stock

45016

COLLAR,SHOCKABSORBER

45016-008

1
Out of stock

45017

DAMPER,SHOCKABSORBER

45017-012

1
Out of stock

45017A

DAMPER,SHOCKABSORBER

45017-015

1
Out of stock

92020

NUT,CAP,10MM

92020-003

1
Out of stock

92022

WASHER,10.5X26X2.3

92022-044

1
Out of stock

92022A

WASHER,SPRING,10MM

92022-1540

1
Out of stock

160

BOLT-FINE-WS

160N1040

1
Out of stock
