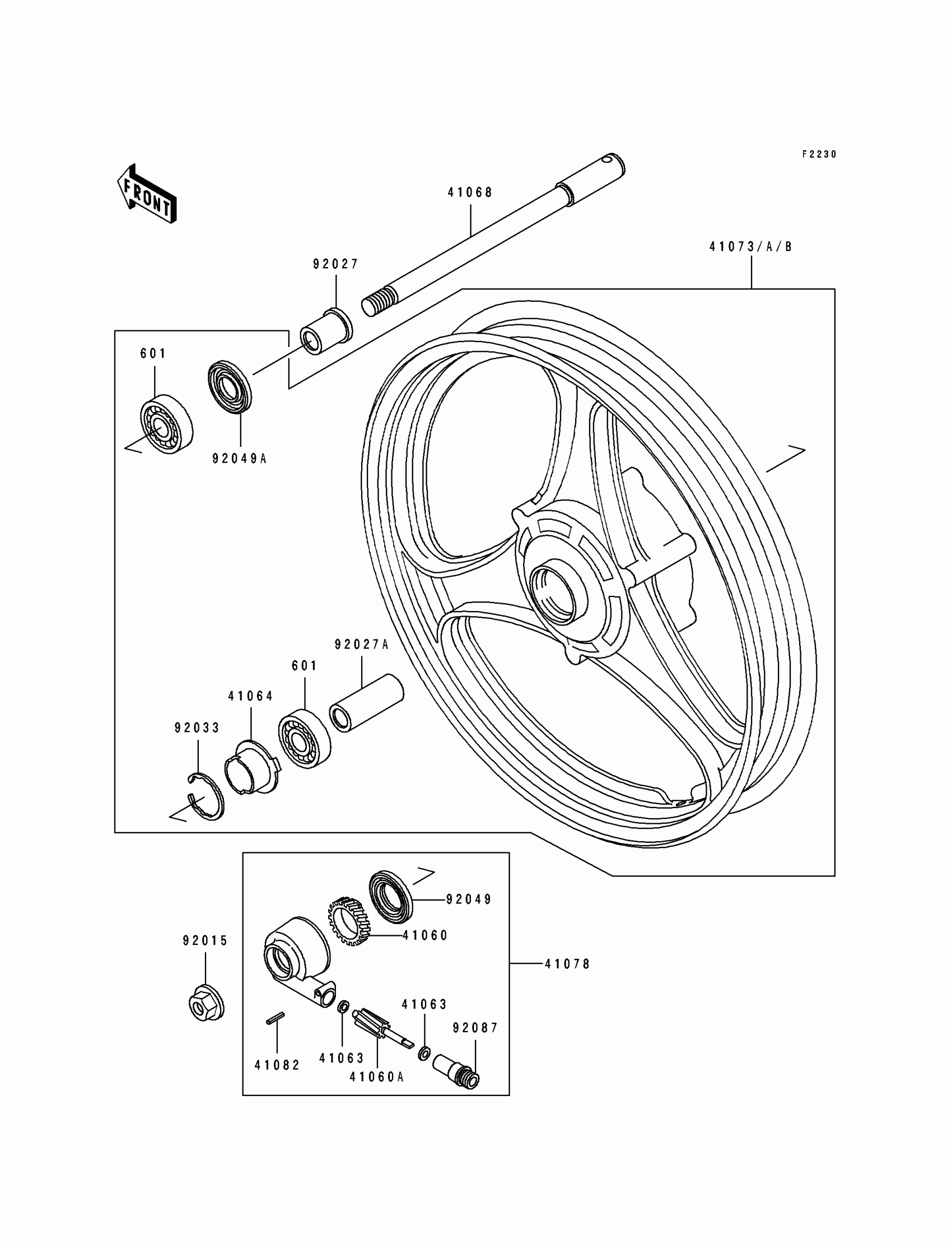

Kawasaki Eliminator 250 Front Wheel Diagram

Description

Price

41060

GEAR-METER SCREW,24T

41060-1025

$20.37

41060A

GEAR-METER SCREW,9T

41060-1035

Unavailable

41063

WASHER,5.1X9X0.4

41063-001

$4.17

41064

RECEIVER-SPEEDOMETER

41064-1006

$11.33

41068

AXLE,FR

41068-1238

Unavailable

41073B

WHEEL-ASSY,FR,G.GRAY

41073-1558-GE

Unavailable

41078

CASE-ASSY-METER GEAR,F.BLACK

41078-1028

$95.84

41082

PIN,SPRING

41082-001

$3.53

92015

NUT,14MM

92015-1407

$7.54

92027

COLLAR,L=34

92027-1118

$18.36

92027A

COLLAR,15.2X22X60

92027-1980

$14.15

92033

RING-SNAP,42MM

92033-1041

$4.64

92049

SEAL-OIL,BJN30427-C3

92049-1057

$7.08

92049A

SEAL-OIL,22X35X8

92049-1348

$9.42

92087

BUSHING-METER GEAR

92087-1002

$22.34

601

BEARING-BALL,#6202UG

601B6202UG

$15.51
