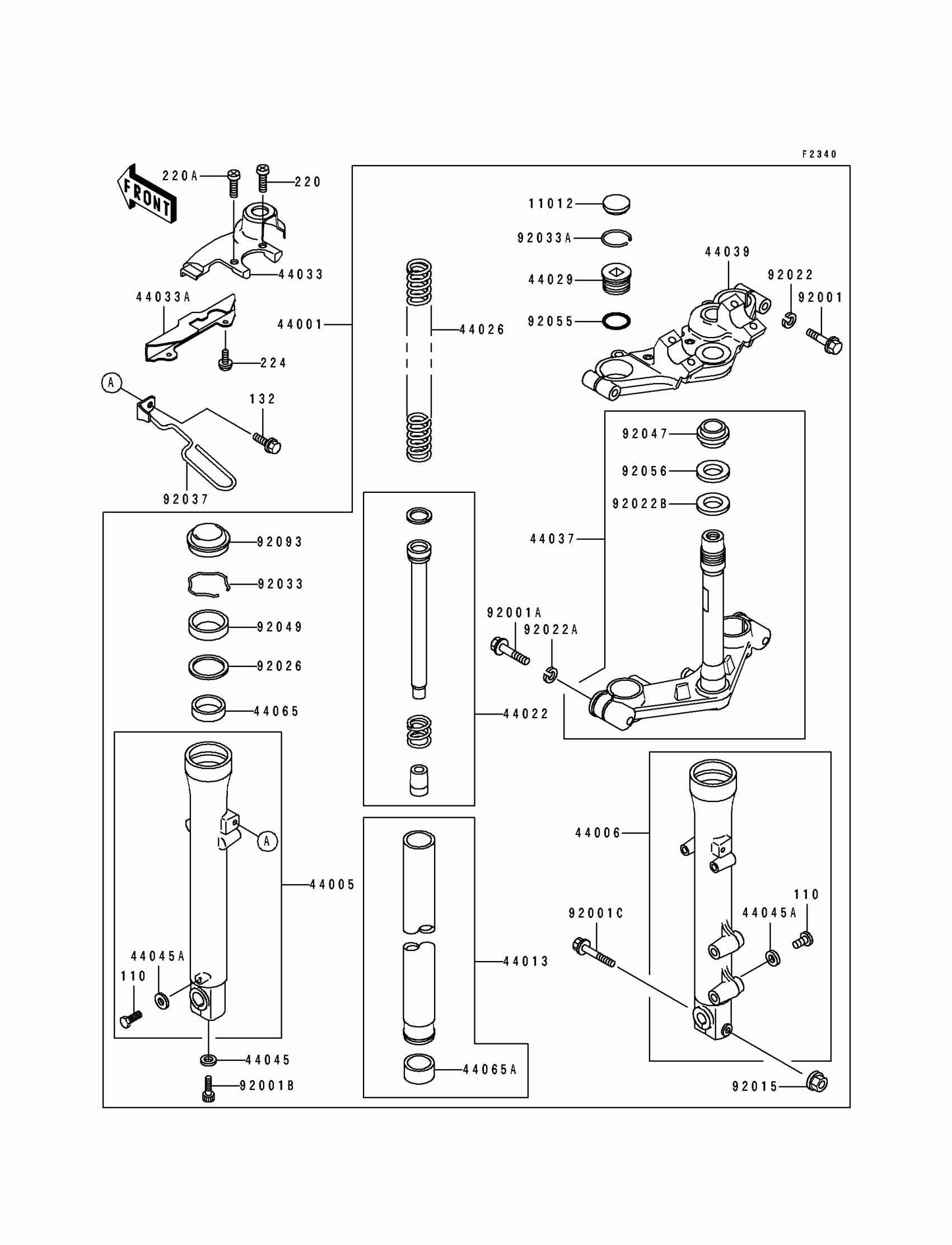

Kawasaki Eliminator 250 Front Fork Diagram

#

Description
Price

11012

CAP,FORK TOP

11012-1620

Unavailable

44001

FORK-FRONT

44001-1666

$1,481.95

44005

PIPE-LEFT FORK OUTER

44005-1266

$322.12

44006

PIPE-RIGHT FORK OUTER

44006-1263

$353.04

44013

PIPE-FORK INNER

44013-1270

$253.28

44022

CYLINDER-FORK

44022-1217

Unavailable

44026

SPRING-FRONT FORK

44026-1374

$33.13

44029

SEAT-FORK SPRING

44029-1124

$42.24

44033

COVER-FORK,UPPER BRACKET

44033-1176

Unavailable

44033A

COVER-FORK

44033-1181

$15.49

44037

HOLDER-FORK UNDER

44037-1222

$301.37

44039

HOLDER-FORK UPPER

44039-1159

$217.20

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44045A

GASKET,DRAIN PLUG

44045-052

$7.12

44065

BUSHING-FRONT FORK

44065-1068

$20.25

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1069

$25.00

92001

BOLT,8X40

92001-1063

$7.33

92001A

BOLT,10X40

92001-1454

$9.34

92001B

BOLT,FORK CYLINDER

92001-1464

$4.67

92001C

BOLT,FLANGED,8X50

92001-1486

$8.74

92015

NUT,FLANGED,8MM

92015-1055

$3.66

92022

WASHER,SPRING,8MM

92022-1703

$2.75

92022A

WASHER,SPRING,10MM

92022-1704

$3.14

92022B

WASHER,30.5X50X0.6

92022-231

$4.17

92026

SPACER,FORK

92026-1038

$9.88

92033

RING-SNAP,FORK

92033-1219

$4.75

92033A

RING-SNAP,FORK TOP

92033-1220

$8.97

92037

CLAMP,CABLE

92037-1922

$16.97

92047

RACE,STEERING STEM BEARING

92047-012

$14.20

92049

SEAL-OIL,FORK

92049-1226

$18.64

92055

RING-O,FORK SPRING SEAT

92055-1359

$9.05

92056

SEAL-OIL,STEERING STEM

92056-003

$6.75

92093

SEAL,FORK

92093-1196

$20.25

110

BOLT HEX HEAD 6X8

110B0608

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132E0610

$3.57

220

SCREW-PAN-CROS

220E0510

Unavailable

220A

SCREW-PAN-CROS,5X18

220E0518

Unavailable

224

SCREW-PAN-WP-CROS

224B0508

Unavailable
