1994 Kawasaki Eliminator 250 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1994 Kawasaki Eliminator 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

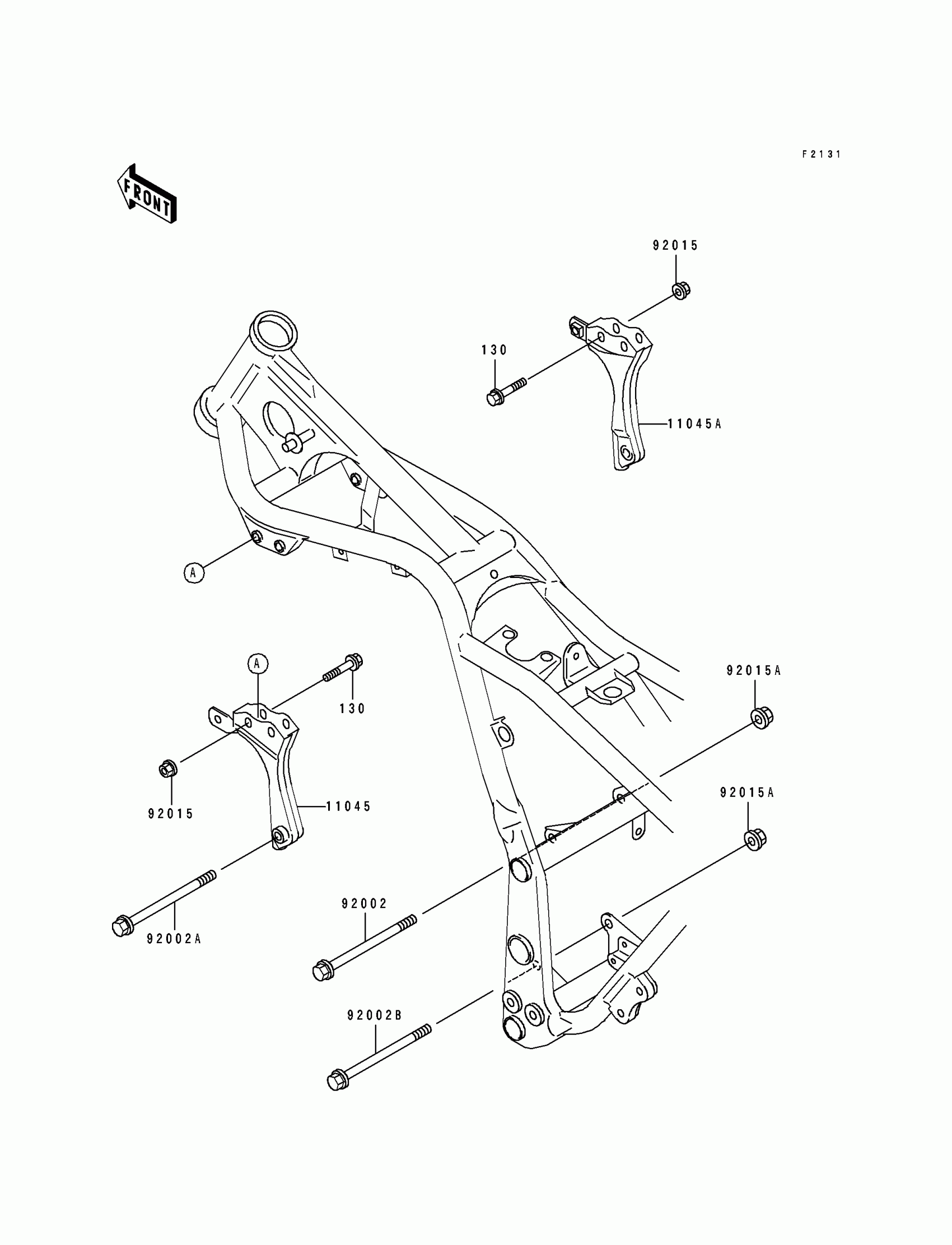

1994 Kawasaki Eliminator 250 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,ENGINE,LH

11045-1814

1
Out of stock

11045A

BRACKET,ENGINE,RH

11045-1815

1
Out of stock

92002

BOLT,FLANGED,10X130

92002-1087

1
Out of stock

92002A

BOLT,FLANGED,10X170

92002-1470

1
Out of stock

92002B

BOLT,FLANGED,10X138

92002-1795

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1180

1
Out of stock

130

BOLT-FLANGED,8X40

130G0840

1
Out of stock
