1994 Kawasaki Eliminator 250 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1994 Kawasaki Eliminator 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

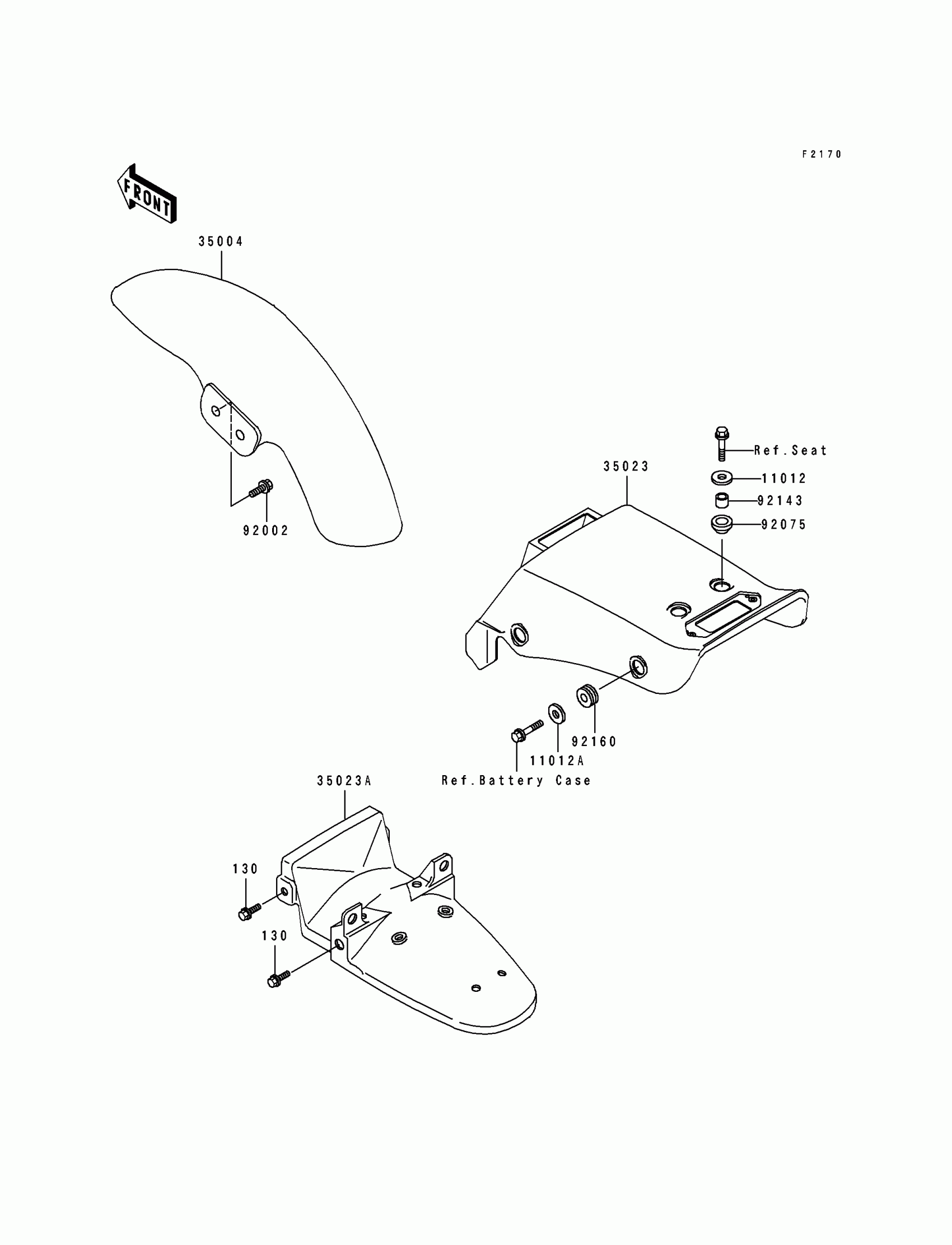

1994 Kawasaki Eliminator 250 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1599

1
Out of stock

11012A

CAP

11012-1600

1
Out of stock

35004

FENDER-FRONT,C.C.RED

35004-1208-L1

1
Out of stock

35023

FENDER-REAR,UPP,C.C.RED

35023-1200-L1

1
Out of stock

35023A

FENDER-REAR,LWR,C.C.RED

35023-1203-L1

1
Out of stock

92002

BOLT,FLANGED,8X16

92002-1200

1
Out of stock

92075

DAMPER

92075-1960

1
Out of stock

92143

COLLAR,9X15X13

92143-1127

1
Out of stock

92160

DAMPER

92160-1012

1
Out of stock

130

BOLT-FLANGED,6X14

130D0614

1
Out of stock
