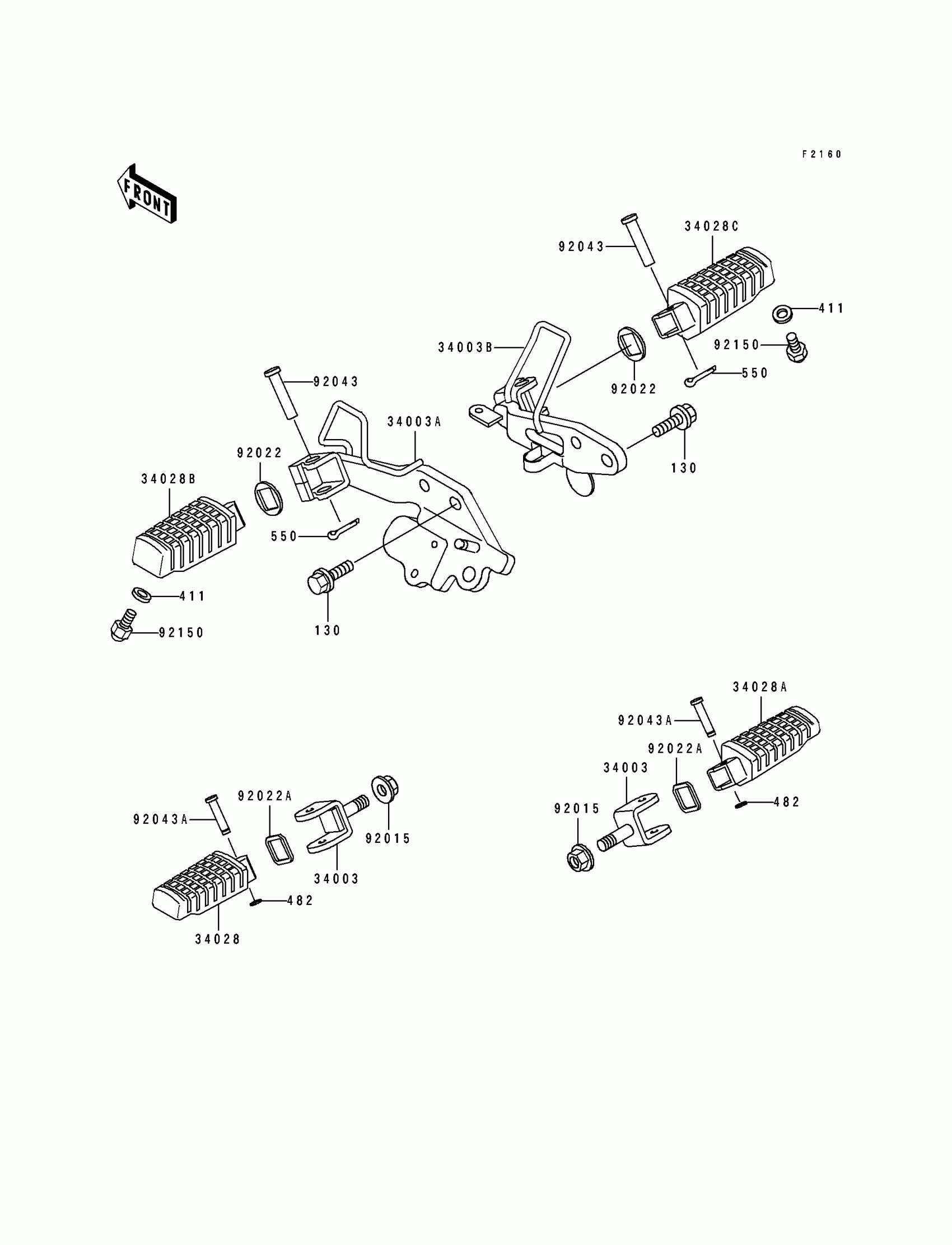

Kawasaki Eliminator 250 Footrests Diagram

Description

Price

34003

HOLDER-STEP,RR

34003-1302

Unavailable

34003A

HOLDER-STEP,FR,LH

34003-1305

$111.82

34003B

HOLDER-STEP,FR,RH

34003-1306

$79.58

34028

STEP,RR,LH

34028-1195

Unavailable

34028A

STEP,RR,RH

34028-1196

Unavailable

34028B

STEP,FR,LH

34028-1222

Unavailable

34028C

STEP,FR,RH

34028-1223

$35.98

92015

NUT,FLANGED,10MM

92015-1428

$3.81

92022

WASHER,STEP FITTING

92022-1314

$3.98

92022A

WASHER,STEP FITTING

92022-1797

$4.61

92043

PIN,8X35.5

92043-115

$9.22

92043A

PIN,6X30

92043-1327

$4.46

92150

BOLT,BANK SENSOR

92150-1114

$10.93

130

BOLT-FLANGED,10X25

130J1025

Unavailable

411

WASHER PLAIN

411F0600

$0.95

482

CIRCLIP-TYPE-E,5MM

482L5000

$1.04

550

PIN-COTTER,2.5X15

550D2515

$0.47
