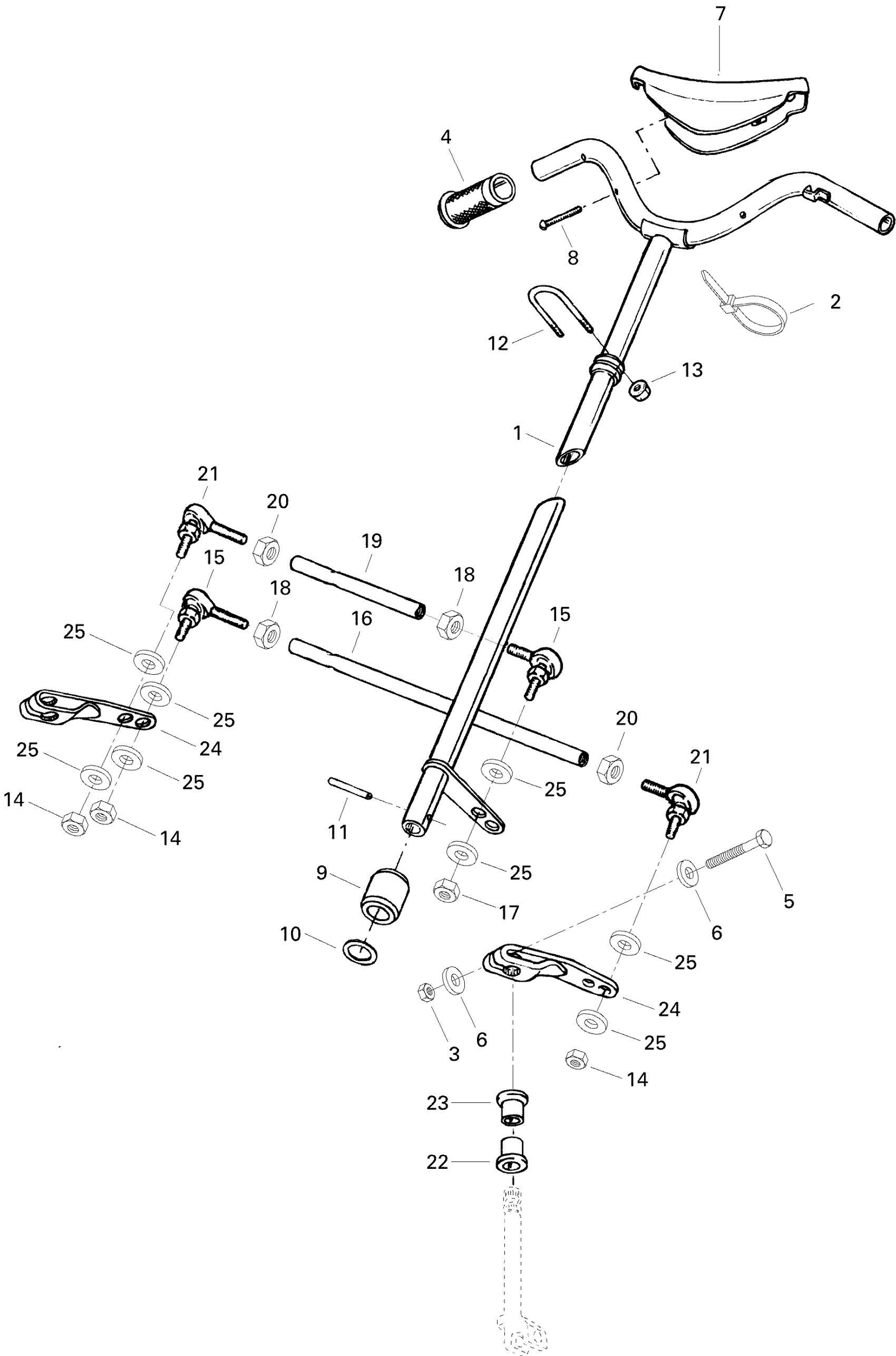

Ski-Doo Elan 247, 1996 Steering System Diagram

#

Description
Price

1

Handlebar

506092500

Unavailable

2

Tie-Rap 180 mm

414115200

$0.10

3

Hex. Nut 3/8-24

389807300

Unavailable

4

HANDLE GRIP - Call your local BRP dealership

572064100

Unavailable

5

Hex. Screw 3/8-24 x 2"

305408700

Unavailable

6

Flat Washer

399910100

Unavailable

7

Steering Padding

572048200

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Bushing Ass’y

580115400

Unavailable

10

Washer Isolation

506012000

Unavailable

11

Spirol Pin

372012200

Unavailable

12

«U» Clamp

414059100

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Elastic Flange Nut M10

232501416

$1.43

15

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

16

Lower Tie Rod (Long)

506121600

Unavailable

17

Elastic Flange Nut M10

232501416

$1.43

18

RH Threaded Hex. Jam Nut M10

732610010

$0.70

19

Upper Tie Rod (Short)

506121500

Unavailable

20

LH Threaded Hex. Jam Nut M10

250100016

$0.70

21

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

22

Lower Bushing

572061900

Unavailable

23

Upper Bushing

572062000

Unavailable

24

Steering Arm

506103000

Unavailable

25

HARD WASHER - Call your local BRP dealership | LTD

503125900

Unavailable
