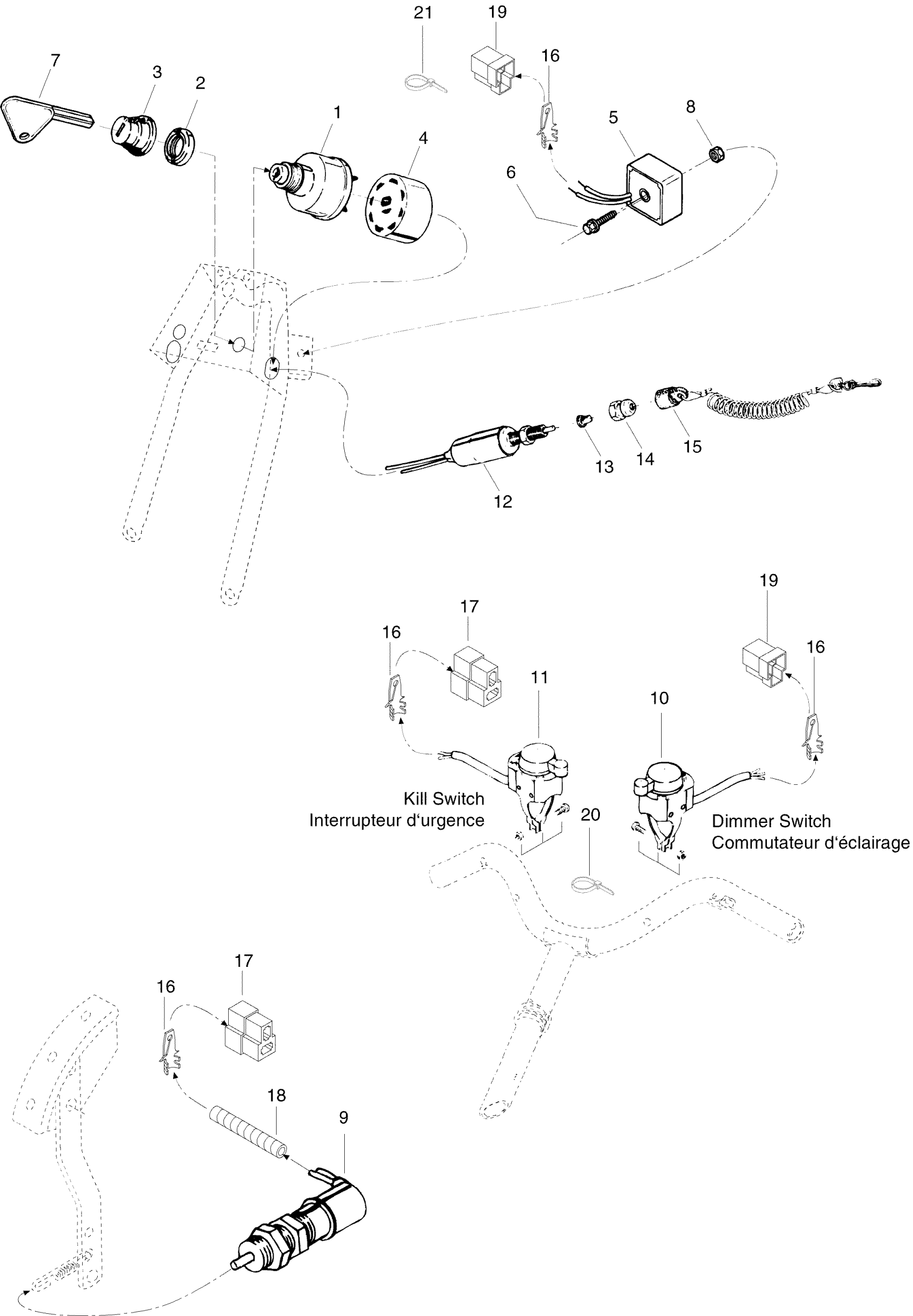

Ski-Doo Elan 247, 1996 Electrical System Diagram

#

Description
Price

1

IGNITION SWITCH - Call your local BRP dealership

410102500

Unavailable

2

FACE NUT - Call your local BRP dealership

410112100

Unavailable

3

Switch Boot

570013700

$10.49

4

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

5

Voltage Regulator

410908900

Unavailable

6

Hex. Flange Screw M6 X 35

207063544

$1.31

7

Blank Key

415129350

Unavailable

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

9

Brake Light Switch

414142200

Unavailable

10

Dimmer Switch | MXZ X 440 LC.

410105400

Unavailable

11

Kill Switch

515177454

Unavailable

12

Brake Switch

515175653

$17.88

13

Plunger Cap

570151100

$9.13

14

Switch Nut

515145900

$10.51

15

Cap Ass'y

515178283

$36.54

16

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

17

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

18

Tubing Helical | Formula 500. Formula 500 Deluxe.

410904000

Unavailable

19

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

20

Tie-Rap 180 mm

414115200

$0.10
