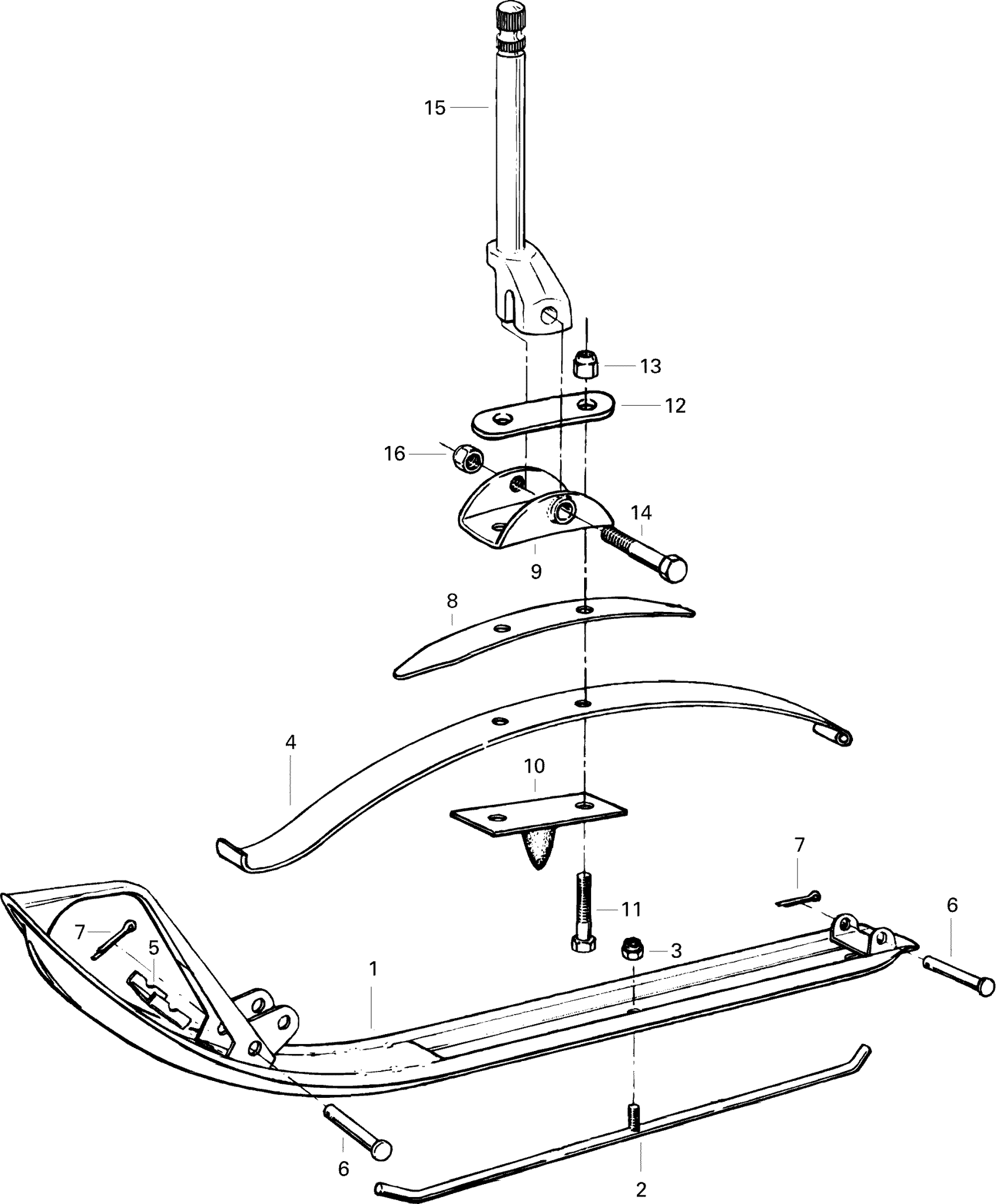

Ski-Doo Elan 247, 1996 Front Suspension and Ski Diagram

#

Description

Price

1

Ski

505061500

Unavailable

2

Runner Shoe

505061400

Unavailable

3

Elastic Locking Nut M10 X 1.5

233601416

$1.68

4

Main Leaf Spring

505026200

Unavailable

5

Spring Slider Cushion

505066800

Unavailable

6

Retainer Pin

414143600

Unavailable

7

Cotter Pin

371800200

$0.51

8

Aux. Leaf Spring

505026300

Unavailable

9

Spring Coupler

505040800

Unavailable

10

Rebound Leaf

560306100

Unavailable

11

Hex. Screw 3/8-24 x 1 1/4

301608400

Unavailable

12

Lock Tab

505038700

Unavailable

13

Hex. Nut 3/8-24

389807300

Unavailable

14

Hex. Screw 7/16-20 x 3 1/2

305313300

Unavailable

15

Ski Leg

506032300

Unavailable

16

Elastic Nut 7/16-20

398202600

Unavailable

17

Runner Carbide (Not Shown)

505061800

Unavailable
