2012 Kawasaki Edge R Fuel Tank Diagram

← All diagrams

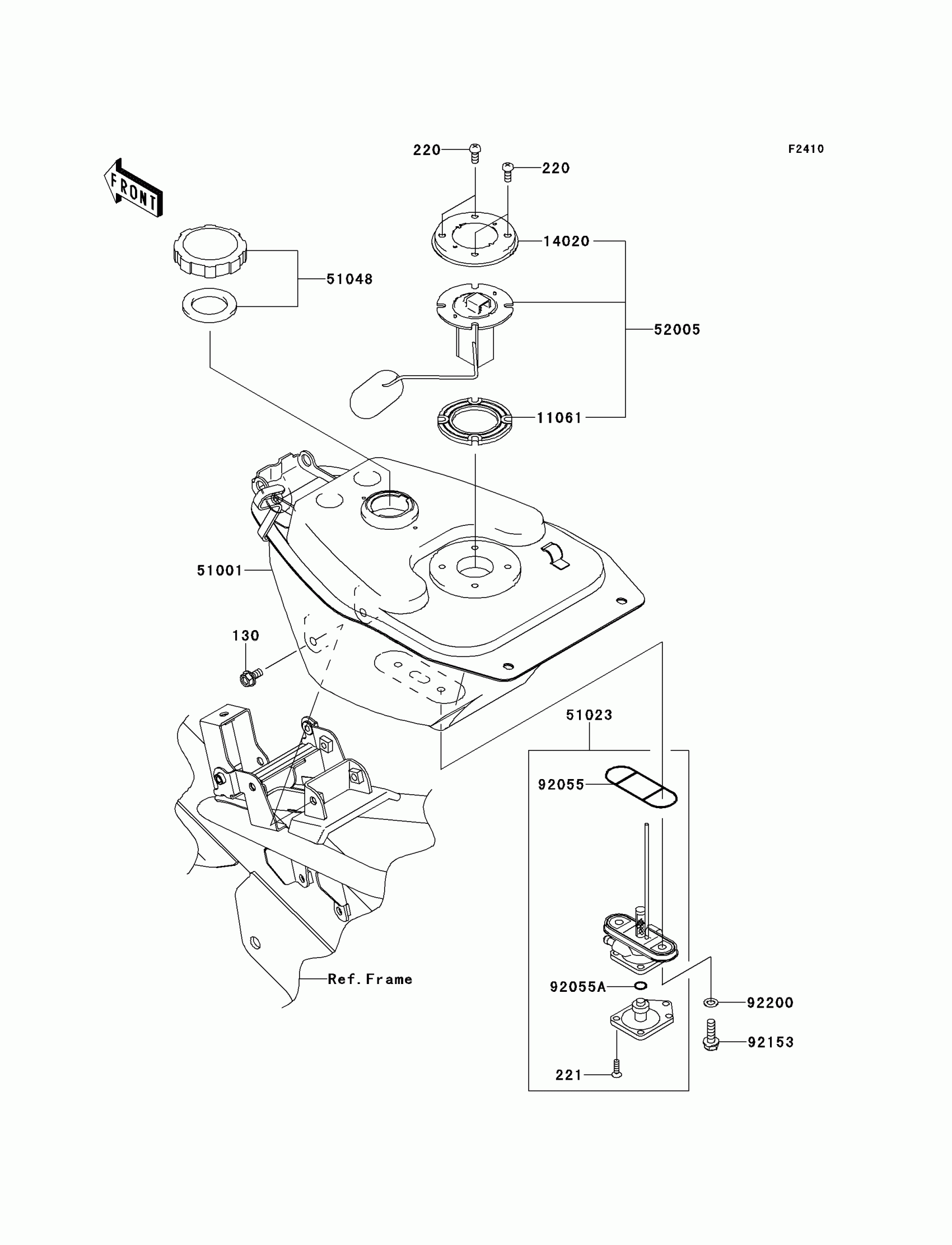

Find the part on the Fuel Tank diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Edge R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

220

1

$0.51

In stock

221

1

$3.24

In stock

11061

GASKET,FUEL GAUGE

11061-1125

1

$2.19

In stock

14020

RETAINER,FUEL GAUGE

14020-0001

1
Out of stock

51001

TANK-COMP-FUEL

51001-0115

1

$67.19

In stock

51023

TAP-ASSY,FUEL

51023-0038

1

$47.47

In stock

51048

CAP-ASSY-TANK

51048-1119

1
Out of stock

52005

GAUGE,FUEL

52005-0035

1

$35.79

In stock

92055

RING-O,FUEL TAP PACKING

92055-1586

1
Out of stock

92055A

RING-O

92055-1664

1

$4.15

In stock

92153

BOLT,FLANGED,6X20

92153-1195

1
Out of stock

92200

WASHER,6.5X11.5X0.8

92200-0177

1
Out of stock
