2012 Kawasaki Edge R Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

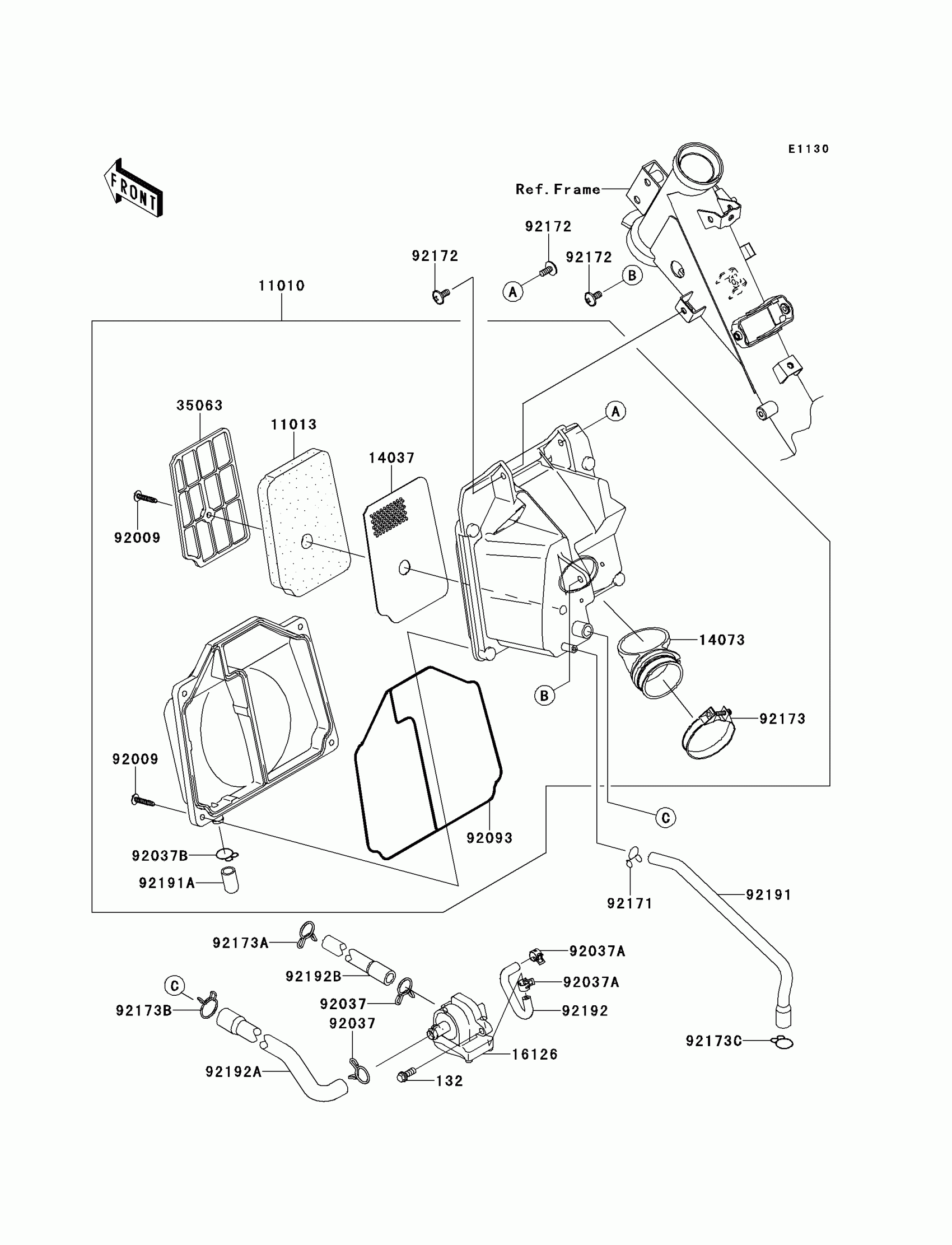

2012 Kawasaki Edge R Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.21

In stock

11010

FILTER-ASSY-AIR

11010-0725

1

$84.08

In stock

11013

ELEMENT-AIR FILTER

11013-1293

1

$4.49

In stock

14037

SCREEN,AIR FILTER

14037-1297

1

$2.59

In stock

14073

DUCT

14073-1810

1

$4.97

In stock

16126

VALVE,2ND-AIR

16126-0052

1

$74.79

In stock

35063

STAY,AIR FILTER

35063-1210

1

$2.69

In stock

92009

SCREW,5X25

92009-1986

1
Out of stock

92037

CLAMP

92037-1593

1

$5.42

In stock

92037A

CLAMP

92037-1601

1

$12.32

In stock

92037B

CLAMP,14.5MM

92037-1900

1

$3.87

In stock

92093

SEAL,AIR FILTER

92093-1568

1
Out of stock

92171

CLAMP

92171-1521

1

$1.81

In stock

92172

SCREW,6X14

92172-0055

1

$0.44

In stock

92173

CLAMP

92173-0784

1

$2.44

In stock

92173A

CLAMP,14MM

92173-0790

1

$1.10

In stock

92173B

CLAMP,20MM

92173-0795

1

$1.44

In stock

92173C

CLAMP,15MM

92173-0814

1

$5.76

In stock

92191

TUBE,BREATHER

92191-1684

1
Out of stock

92191A

TUBE,DRAIN

92191-1685

1
Out of stock

92192

TUBE,FITTING-ACV

92192-0806

1
Out of stock

92192A

TUBE,A/C-ACV

92192-0807

1
Out of stock

92192B

TUBE,ACV-HEAD

92192-1102

1
Out of stock
