2012 Kawasaki Edge R Carburetor Diagram

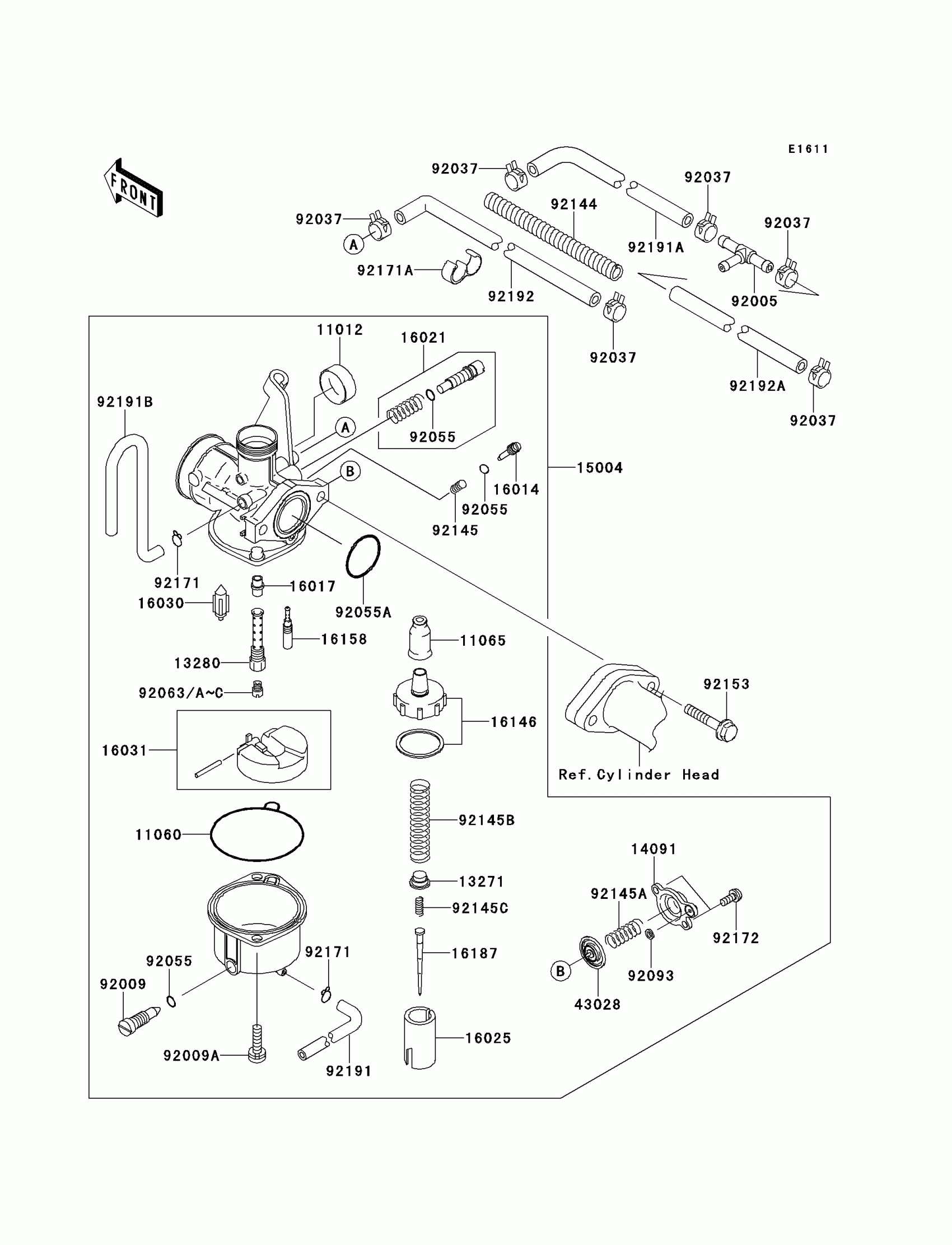

Find the part on the Carburetor diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
11012
CAP,CHOKE
11012-1940
1
Out of stock
16030
VALVE-FLOAT,FLOAT
16030-0002
1
Out of stock
92005
FITTING
92005-0112
1
Out of stock
92009
SCREW,DRAIN
92009-1057
1
Out of stock
92009A
SCREW
92009-1750
1
Out of stock
92153
BOLT,FLANGED-SMALL,6X28
92153-1309
1
Out of stock
92191B
TUBE,3.5X6.5X350
92191-1768
1
Out of stock
92192
TUBE,5X9X290
92192-0804
1
Out of stock
92192A
TUBE,5X9X110
92192-0805
1
Out of stock
