2012 Kawasaki Edge R Front Master Cylinder Diagram

← All diagrams

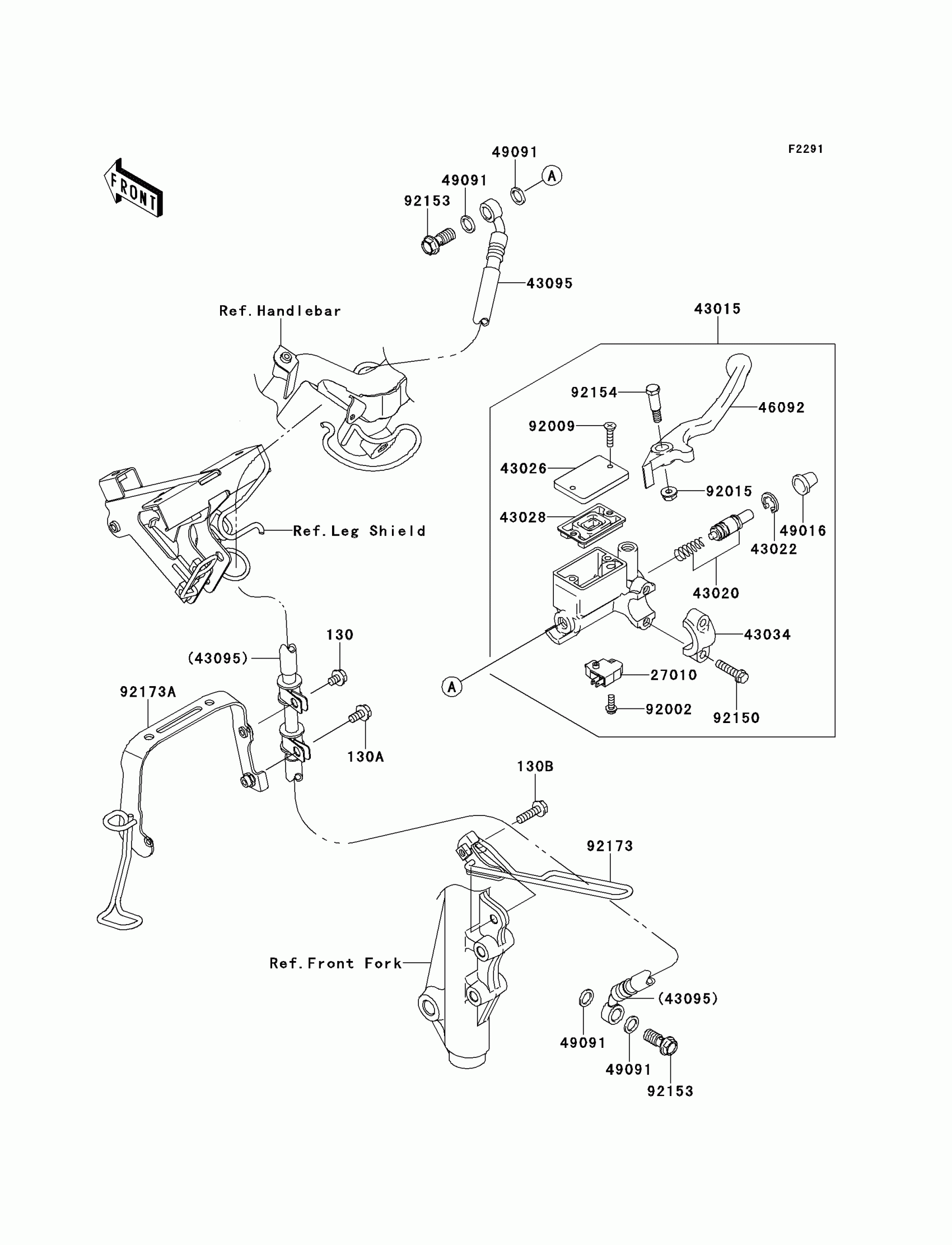

Find the part on the Front Master Cylinder diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Edge R Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X8

130BB0608

1

$5.31

In stock

130A

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

130B

BOLT-FLANGED,6X22

130BB0622

1

$2.92

In stock

27010

SWITCH,BRAKE

27010-0025

1

$33.39

In stock

43015

1

$113.46

In stock

43020

PISTON-COMP-BRAKE

43020-1095

1

$52.23

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-1074

1

$23.33

In stock

43028

DIAPHRAGM

43028-1061

1

$12.79

In stock

43034

HOLDER-BRAKE

43034-1110

1

$15.29

In stock

43095

HOSE-BRAKE,FR

43095-0643

1

$45.38

In stock

46092

LEVER-GRIP,FR BRAKE

46092-0553

1

$19.51

In stock

49016

1

$6.90

In stock

49091

1

$1.81

In stock

92002

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1

$4.37

In stock

92150

BOLT

92150-1452

1

$4.37

In stock

92153

BOLT,OIL,L=23

92153-0029

1
Out of stock

92154

BOLT,FR BRAKE LEVER

92154-0882

1

$12.85

In stock

92173

CLAMP

92173-0760

1

$4.46

In stock

92173A

CLAMP

92173-0761

1

$19.64

In stock
