2012 Kawasaki Edge R Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

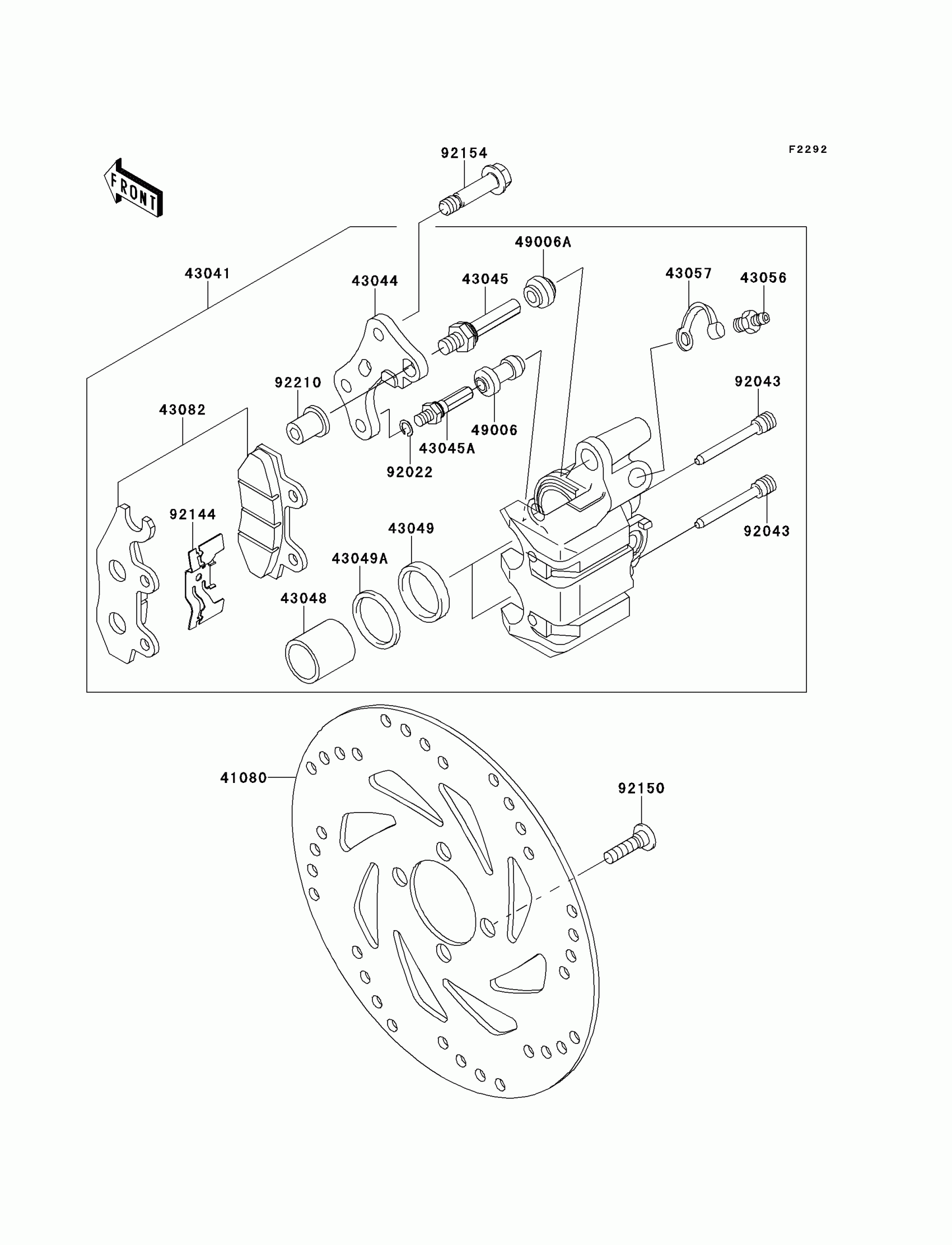

2012 Kawasaki Edge R Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR

41080-0566

1

$99.99

In stock

43041

CALIPER-ASSY,BLACK

43041-0322-25S

1

$159.73

In stock

43044

HOLDER-COMP-CALIPER

43044-0069

1

$45.30

In stock

43045

SHAFT-CALIPER

43045-0007

1

$12.08

In stock

43045A

SHAFT-CALIPER

43045-1010

1

$19.49

In stock

43048

PISTON-CALIPER

43048-1066

1

$74.44

In stock

43049

PACKING

43049-1063

1

$6.39

In stock

43049A

PACKING

43049-1064

1

$4.88

In stock

43056

BREATHER-BRAKE

43056-1056

1

$11.32

In stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43082

PAD-ASSY-BRAKE

43082-0085

1

$55.93

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

92022

WASHER,WAVE

92022-1373

1

$3.53

In stock

92043

PIN,HANGER

92043-1416

1

$14.60

In stock

92144

SPRING,PAD

92144-1847

1

$30.92

In stock

92150

BOLT,8X30

92150-1728

1

$3.72

In stock

92154

BOLT,FLANGED,8X36

92154-0334

1

$4.19

In stock

92210

NUT

92210-0765

1
Out of stock
