2012 Kawasaki Edge R Brake Pedal Diagram

← All diagrams

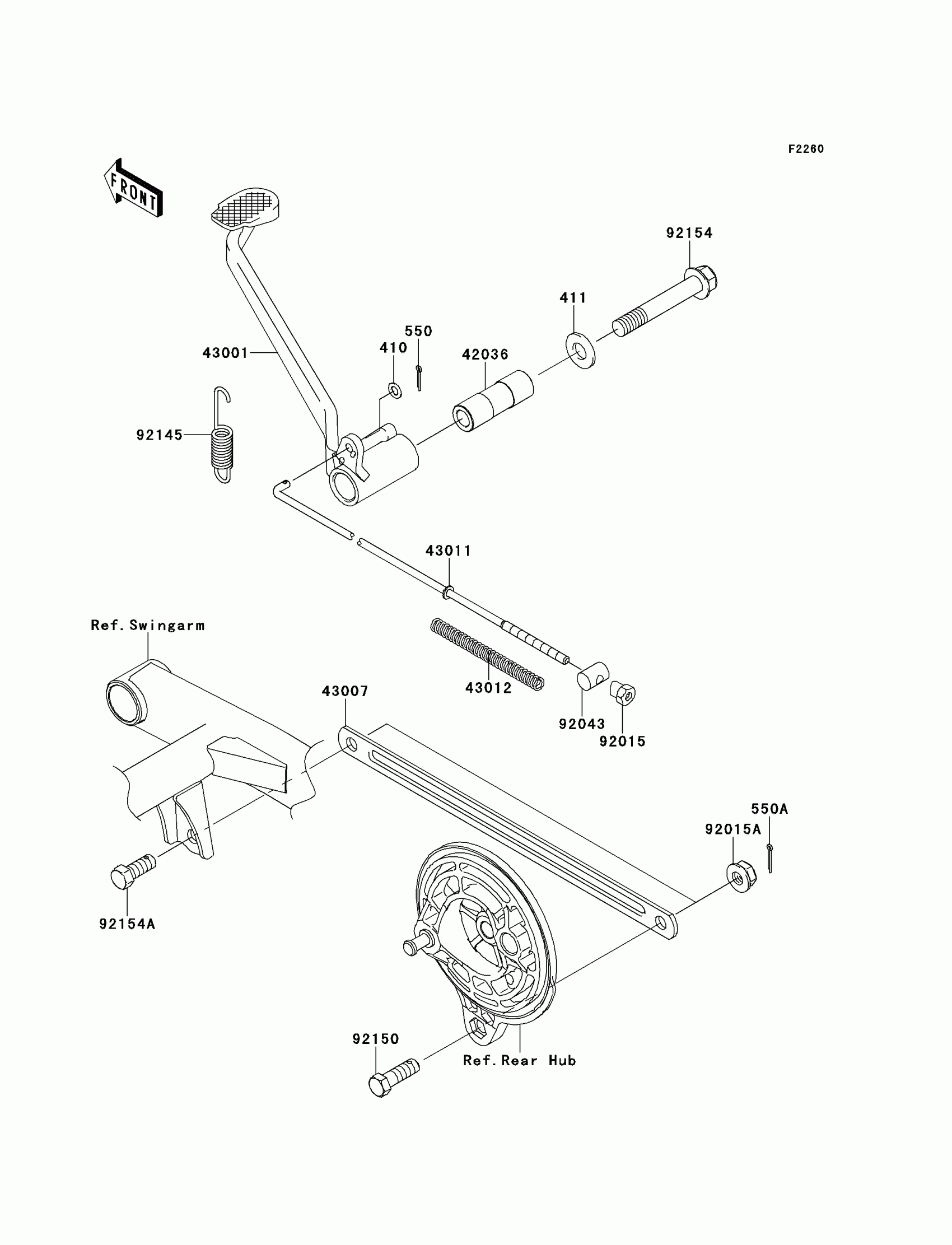

Find the part on the Brake Pedal diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Edge R Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

WASHER-PLAIN-SMALL

410AA0600

1

$1.19

In stock

411

WASHER-PLAIN,12MM

411AA1200

1

$0.93

In stock

550

PIN-COTTER,2.0X15

550AA2015

1

$0.94

In stock

550A

PIN-COTTER,2.0X18

550AA2018

1

$2.08

In stock

42036

SLEEVE

42036-1332

1

$9.12

In stock

43001

LEVER-BRAKE,PEDAL

43001-0706

1

$25.76

In stock

43007

ROD-TORQUE

43007-0019

1

$4.19

In stock

43011

ROD-BRAKE

43011-0553

1

$14.64

In stock

43012

SPRING,BRAKE ROD

43012-001

1

$3.69

In stock

92015

NUT,BRAKE ROD

92015-042

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1428

1

$3.97

In stock

92043

PIN,BRAKE ROD

92043-0065

1

$5.17

In stock

92145

SPRING,RETURN

92145-0770

1

$2.00

In stock

92150

BOLT,10X32

92150-1872

1

$5.42

In stock

92154

BOLT,FLANGED,12X75

92154-0328

1

$8.05

In stock

92154A

BOLT,10X25

92154-0767

1

$4.68

In stock
