1983 Kawasaki Eddie Lawson Replica Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 1983 Kawasaki Eddie Lawson Replica, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

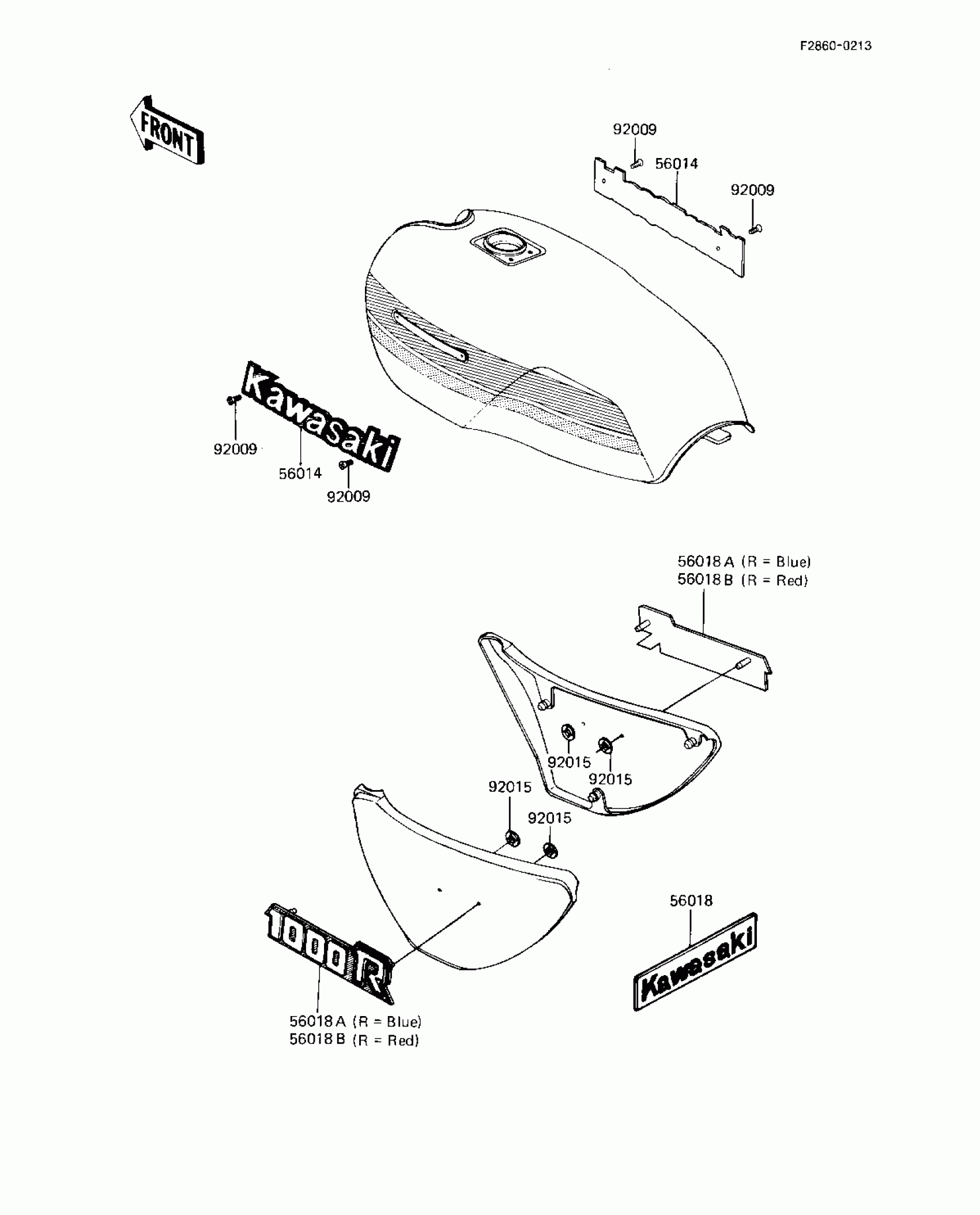

1983 Kawasaki Eddie Lawson Replica Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56014

EMBLEM,FUEL TANK

56014-1043

1
Out of stock

56018

MARK,SEAT COVER,KAWASAKI

56018-1208

1
Out of stock

56018B

MARK,SIDE COVER,1000R

56018-1383

1
Out of stock

92009

SCREW-CSK-CROS

221C0306

1
Out of stock

92015

NUT,PUSH,3MM

92018-005

1
Out of stock
← Frame Fittings Seat/seat Cover →
