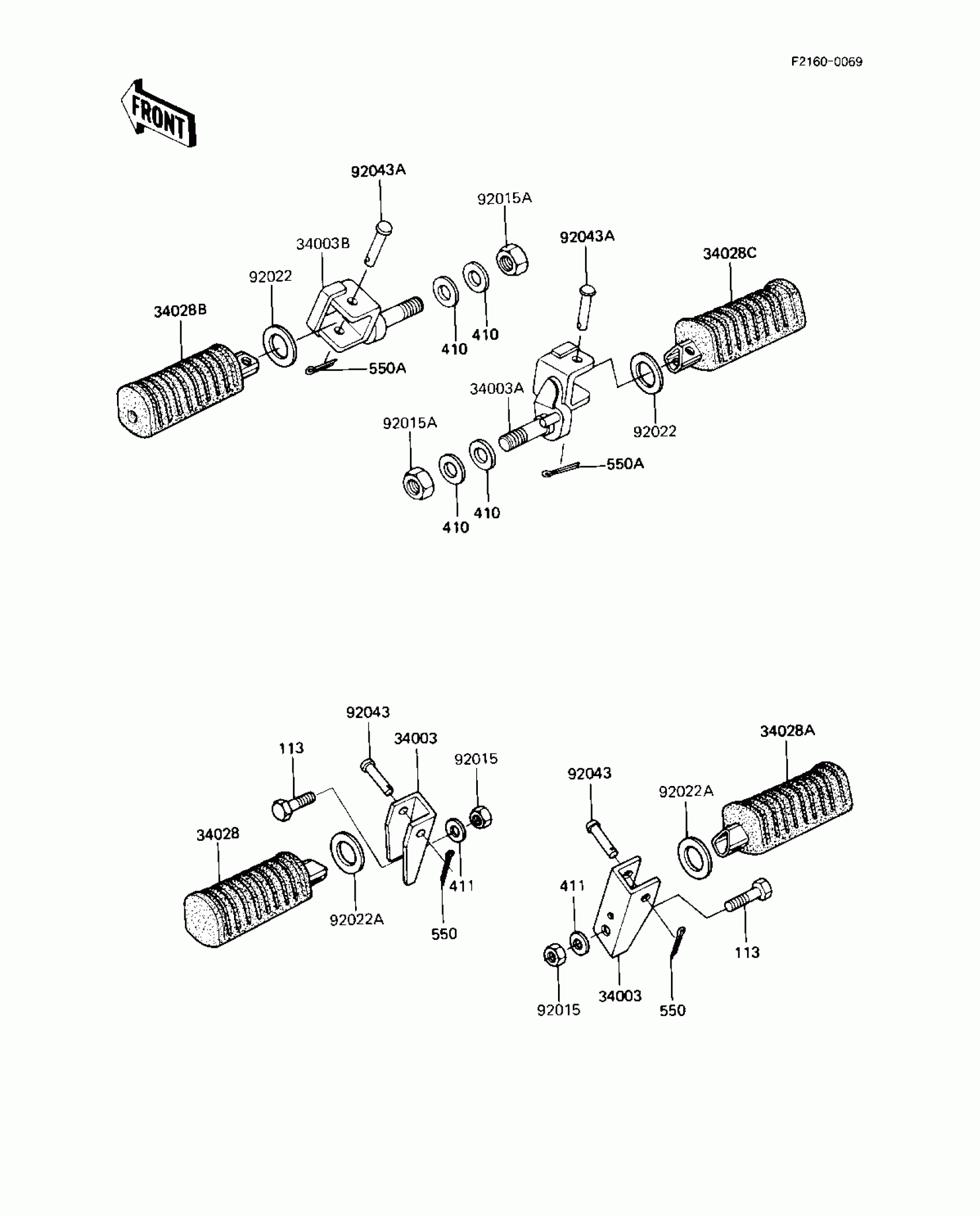

Kawasaki Eddie Lawson Replica FOOTRESTS Diagram

Description

Price

34003

HOLDER,REAR FOOTREST

34003-1025

$35.45

34003B

HOLDER-STEP,FR,LH

34003-1114

$156.35

34028

STEP,RR,LH,BLACK

34028-1041

Unavailable

34028B

STEP-ASSY,FR,LH,BLACK

34027-1108

Unavailable

34028C

STEP-ASSY,FR,RH,BLACK

34027-1109

$50.63

92015

NUT,LOCK,10MM,BLACK

92015-1188

$4.67

92015A

NUT-LOCK,12MM

92019-009

$7.20

92022

WASHER,25X36X2.3,BLAC

92022-1319

Unavailable

92022A

WASHER,22.5X30X2.6,B

92022-1320

Unavailable

92043

PIN,6X28

92043-1464

$6.18

92043A

PIN,8X35.5

92043-115

$9.22

113

BOLT-SMALL-FINE,10X40

113J1040

Unavailable

410

WASHER-PLAIN-SMALL,12MM,BLACK

410F1200

Unavailable

411

WASHER

411F1000

Unavailable

550

PIN-COTTER,2.0X12

550D2012

$0.89

550A

PIN-COTTER,2.5X15

550D2515

$0.47
