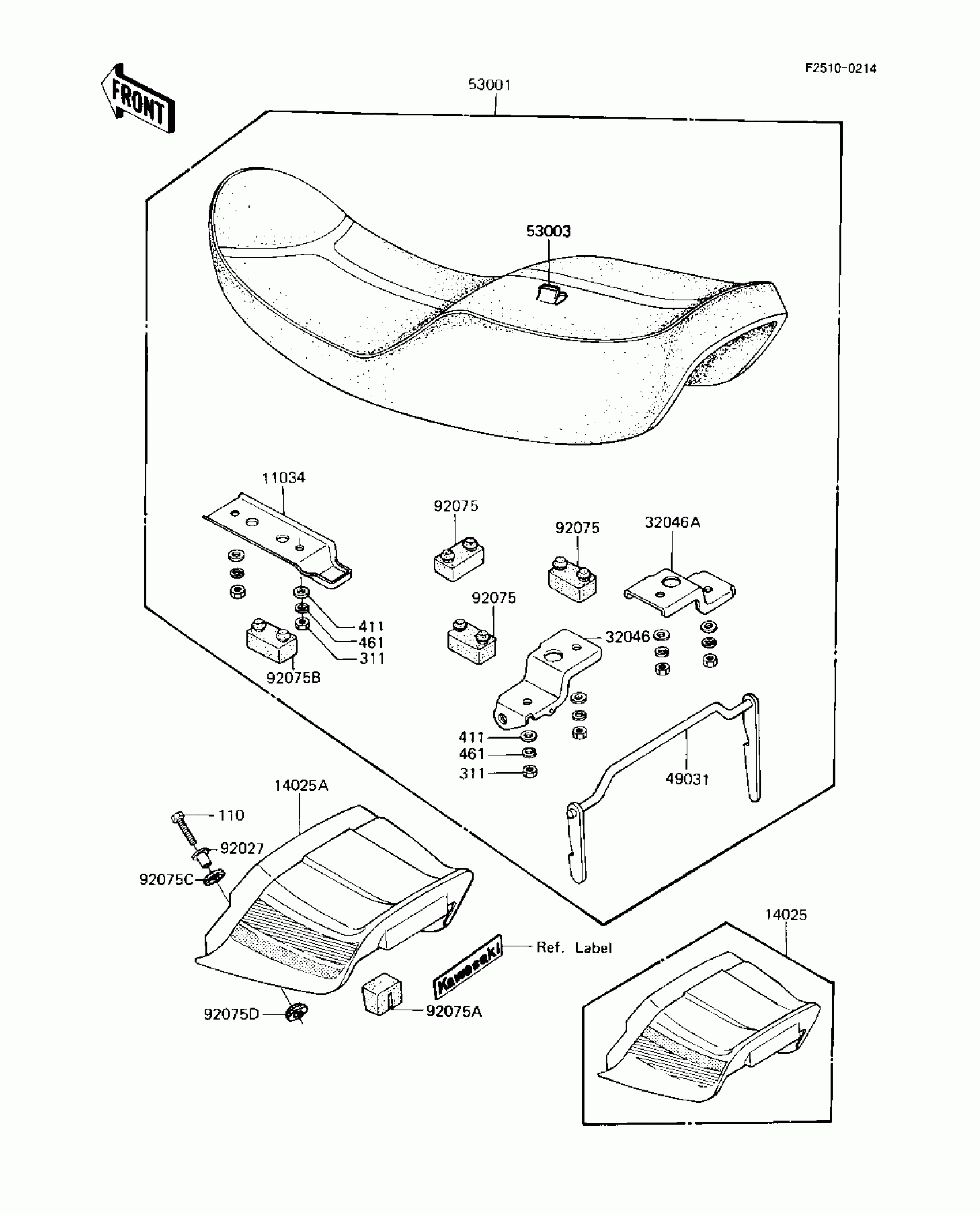

Kawasaki Eddie Lawson Replica SEAT/SEAT COVER Diagram

#

Description

Price

11034

BRACKET,SEAT,FR

11034-1868

Unavailable

14025A

COVER,SEAT,L.GREEN

14025-5104-7F

Unavailable

32046

BRACKET-SEAT,LH

32046-1089

Unavailable

32046A

BRACKET-SEAT,RH

32046-1090

Unavailable

49031

LATCH,SEAT

49031-1006

Unavailable

53001

SEAT-ASSY

53001-1234

Unavailable

53003

LEATHER,SEAT

53003-1040

Unavailable

92027

COLLAR,L=13.1

92027-251

Unavailable

92075

DAMPER,SEAT,RR

92075-1276

Unavailable

92075A

DAMPER,SEAT

92075-1313

Unavailable

92075B

DAMPER RUBBER,SEAT

92075-139

$8.72

92075C

RUBBER,FENDER COVER

92075-174

$3.65

92075D

DAMPER,FEMALE

92075-175

$3.35

110

BOLT-UPSET,6X20

112G0620

Unavailable

311

NUT 6MM

311B0600

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
