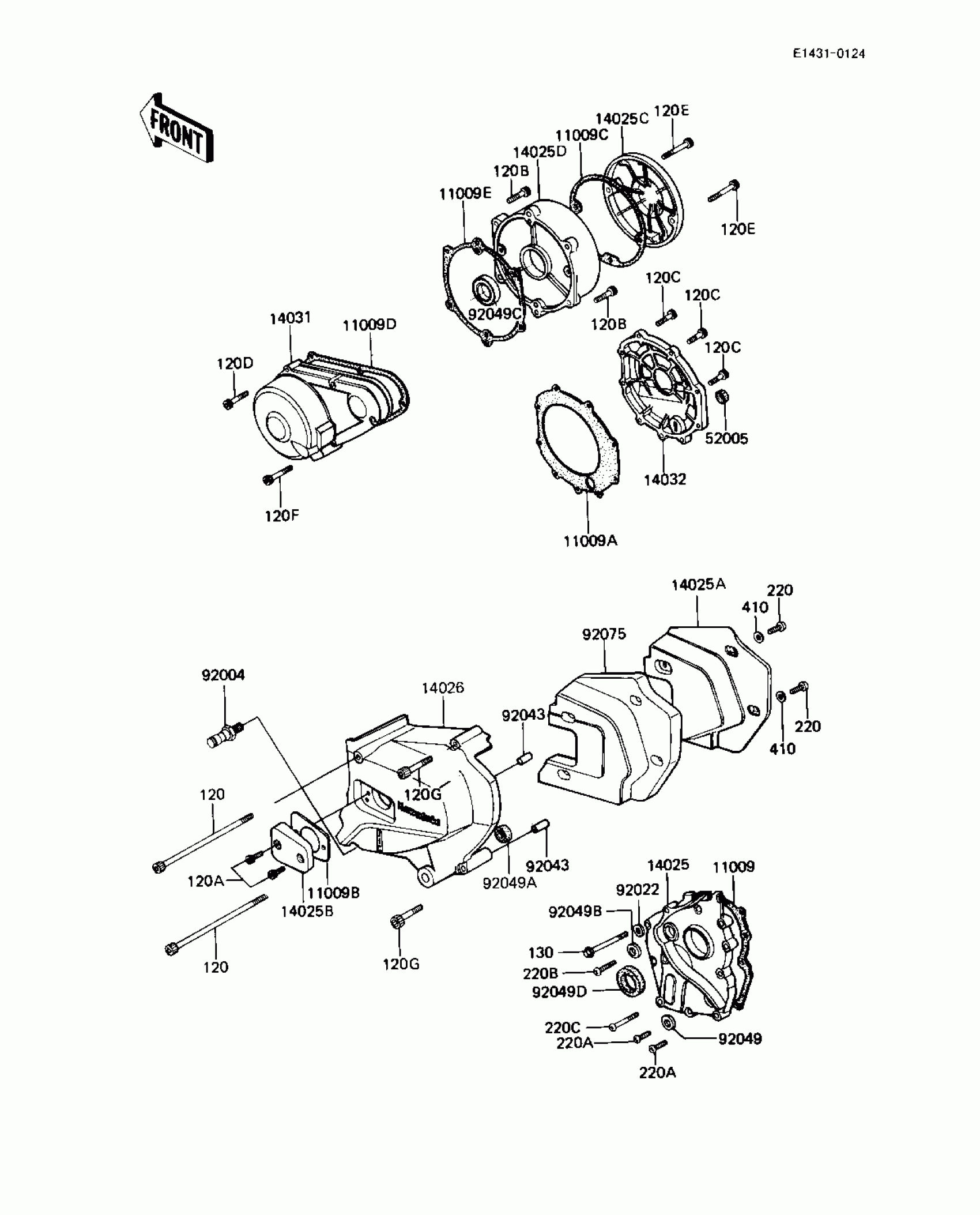

Kawasaki Eddie Lawson Replica ENGINE COVERS Diagram

#

Description
Price

11009

GASKET,TRANSMISSION COVER

11060-1069

$13.39

11009A

GASKET,CLUTCH COVER

11060-1070

Unavailable

11009B

GASKET,CLUTCH ADJUSTING COVER

11060-1073

$4.39

11009C

GASKET,PULSING COIL COVER

11060-1072

$12.63

11009D

GASKET,GENERATOR COVER

11060-1075

Unavailable

11009E

GASKET,RH ENGINE COVER

11060-1071

Unavailable

14025

COVER,TRANSMISSION

14025-1240

$139.08

14025B

COVER,CLUTCH RELEASES

14025-1409

Unavailable

14025C

COVER

14025-1610

Unavailable

14025D

COVER,ENGINE,RH,BLACK

14025-1426

Unavailable

14026

COVER-CHAIN,BLACK

14026-1066

Unavailable

14031

COVER-GENERATOR,BLACK

14031-1082

Unavailable

14032

COVER-CLUTCH,BLACK

14032-1075

Unavailable

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

92004

STUD,CHANGE PEDAL PIV

92004-1034

Unavailable

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92049

SEAL-OIL,SB12205

92049-004

$7.63

92049A

SEAL-OIL,CLUTCH RELEASE

92049-1003

$8.29

92049B

SEAL-OIL,SC32487

92049-1033

$15.84

92049C

SEAL-OIL,SC32487

92049-1033

$15.84

92049D

SEAL-OIL,AE2343F0

92049-1070

$12.57

92075

DAMPER,SOUND

92075-1269

Unavailable

120

BOLT-SOCKET,6X125,BLA

120S06125

Unavailable

120A

BOLT-SOCKET,6X14

120S0614

Unavailable

120B

BOLT,SOCKET,6X22

92002-1326

Unavailable

120C

BOLT-SOCKET,6X25,BLACK

120S0625

Unavailable

120D

BOLT-SOCKET,6X30

120S0630

Unavailable

120E

BOLT-SOCKET,6X35,BLACK

120S0635

Unavailable

120F

BOLT-SOCKET,6X40,BLACK

120S0640

Unavailable

120G

BOLT-SOCKET,6X70,BLAC

120S0670

Unavailable

130

BOLT-FLANGED,6X55

130G0655

Unavailable

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

220A

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

220B

SCREW PAN HEAD 6X28

220B0628

Unavailable

220C

SCREW PAN HEAD 6X40

220B0640

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03
