1988 Yamaha Enduro (DT50U) Meter Diagram

← All diagrams

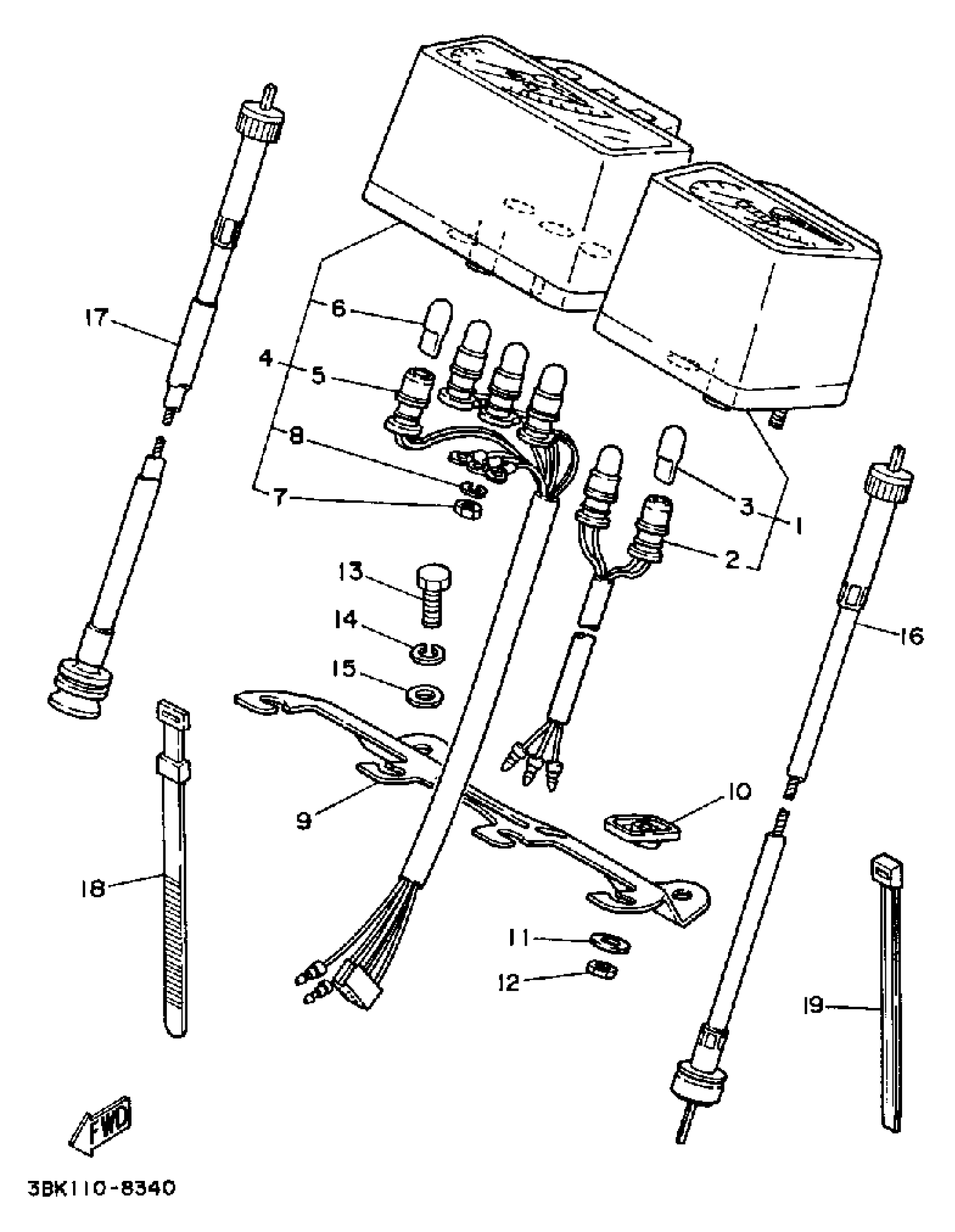

Find the part on the Meter diagram for your 1988 Yamaha Enduro (DT50U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha Enduro (DT50U) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEDOMETER ASSEMBLY

3BK-83510-00-00

1
Out of stock

2

. SOCKET, METER

3BK-83536-00-00

1
Out of stock

3

BULB (6V 3W)

4N0-83516-00-00

1
Out of stock

4

TACHOMETER ASSEMBLY

3BK-83540-00-00

1
Out of stock

5

. SOCKET CORD ASSEMBLY

3BK-83509-00-00

1
Out of stock

6

BULB (6V 3W)

4N0-83516-00-00

1
Out of stock

7

NUT, HEXAGON SMALL

95304-03700-00

1
Out of stock

8

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

9

BRACKET, METER

54A-83519-00-00

1
Out of stock

10

DAMPER

17W-83523-00-00

1
Out of stock

11

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

12

NUT, HEXAGON

95317-05600-00

1

$1.10

In stock

13

BOLT, HEXAGON

97017-06016-00

1

$6.18

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

16

SPEEDOMETER CABLE

17W-83550-01-00

1
Out of stock

17

TACHOMETER CABLE ASSY

37A-83560-01-00

—
Out of stock

18

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

19

BAND

1UA-82591-00-00

—
Out of stock
← Headlight Starter →
