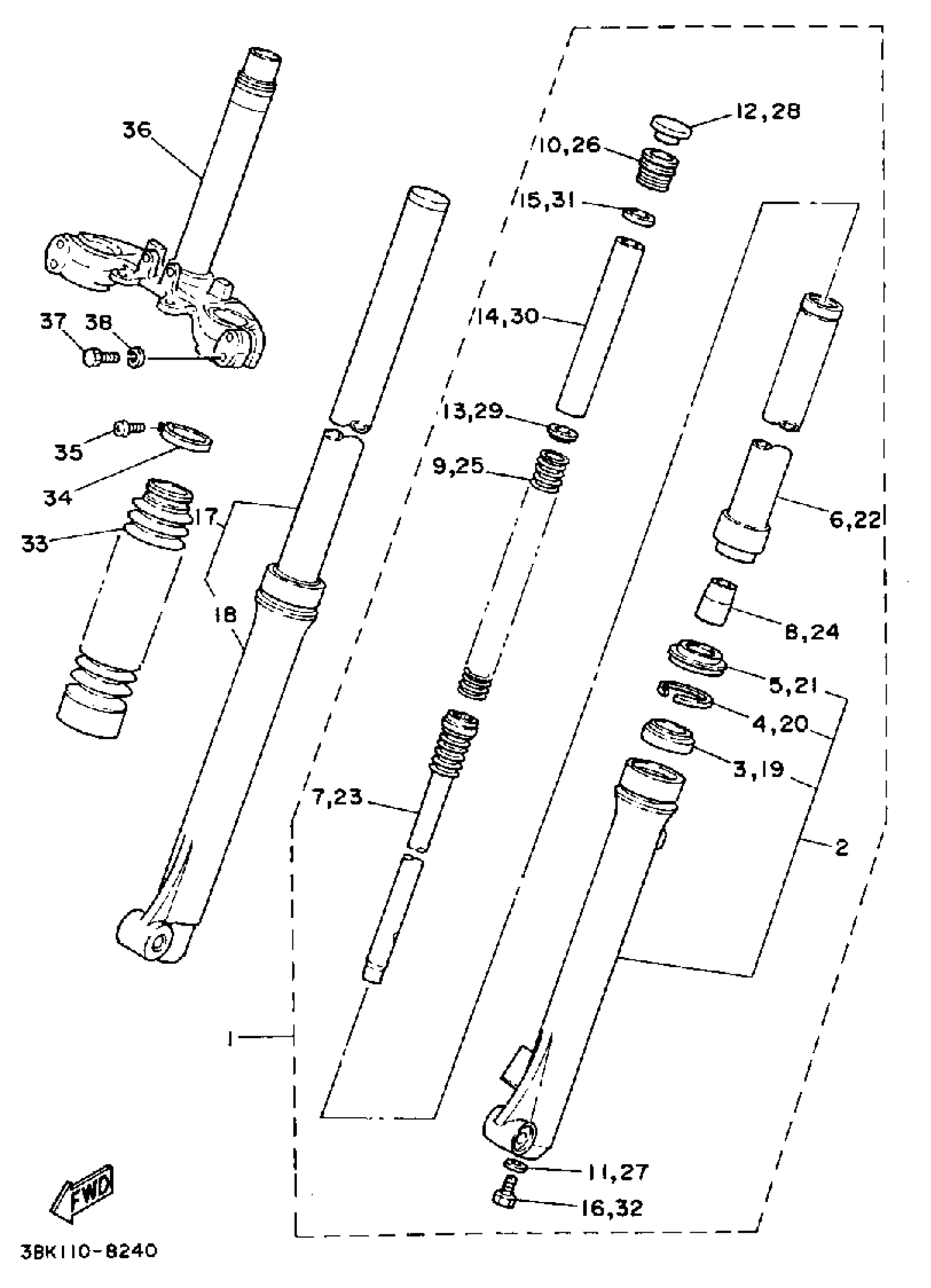

Yamaha DT50LC (DT50W) 1988 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY LH

3BK-23102-00-00

Unavailable

2

. OUTER TUBE COMP LH

33J-23106-00-38

Unavailable

3

OIL SEAL

33J-23145-00-00

$17.93

4

RING, SNAP

3V3-23156-00-00

$6.15

5

SEAL, DUST

4KN-23144-00-00

$14.59

6

INNER TUBE COMP.

17W-23110-00-00

Unavailable

7

. CYLINDER, COMP

17W-23170-00-00

Unavailable

8

SPINDLE

2K5-23173-00-00

$30.89

9

. SPRING, FRONT FORK

17W-23141-00-00

Unavailable

10

BOLT, CAP

1X0-23111-00-00

Unavailable

11

PACKING(O-RING)

146-23114-00-00

$15.55

12

CAP

1X0-23168-00-00

$4.38

13

. SEAT, SPRING UPPER

256-23142-60-00

Unavailable

14

. SPACER

17W-23118-00-00

Unavailable

15

GASKET

509-23158-L0-00

$13.39

16

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

17

FRONT FORK ASSEMBLY RH

3BK-23103-00-00

Unavailable

18

. OUTTER TUBE COMP R

33J-23107-00-38

Unavailable

19

OIL SEAL

33J-23145-00-00

$17.93

20

RING, SNAP

3V3-23156-00-00

$6.15

21

SEAL, DUST

4KN-23144-00-00

$14.59

22

INNER TUBE COMP.

17W-23110-00-00

Unavailable

23

. CYLINDER, COMP

17W-23170-00-00

Unavailable

24

SPINDLE

2K5-23173-00-00

$30.89

25

. SPRING, FRONT FORK

17W-23141-00-00

Unavailable

26

BOLT, CAP

1X0-23111-00-00

Unavailable

27

PACKING(O-RING)

146-23114-00-00

$15.55

28

CAP

1X0-23168-00-00

$4.38

29

. SEAT, SPRING UPPER

256-23142-60-00

Unavailable

30

. SPACER

17W-23118-00-00

Unavailable

31

GASKET

509-23158-L0-00

$13.39

32

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

33

BOOT (RED)

33J-23191-00-00

Unavailable

33

BOOT (COMP YELLOW)

33J-23191-20-00

Unavailable

34

BAND, BOOT

482-23192-40-00

Unavailable

35

SCREW, PAN HEAD

98517-04016-00

Unavailable

36

UNDER BRACKET COMP.

17W-23340-00-33

Unavailable

37

BOLT

17W-23346-00-00

Unavailable

38

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
