1988 Yamaha Enduro (DT50U) Front Fork Diagram

← All diagrams

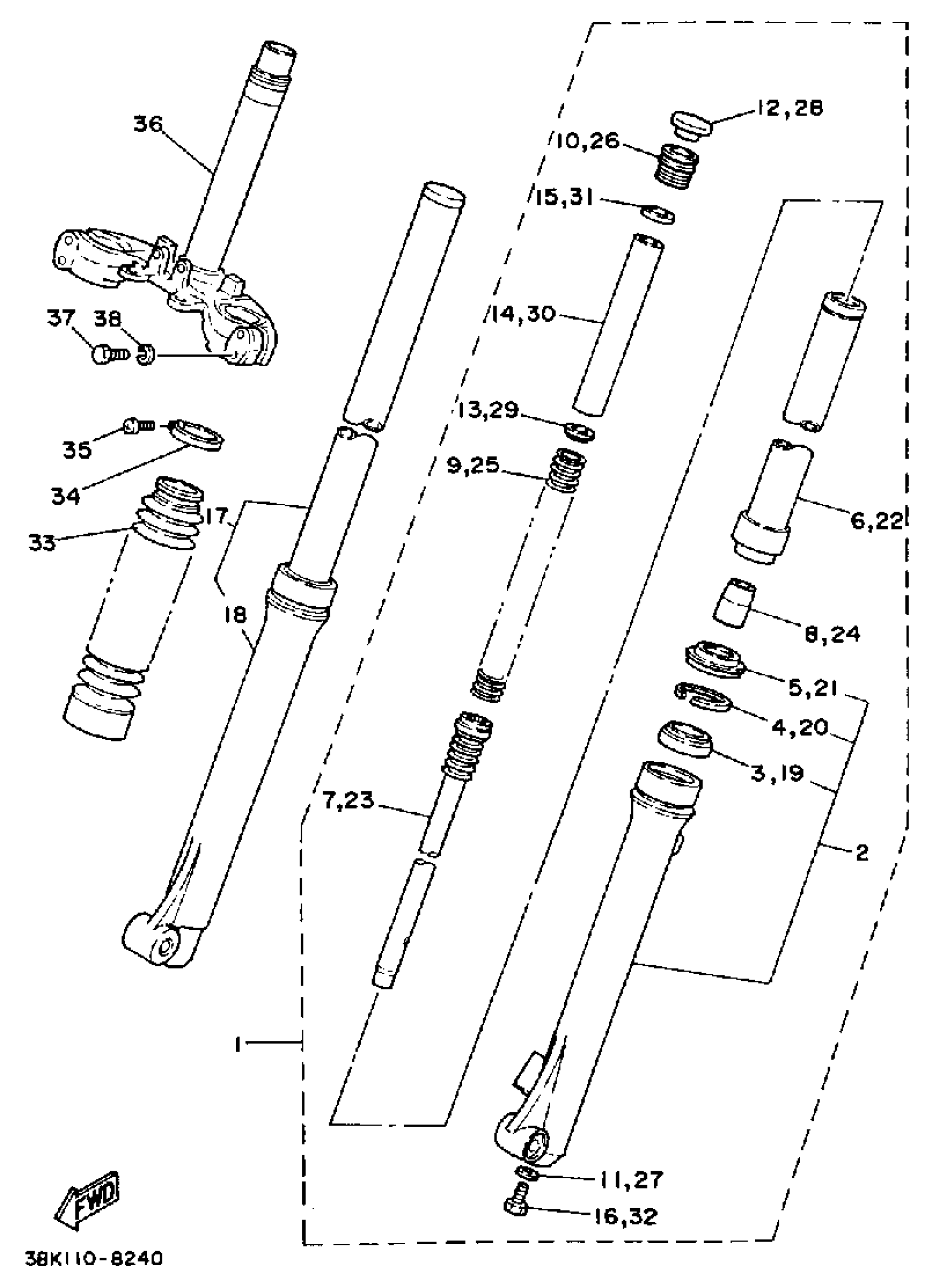

Find the part on the Front Fork diagram for your 1988 Yamaha Enduro (DT50U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha Enduro (DT50U) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY LH

3BK-23102-00-00

1
Out of stock

2

. OUTER TUBE COMP LH

33J-23106-00-38

1
Out of stock

3

OIL SEAL

33J-23145-00-00

1
Out of stock

4

RING, SNAP

3V3-23156-00-00

1
Out of stock

5

SEAL, DUST

4KN-23144-00-00

1
Out of stock

6

INNER TUBE COMP.

17W-23110-00-00

—

$190.82

In stock

7

. CYLINDER, COMP

17W-23170-00-00

1
Out of stock

8

SPINDLE

2K5-23173-00-00

1
Out of stock

9

. SPRING, FRONT FORK

17W-23141-00-00

1
Out of stock

10

BOLT, CAP

1X0-23111-00-00

—
Out of stock

11

PACKING(O-RING)

146-23114-00-00

1
Out of stock

12

CAP

1X0-23168-00-00

1
Out of stock

13

. SEAT, SPRING UPPER

256-23142-60-00

1
Out of stock

14

. SPACER

17W-23118-00-00

1
Out of stock

15

GASKET

509-23158-L0-00

1

$14.34

In stock

16

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

17

FRONT FORK ASSEMBLY RH

3BK-23103-00-00

1
Out of stock

18

. OUTTER TUBE COMP R

33J-23107-00-38

1
Out of stock

19

OIL SEAL

33J-23145-00-00

1
Out of stock

20

RING, SNAP

3V3-23156-00-00

1
Out of stock

21

SEAL, DUST

4KN-23144-00-00

1
Out of stock

22

INNER TUBE COMP.

17W-23110-00-00

—

$190.82

In stock

23

. CYLINDER, COMP

17W-23170-00-00

1
Out of stock

24

SPINDLE

2K5-23173-00-00

1
Out of stock

25

. SPRING, FRONT FORK

17W-23141-00-00

1
Out of stock

26

BOLT, CAP

1X0-23111-00-00

—
Out of stock

27

PACKING(O-RING)

146-23114-00-00

1
Out of stock

28

CAP

1X0-23168-00-00

1
Out of stock

29

. SEAT, SPRING UPPER

256-23142-60-00

1
Out of stock

30

. SPACER

17W-23118-00-00

1
Out of stock

31

GASKET

509-23158-L0-00

1

$14.34

In stock

32

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

33

BOOT (RED)

33J-23191-00-00

1
Out of stock

33

BOOT (COMP YELLOW)

33J-23191-20-00

1
Out of stock

34

BAND, BOOT

482-23192-40-00

—
Out of stock

35

SCREW, PAN HEAD

98517-04016-00

—
Out of stock

36

UNDER BRACKET COMP.

17W-23340-00-33

—

$266.58

In stock

37

BOLT

17W-23346-00-00

1
Out of stock

38

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
