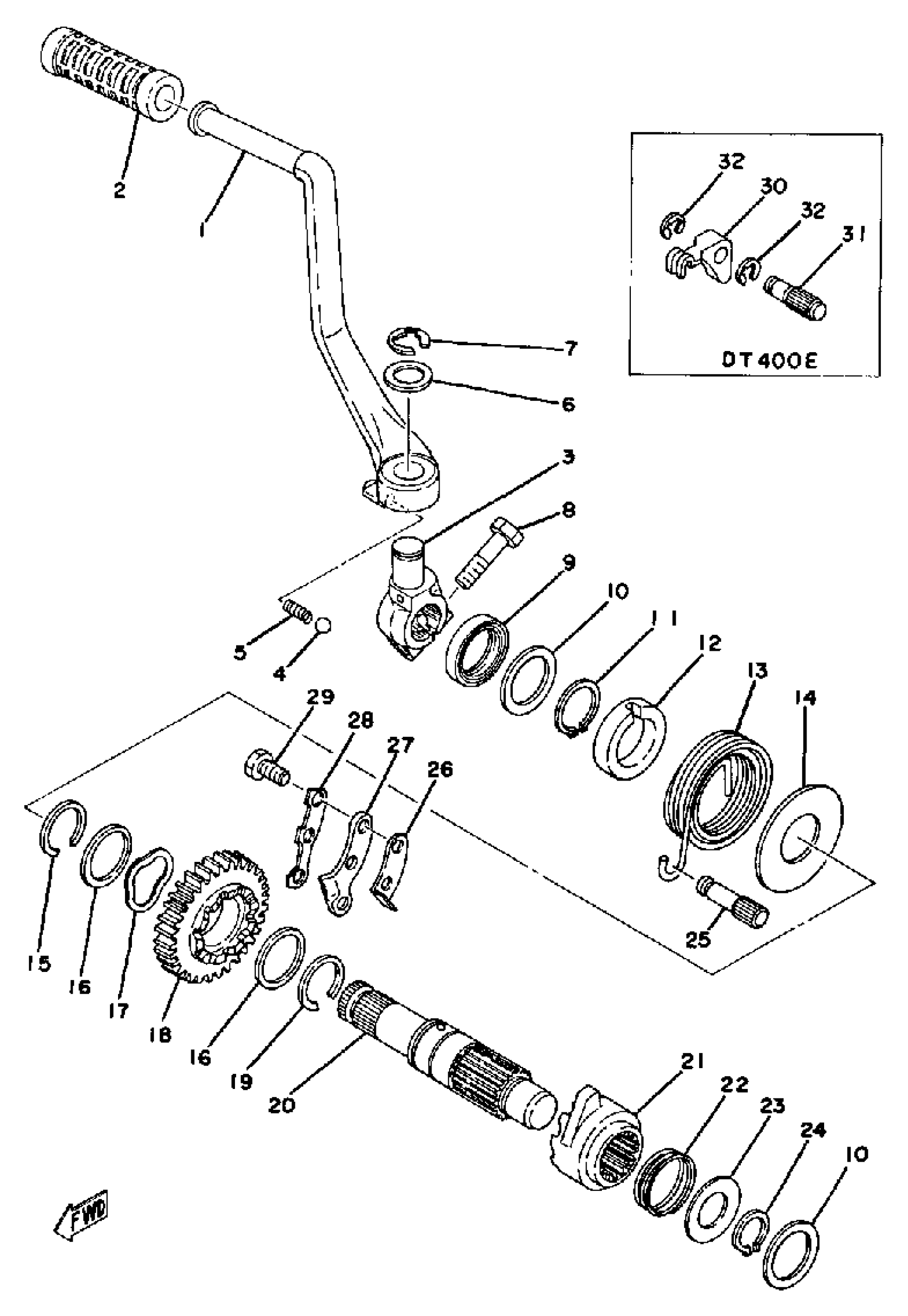

Find the part on the Starter diagram for your 1978 Yamaha DT400E (DT400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha DT400E (DT400E) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSEMBLY

1M1-15620-02-00

1
Out of stock

1

BOSS, KICK CRANK

583-15621-00-00

1
Out of stock

2

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

3

BOSS, KICK CRANK

583-15621-00-00

1
Out of stock

4

BALL (12R)

93507-32031-00

1
Out of stock

5

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

6

WASHER PLATE 278156130000

90201-15234-00

1

$6.78

In stock

7

CIRCLIP

99006-10600-00

1

$6.91

In stock

8

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

9

OIL SEAL,SD-TYPE

93102-20309-00

1

$8.77

In stock

10

WASHER PLATE 168171160000

90201-20278-00

1
Out of stock

11

CIRCLIP(JF7)

99009-25400-00

1

$6.68

In stock

12

GUIDE, SPRING

(1M1-15664-00-00)

1
Out of stock

13

SPRING, TORSION

90508-32317-00

1
Out of stock

14

WASHER, PLATE

(90201-25637-00)

1
Out of stock

15

CIRCLIP (4L0)

93440-25084-00

—

$3.96

In stock

16

WASHER, PLATE(59W)

90201-253K0-00

—

$6.18

In stock

17

WASHER, WAVE

90206-25059-00

1
Out of stock

18

GEAR, KICK

(1M1-15641-00-00)

1
Out of stock

19

1 CIRCLIP, OUTER

93440-25027-00

1
Out of stock

20

AXLE, KICK

1M1-15661-00-00

1
Out of stock

21

WHEEL, RATCHET

(1M1-15671-00-00)

1
Out of stock

22

SPRING COMPRESSION363156750000

90501-23143-00

—
Out of stock

23

COVER, SPRING

363-15676-00-00

—
Out of stock

24

CIRCLIP (525)

93410-20038-00

—

$2.62

In stock

25

STOPPER

(1M1-15668-01-00)

1
Out of stock

26

STOPPER

434-15668-00-00

—
Out of stock

27

GUIDE, RATCHET WHEEL

(363-15674-00-00)

1
Out of stock

28

WASHER, LOCK

363-15686-00-00

—
Out of stock

29

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

30

LINK

363-15656-00-00

1
Out of stock

31

SHAFT

363-15659-00-00

1
Out of stock

32

CIRCLIP

99080-07600-00

1

$2.89

In stock
