1977 Yamaha DT400D (DT400D) Speedometer - Tachometer Diagram

← All diagrams

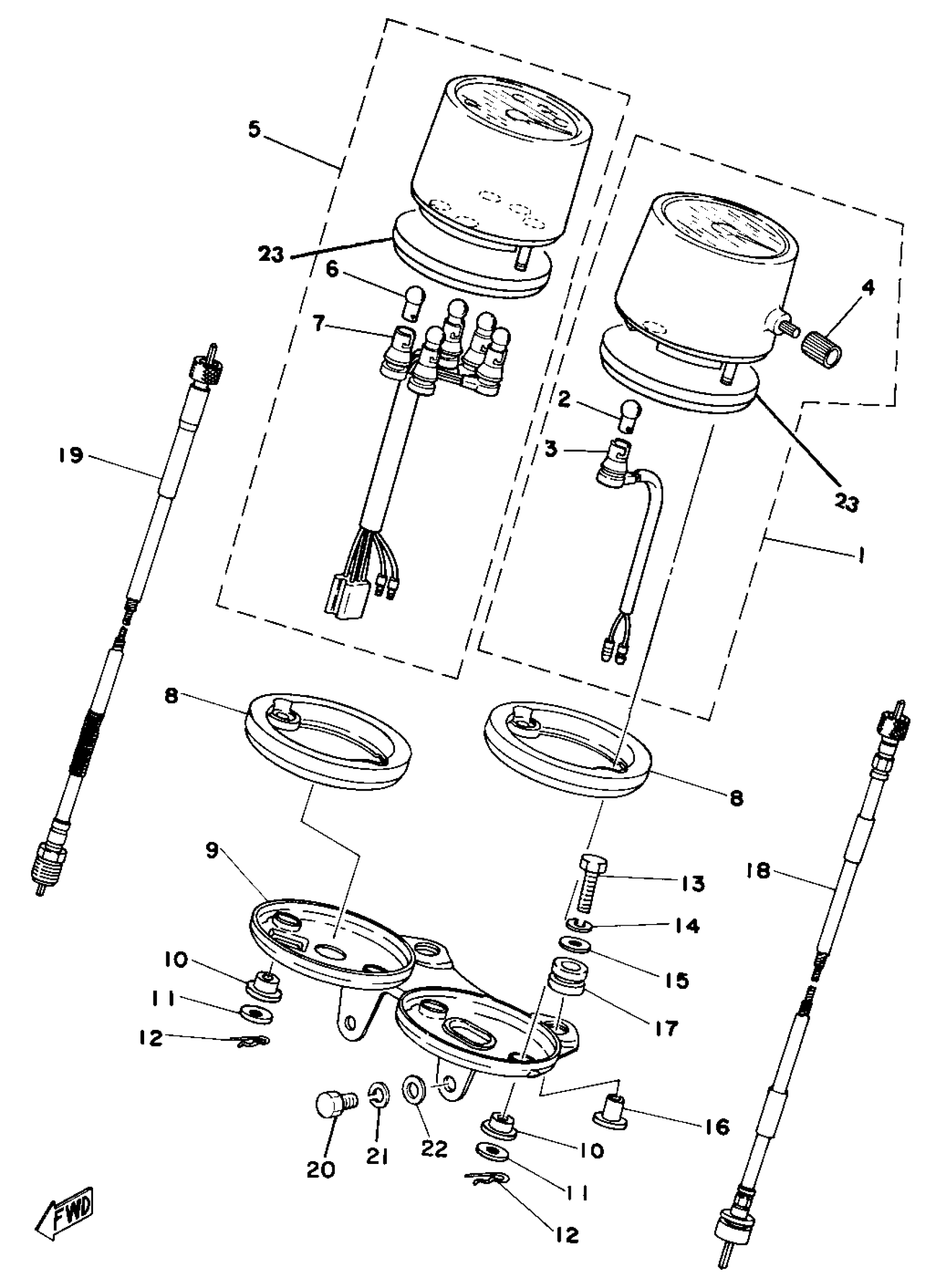

Find the part on the Speedometer - Tachometer diagram for your 1977 Yamaha DT400D (DT400D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha DT400D (DT400D) Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

(1M1-83570-30-00)

1
Out of stock

2

BULB,(6V3W)

122-83516-10-00

1
Out of stock

3

SOCKET, METER

(1M1-83536-00-00)

1
Out of stock

4

. KNOB, TRIP METER

1E6-83578-60-00

1
Out of stock

5

TACHOMETER ASSEMBLY

(1M1-83540-F0-00)

1
Out of stock

6

BULB,(6V3W)

122-83516-10-00

1
Out of stock

7

SOCKET CORD ASSEMBLY

(1M1-83520-00-00)

1
Out of stock

8

DAMPER

1M1-83513-00-00

1
Out of stock

9

BRACKET, METER

1M1-83519-01-98

1
Out of stock

10

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

11

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

12

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

13

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

16

COLLAR

90387-06158-00

—

$6.17

In stock

17

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

18

SPEEDOMETER CABLE ASSY

1M1-83550-01-00

—

$44.52

In stock

19

TACHOMETER CABLE ASSEMBLY

1M1-83560-01-00

1
Out of stock

20

BOLT (661)

97013-06012-00

—

$4.71

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

RING, METER COVER

2A6-83506-00-00

1
Out of stock
