1971 Yamaha DT1MX (DT1MX) Speedometer & Tachometer Diagram

← All diagrams

Find the part on the Speedometer & Tachometer diagram for your 1971 Yamaha DT1MX (DT1MX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

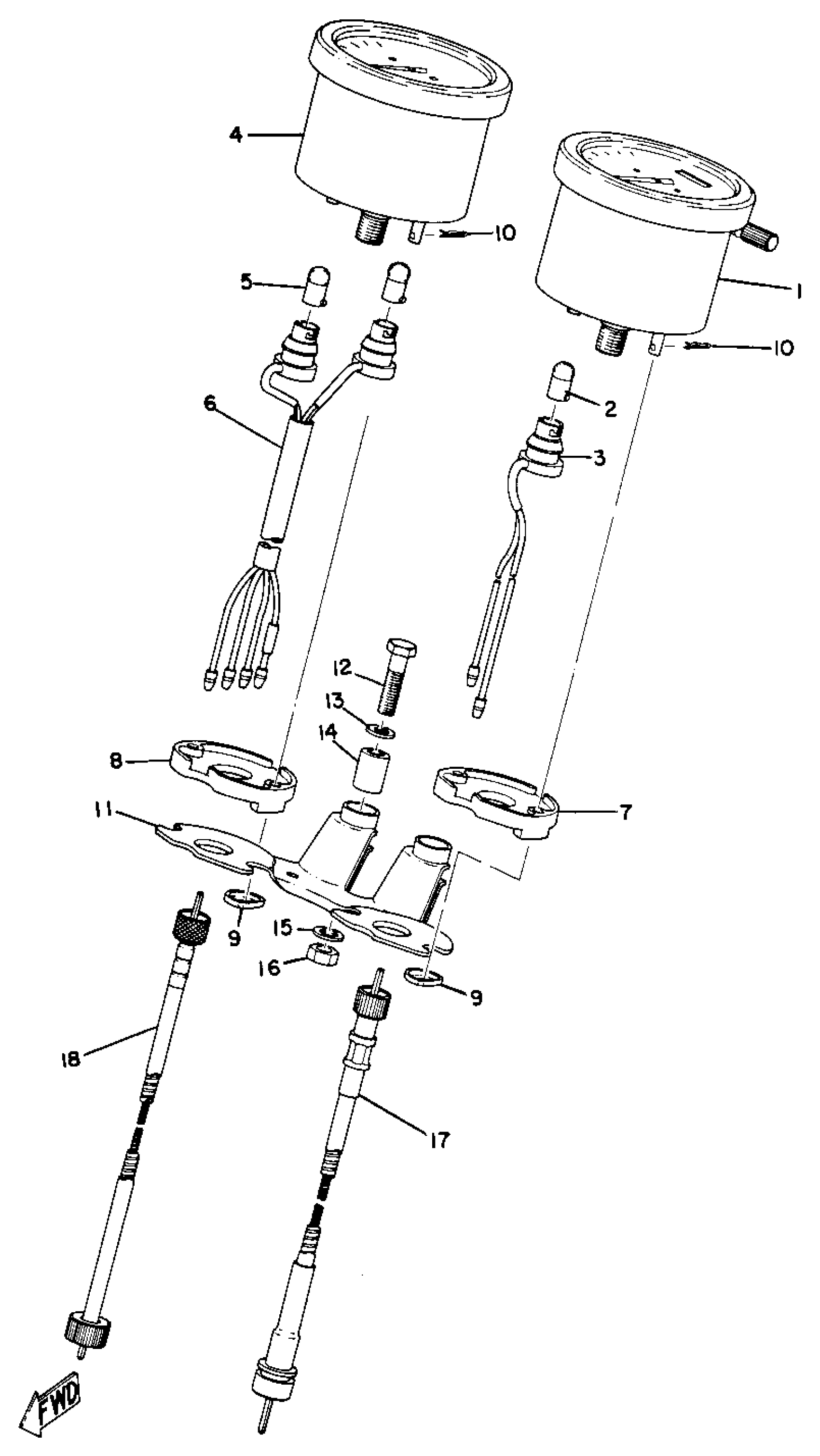

1971 Yamaha DT1MX (DT1MX) Speedometer & Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

(233-83570-31-00)

1
Out of stock

2

BULB,(6V3W)

122-83516-10-00

1
Out of stock

3

SOCKET, METER

(235-83536-21-00)

1
Out of stock

4

NO LONGER AVAILABLE

291-83540-00-00

1
Out of stock

5

BULB,(6V3W)

122-83516-10-00

1
Out of stock

6

SOCKET CORD ASSEMBLY

(275-83520-00-00)

1
Out of stock

7

DAMPER

214-83523-00-00

1
Out of stock

8

DAMPER

237-83523-00-00

1

$8.70

In stock

9

WASHER 214835240000

90209-05029-00

—

$6.86

In stock

10

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

11

BRACKET, METER

(275-83519-00-33)

1
Out of stock

12

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

14

BUSH, SPEC''L RUBBER (214-83528-00)

90385-06001-00

1
Out of stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

17

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

—

$36.69

In stock

18

TACHOMETER CABLE

214-83560-00-00

1
Out of stock
