1971 Yamaha DT1MX (DT1MX) Handle & Wire Diagram

← All diagrams

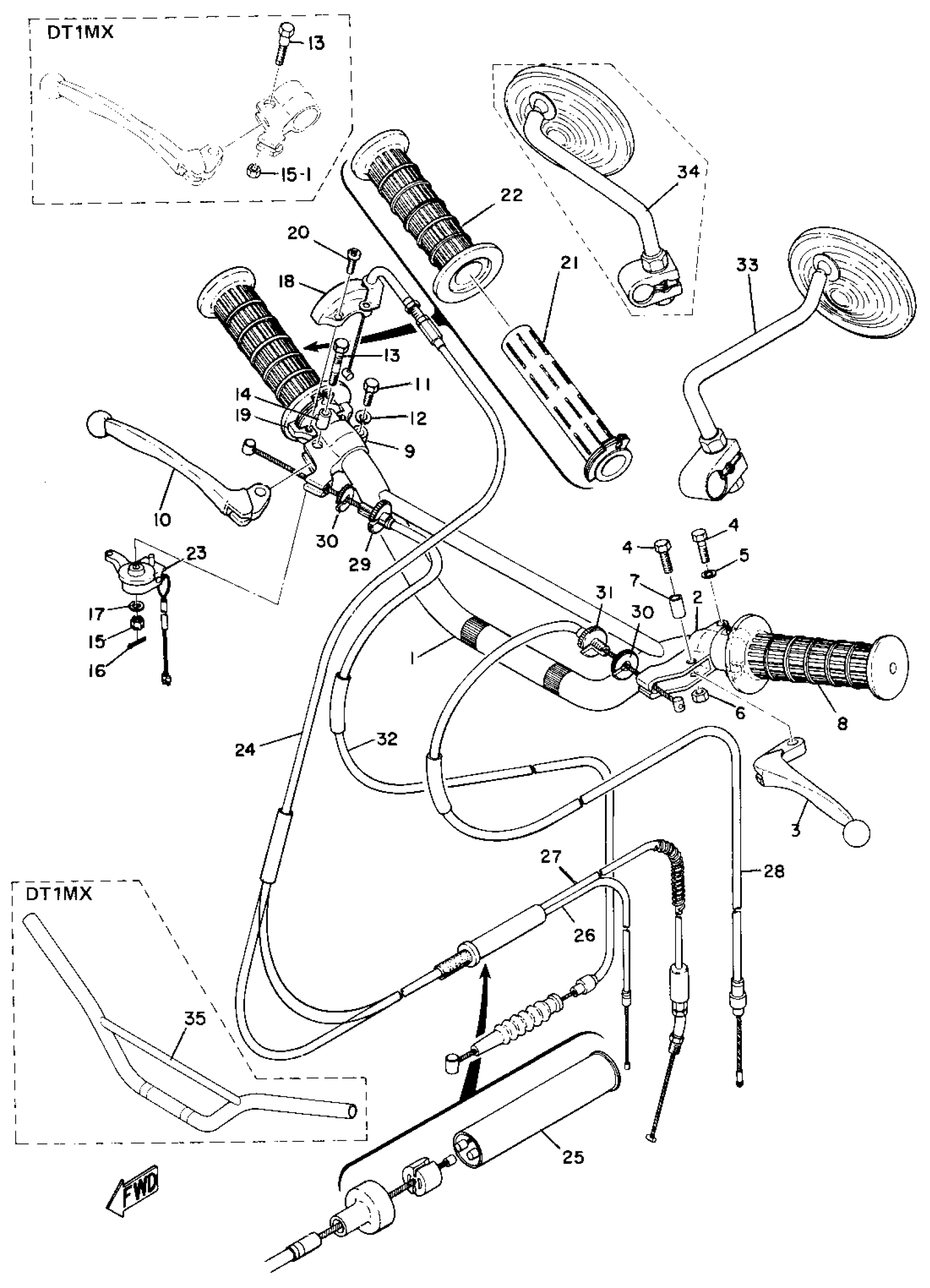

Find the part on the Handle & Wire diagram for your 1971 Yamaha DT1MX (DT1MX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha DT1MX (DT1MX) Handle & Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY 1

214-82910-07-00

1
Out of stock

1

HANDLEBAR

5V6-26111-00-00

1
Out of stock

1

NUT(650)

95380-06700-00

1

$6.17

In stock

2

HOLDER, LEVER (L.H)

214-82911-01-00

1

$48.32

In stock

2

LEVER HOLDER ASSEMBLY 2

(233-82920-33-00)

1
Out of stock

3

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

4

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

7

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

8

GRIP LH

214-26241-00-00

1
Out of stock

9

HOLDER, LEVER (R.H)

233-82921-31-00

1

$58.60

In stock

10

LEVER(R.H)

233-83922-30-00

1

$19.29

In stock

11

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

. SCREW, LVR FITTING

214-83915-00-00

1
Out of stock

13

. BOLT

90109-05197-00

1
Out of stock

14

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

15

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

16

. PIN, COTTER

91401-12018-00

1
Out of stock

17

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

18

CAP, GRIP UPPER

214-26281-01-00

1
Out of stock

19

CAP, GRIP LOWER

214-26282-01-00

1
Out of stock

20

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

21

TUBE, GUIDE

214-26243-00-00

—

$39.75

In stock

22

GRIP (R.H)

1A0-26242-01-00

—
Out of stock

23

FRONT STOP SWITCH ASSY

232-83980-30-00

—

$68.85

In stock

24

CABLE, THROTTLE 1

214-26311-02-00

1
Out of stock

25

CONNECTOR, CABLE

214-26261-01-00

—

$10.29

In stock

26

CABLE, THROTTLE 2

214-26312-00-00

1
Out of stock

27

CABLE, PUMP

214-26321-00-00

1
Out of stock

28

WIRE, CLUTCH

360-26335-00-00

—
Out of stock

29

BOLT

90123-08002-00

—

$8.93

In stock

30

NUT

90179-08030-00

—

$3.78

In stock

31

BOLT

90123-08002-00

—

$8.93

In stock

32

CABLE, BRAKE

214-26341-00-00

1
Out of stock

33

MIRROR ASSEMBLY LH

253-26290-10-00

1
Out of stock

34

MIRROR ASY

253-26290-00-00

1
Out of stock

35

HANDLEBAR

(214-26111-70-00)

1
Out of stock
