1981 Yamaha DT175H (DT175H) Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 1981 Yamaha DT175H (DT175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

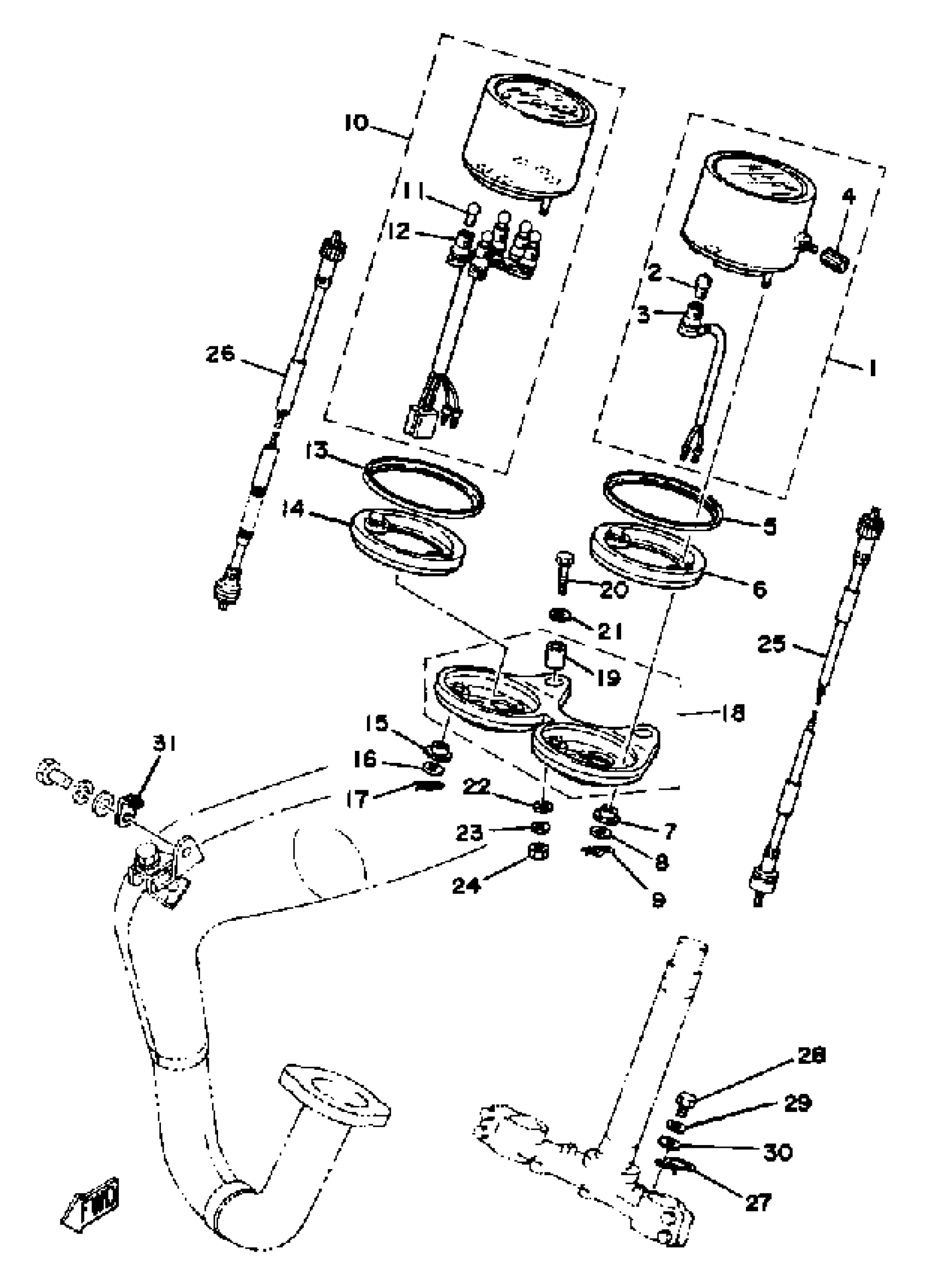

1981 Yamaha DT175H (DT175H) Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

2N4-83570-A0-00

1
Out of stock

2

BULB,(6V3W)

122-83516-10-00

1
Out of stock

3

SOCKET, METER

(1V1-83536-00-00)

1
Out of stock

4

. KNOB, TRIP METER

1E6-83578-10-00

1
Out of stock

5

RING, METER COVER

2A6-83506-00-00

1
Out of stock

6

DAMPER

2A6-83513-00-00

1
Out of stock

7

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

8

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

9

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

10

TACHOMETER ASY

2X1-83540-F0-00

1
Out of stock

11

BULB,(6V3W)

122-83516-10-00

1
Out of stock

12

SOCKET CORD ASSEMBLY

(2A6-83520-00-00)

1
Out of stock

13

RING, METER COVER

2A6-83506-00-00

1
Out of stock

14

DAMPER

2A6-83513-00-00

1
Out of stock

15

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

16

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

17

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

18

BRACKET, METER

3J0-83519-00-00

1
Out of stock

19

BUSH, SPEC''L RUBBER (214-83528-00)

90385-06001-00

1
Out of stock

20

BOLT, HEXAGON

97017-06045-00

—
Out of stock

21

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

25

SPEEDOMETER CABLE ASSY

1M1-83550-01-00

—

$44.52

In stock

26

TACHOMETER CABLE ASSY

2A6-83560-00-00

—

$56.65

In stock

27

CLAMP

(2A6-83595-00-00)

1
Out of stock

28

BOLT (661)

97013-06012-00

—

$4.71

In stock

29

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

30

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

31

CLAMP

2A6-83596-00-00

1
Out of stock
