1974 Yamaha DT175A (DT175A) Speedometer & Tachometer Diagram

← All diagrams

Find the part on the Speedometer & Tachometer diagram for your 1974 Yamaha DT175A (DT175A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

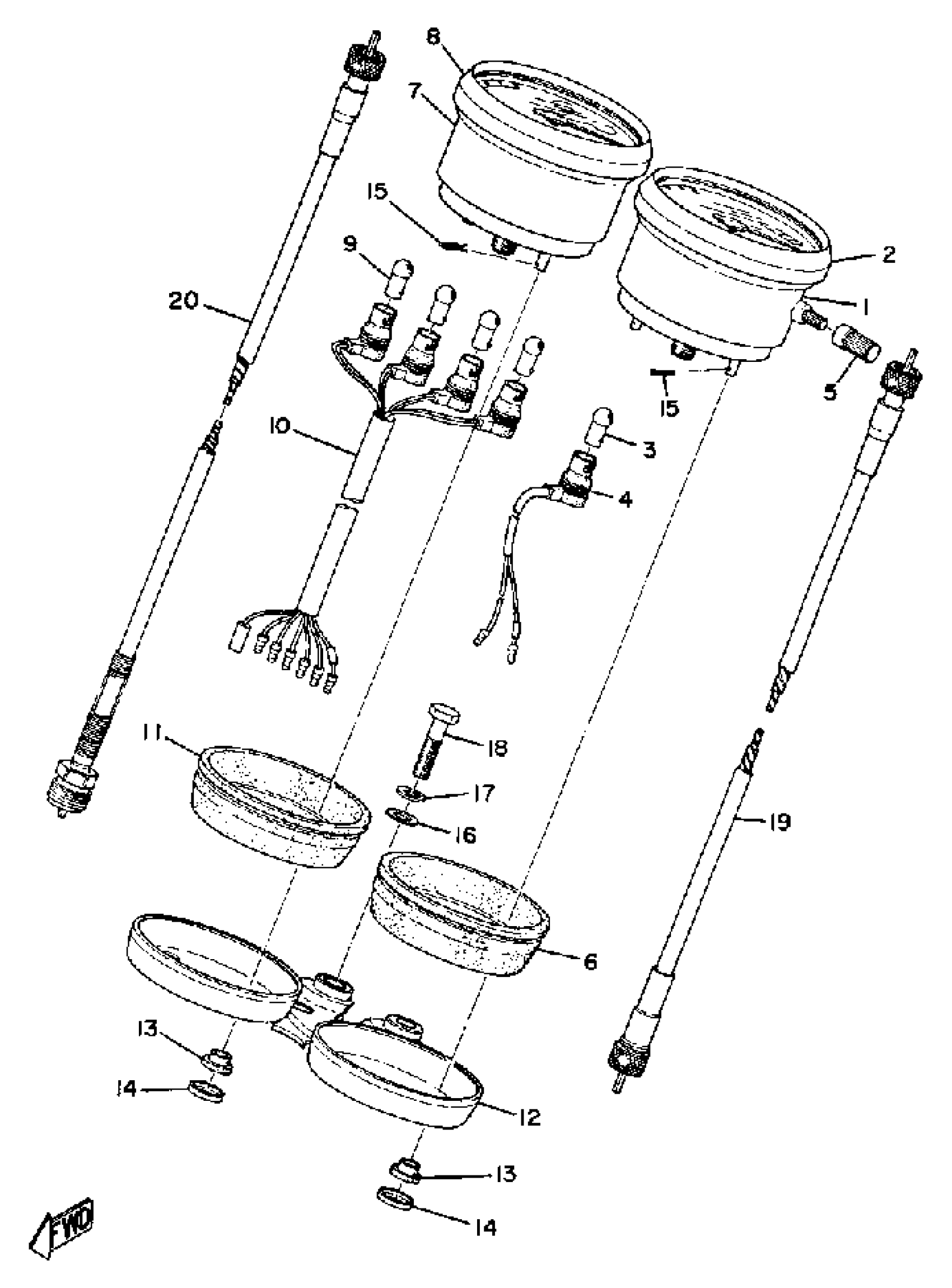

1974 Yamaha DT175A (DT175A) Speedometer & Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

(438-83570-31-00)

1
Out of stock

2

DAMPER

(437-83513-00-00)

1
Out of stock

3

BULB,(6V3W)

122-83516-10-00

1
Out of stock

4

SOCKET, METER

(438-83536-30-00)

1
Out of stock

5

KNOB, TRIP METER

(308-83578-30-00)

1
Out of stock

6

DAMPER 2

(438-83526-00-00)

1
Out of stock

7

TACHOMETER ASSEMBLY

(443-83540-02-00)

1
Out of stock

8

DAMPER

(437-83513-00-00)

1
Out of stock

9

BULB,(6V3W)

122-83516-10-00

1
Out of stock

10

SOCKET CORD ASSEMBLY

(443-83520-00-00)

1
Out of stock

11

DAMPER

(438-83592-00-00)

1
Out of stock

12

BRACKET, METER

438-83519-02-98

1
Out of stock

13

DAMPER

437-83523-00-00

1
Out of stock

14

WASHER, SPECIAL

437-83524-00-00

1
Out of stock

15

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

19

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

—

$36.69

In stock

20

TACHOMETER CABLEASSEMBLY

443-83560-01-00

1
Out of stock
