1979 Yamaha DT125F (DT125F) Generator Diagram

← All diagrams

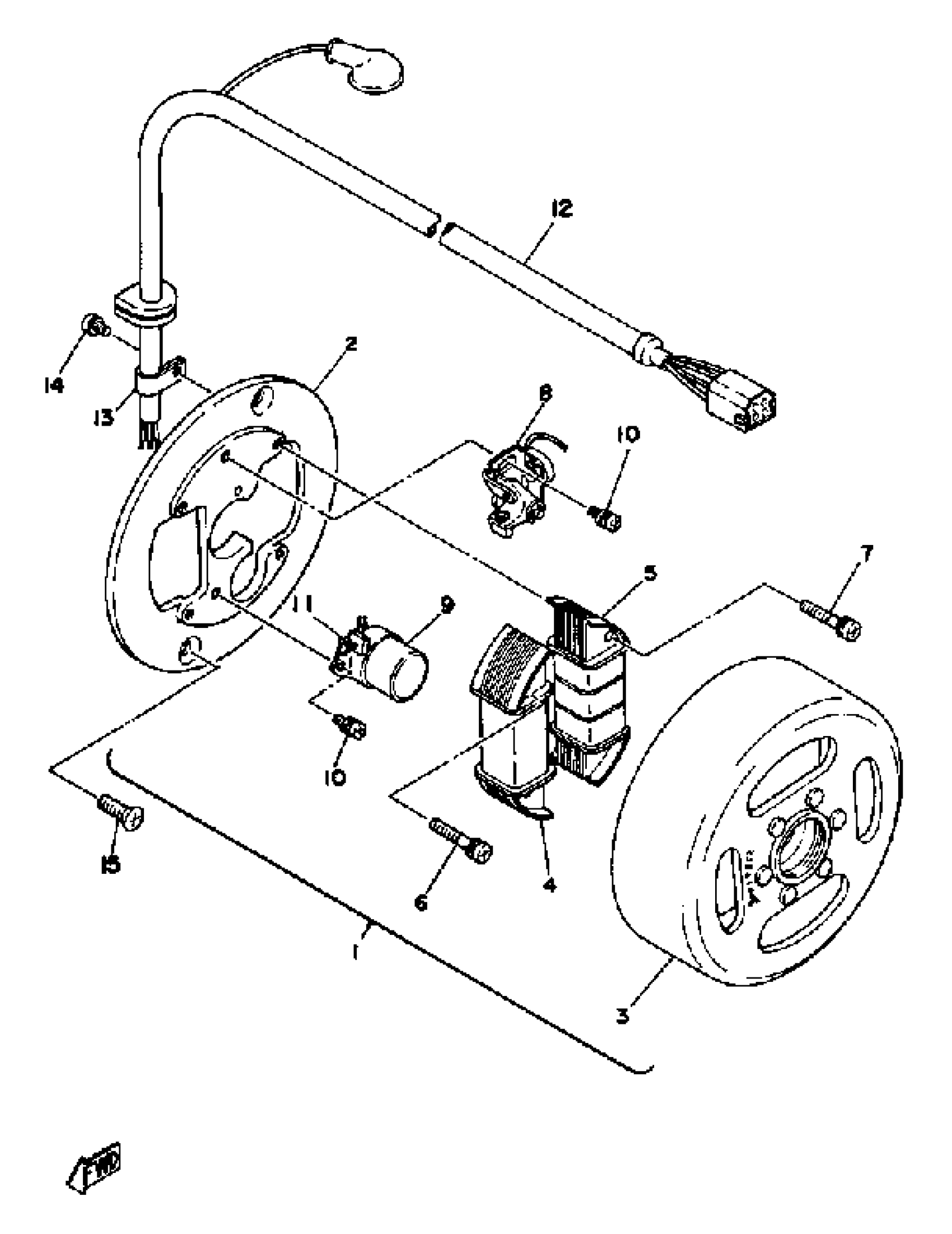

Find the part on the Generator diagram for your 1979 Yamaha DT125F (DT125F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha DT125F (DT125F) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FLYWHL MAGNETO ASSEMBLY

(2N4-81300-20-00)

1
Out of stock

2

. BASE, MAGNETO

2A6-81309-20-00

1
Out of stock

3

ROTOR ASSEMBLY

(2N4-81350-20-00)

1
Out of stock

4

. COIL, SOURCE

2A6-81312-20-00

1
Out of stock

5

. COIL, LIGHTING 1 (2N4-81313-20)

2A6-81313-20-00

1
Out of stock

6

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

7

SCREW, PAN

98507-04030-00

1

$1.51

In stock

8

CONTACT BREAKER ASSY

2A6-81321-20-00

1

$44.99

In stock

9

. CONDENSER 1

2F5-81325-90-00

1
Out of stock

10

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

11

. LUBRICATOR

116-81331-20-00

1
Out of stock

12

. LEAD WIRE ASSEMBLY

2A6-81315-20-00

1
Out of stock

13

CLAMP, LEAD

104-81328-20-00

1

$6.31

In stock

14

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

15

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock
