1979 Yamaha DT125F (DT125F) Electrical Diagram

← All diagrams

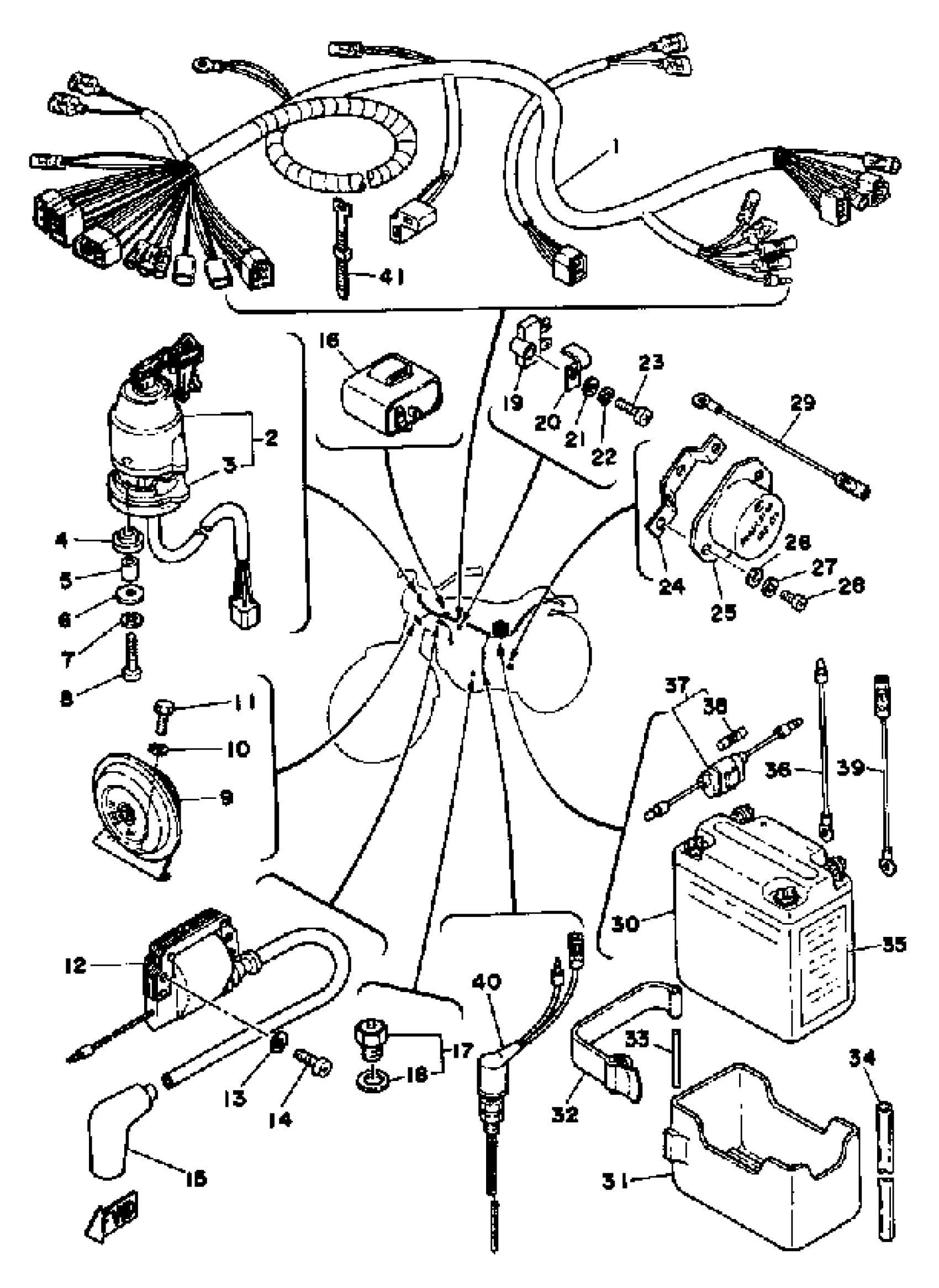

Find the part on the Electrical diagram for your 1979 Yamaha DT125F (DT125F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha DT125F (DT125F) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRE HARNESS ASSEMBLY

(2N4-82590-50-00)

1
Out of stock

2

MAIN SWITCH ASSEMBLY

443-82508-21-00

1
Out of stock

3

. DAMPER, MAIN SWCH 1

1M1-82555-00-00

1
Out of stock

4

DAMPER, STOPPER

1M1-82556-00-00

1
Out of stock

5

COLLAR, MAIN SWITCH

437-82516-00-00

1
Out of stock

6

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

9

HORN

1N5-83371-20-00

1
Out of stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

BOLT (661)

97013-06012-00

1

$4.71

In stock

12

IGNITION COIL ASSEMBLY

1Y8-82310-40-00

1
Out of stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

15

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

15

PLUG CAP ASSY

56J-82370-00-00

—

$56.63

In stock

16

FLASHER RELAY ASSY

3BK-83350-00-00

—
Out of stock

17

NEUTRAL SWITCH ASSY

136-82540-03-00

—

$26.20

In stock

18

WASHER, PLATE

90201-12790-00

—

$6.85

In stock

19

RECTIFIRE ASSY

1M1-81970-60-00

—

$58.42

In stock

20

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

21

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

22

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

23

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

24

PLATE, REG FITTING

2A6-81915-00-00

1
Out of stock

25

VOLTAGE REG ASY

443-81910-62-00

1
Out of stock

26

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

27

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

28

BOLT, HEXAGON

97013-05012-00

—

$1.43

In stock

29

CORD

1H2-83346-00-00

1
Out of stock

30

6N6-3B-1 YUASA BATTERY

6N6-3B1Y0-00-00

1
Out of stock

31

SEAT, BATTERY

(2A6-82122-00-00)

1
Out of stock

32

BAND, BATTERY

2A6-82131-00-00

1
Out of stock

33

PIN, COTTER (AM5)

91490-30045-00

—
Out of stock

34

HOSE

(90445-08357-00)

1
Out of stock

35

LABEL, BATTERY

40A-82141-G0-00

1
Out of stock

36

WIRE, SUB-LEAD

J42-82318-00-00

1

$4.15

In stock

37

FUSE HOLDER ASSY

55K-82150-02-00

—

$30.99

In stock

38

FUSE

1A0-82151-00-00

—
Out of stock

39

CORD

1H2-83346-00-00

1
Out of stock

40

STOP SWITCH ASSEMBLY

371-82530-03-00

1
Out of stock

41

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
