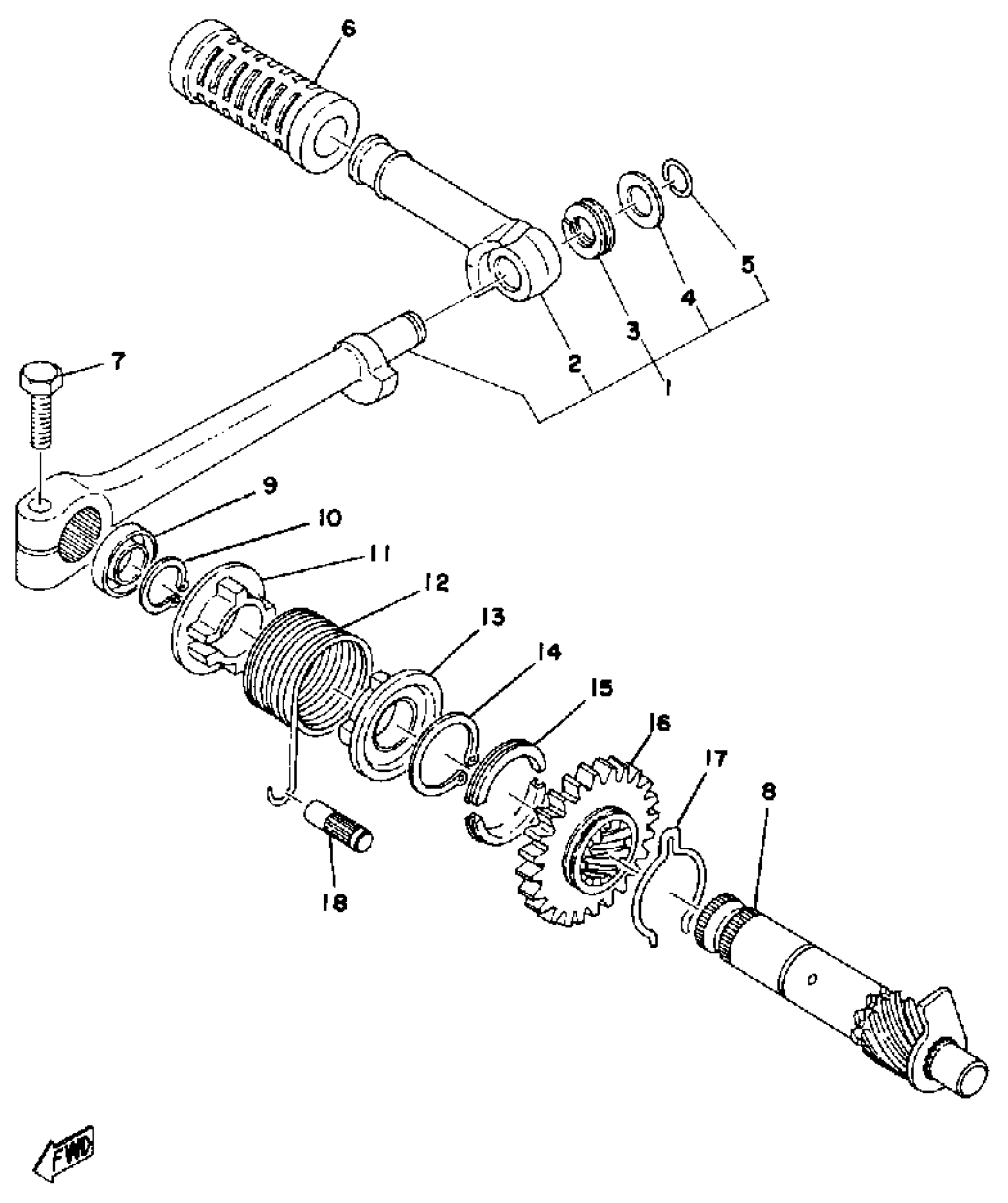

Yamaha DT125C (DT125C) 1976 STARTER Diagram

#

Description
Price

1

KICK CRANK ASSY

3V6-15620-00-00

Unavailable

2

LEVER, KICK

(214-15612-01-00)

Unavailable

3

SPRING COMPRESSION214156250100

90504-18009-00

$4.41

4

WASHER, KICK LEVER

214-15616-00-00

$5.55

5

CIRCLIP 214156170000

93440-11029-00

$5.65

6

COVER, KICK LEVER

214-15618-00-00

$6.29

7

BOLT, HEXAGON

97013-08030-00

$2.98

8

KICK AXLE ASSEMBLY

315-15660-01-00

Unavailable

9

OIL SEAL (20X30X4.5-146)

93104-20007-00

$5.80

10

CIRCLIP(1AR)

99009-20400-00

$5.75

11

COVER, SPRING

(214-15676-00-00)

Unavailable

12

SPRING TORSION 304156650000

90508-26136-00

Unavailable

13

GUIDE, SPRING

(214-15664-00-00)

Unavailable

14

CIRCLIP(4A6)

99009-30400-00

$6.11

15

HOLDER, KICK GEAR

248-15654-00-00

$6.39

16

GEAR, KICK

315-15641-00-00

Unavailable

17

CLIP 315156870000

90468-26048-00

Unavailable

18

STOPPER, KICK SPRING

248-15668-00-00

Unavailable
