1976 Yamaha DT125C (DT125C) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1976 Yamaha DT125C (DT125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

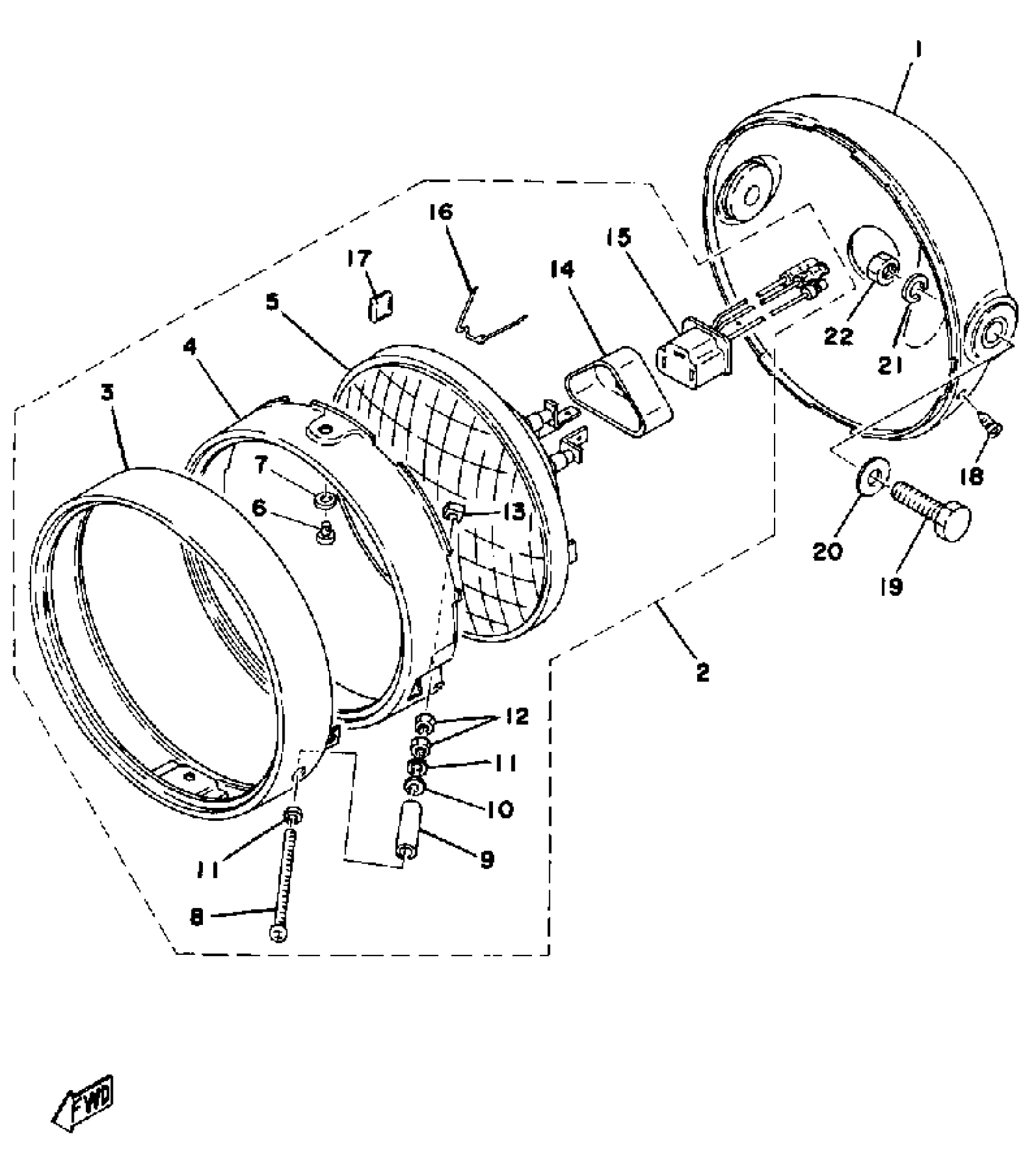

1976 Yamaha DT125C (DT125C) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY, HEADLIGHT

(498-84130-60-20)

1
Out of stock

2

TOOL

UNA-VAILA-BL-EI

1
Out of stock

3

. RIM, HEADLIGHT

498-84115-60-00

1
Out of stock

4

. RING, RETAINING

498-84195-60-00

1
Out of stock

5

. LENS ASSEMBLY (507-84320-61)

507-84320-62-00

1
Out of stock

6

. SCREW

438-84194-60-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

SCREW 214841316100

90157-04001-00

1
Out of stock

9

COLLAR, SCREW

438-84133-60-00

1
Out of stock

10

WASHER, PLAIN (646)

92990-04600-00

1
Out of stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1
Out of stock

12

NUT(6TA)

95307-04600-00

1
Out of stock

13

NUT, ADJUST

198-84334-60-00

1
Out of stock

14

. COVER, SOCKET

341-84397-61-00

1
Out of stock

15

SOCKET

371-84312-60-00

—
Out of stock

16

SPRING, SET

1UY-84124-00-00

—
Out of stock

17

. SPACER

498-84128-60-00

1
Out of stock

18

SCREW, OVAL HEAD (1A0)

90152-05005-00

—
Out of stock

19

BOLT

97013-08035-00

—
Out of stock

20

.. WASHER, PLATE

92990-08600-00

1
Out of stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

22

NUT(6L2)

95333-08600-00

—
Out of stock
