1976 Yamaha DT125C (DT125C) Electrical Diagram

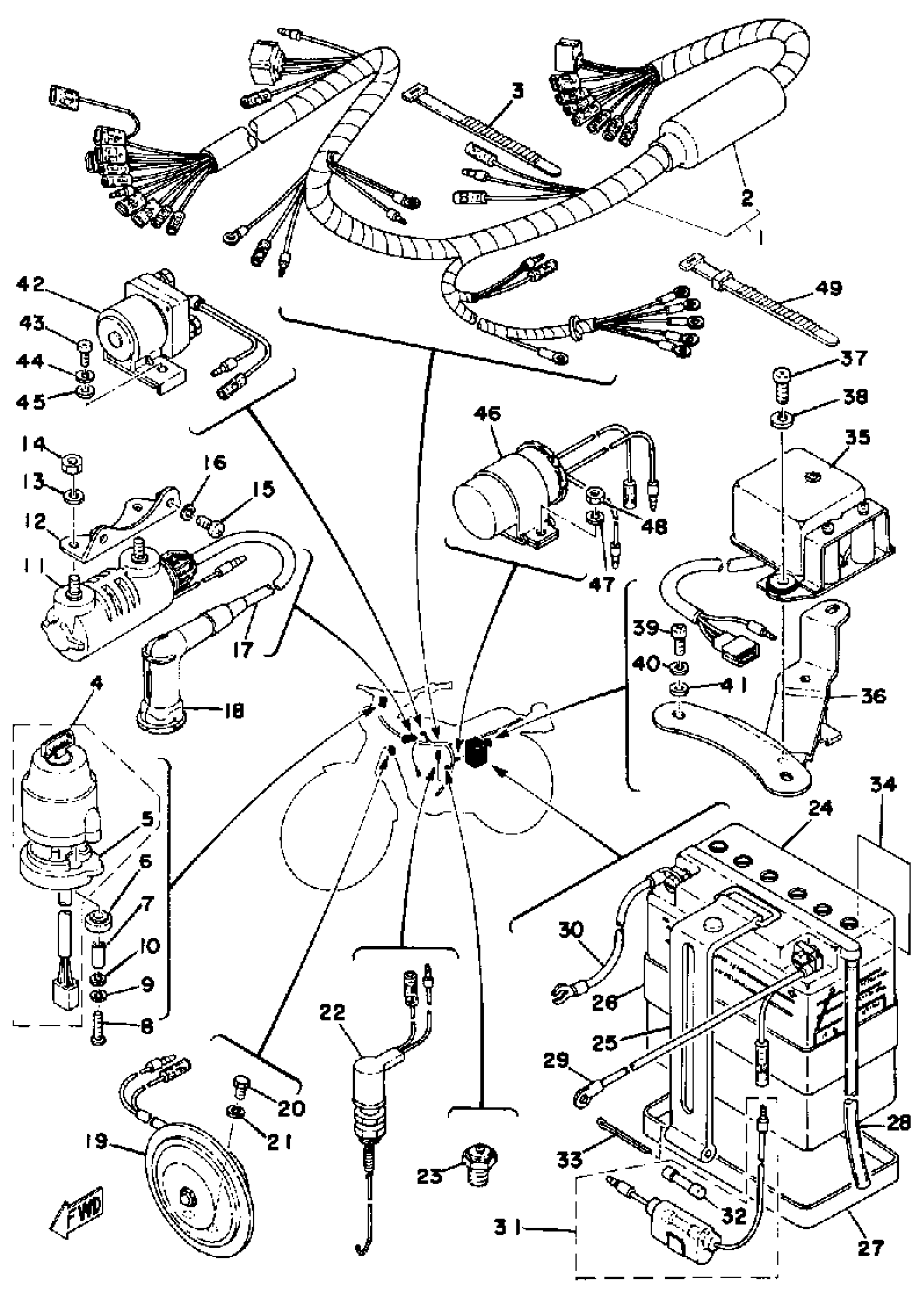

Find the part on the Electrical diagram for your 1976 Yamaha DT125C (DT125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
WIRE HARNESS ASSEMBLY
(560-82590-10-00)
2
COVER, CONNECTER
(444-82599-00-00)
4
MAIN SWITCH ASSEMBLY
(444-82508-12-00)
5
. DAMPER, MAIN SWITCH
437-82555-00-00
6
DAMPER, STOPPER
1M1-82556-00-00
7
COLLAR, MAIN SWITCH
437-82516-00-00
9
YBS67-5 WASHER, SPRING
92990-05100-00
10
WASHER, PLAIN (646)
92990-05600-00
11
IGNITION COIL ASSEMBLY
254-82310-60-00
12
BRACKET, IGN COIL
(248-82316-00-00)
17
CORD, HIGHT TENSION 1
137-82341-01-00
19
HORN
444-83371-21-00
22
STOP SWITCH ASSEMBLY
248-82530-02-00
24
12N73BY YUASA BATTERY
12N-73BY0-00-00
25
BAND, BATTERY
261-82131-00-00
26
BAND, BATTERY
1UA-82124-00-00
27
SEAT, BATTERY
(173-82122-00-00)
28
HOSE
90445-08719-00
29
WIRE, PLUS LEAD
(261-82115-01-00)
30
WIRE, MINUS LEAD
(261-82116-01-00)
31
FUSE HOLDER ASSY
2UJ-82150-02-00
32
FUSE
1A0-82151-00-00
34
LABEL, BATTERY
40A-82141-G0-00
35
VOLTAGE REG ASSEMBLY
444-81910-10-00
36
PLATE, REG FITTING
(560-81915-00-00)
42
. STARTER RELAY ASSY
8J9-81940-10-00
46
FLASHER RELAY ASSEMBLY
444-83350-71-00
