1981 Yamaha DT100H (DT100H) Headlight Diagram

← All diagrams

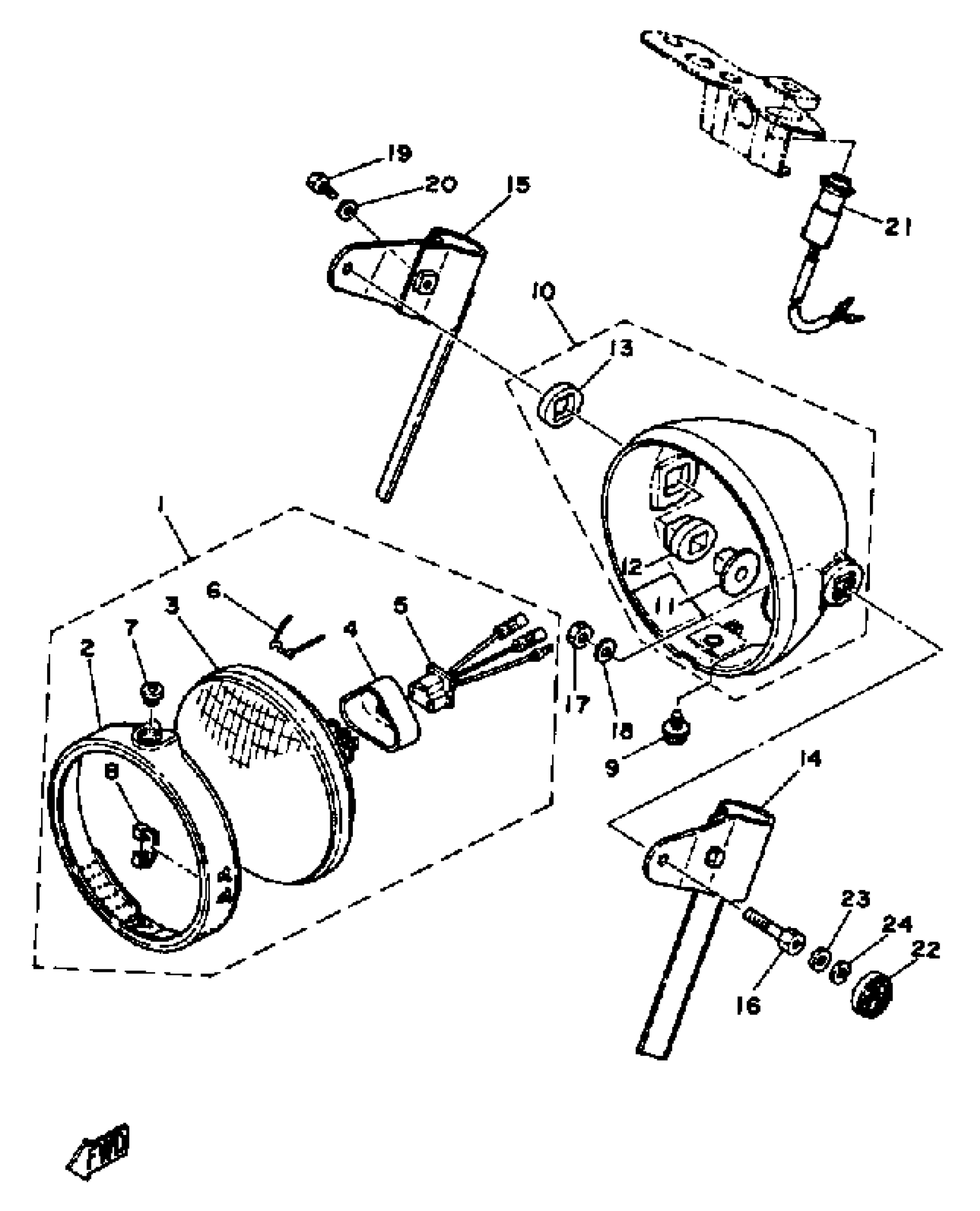

Find the part on the Headlight diagram for your 1981 Yamaha DT100H (DT100H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha DT100H (DT100H) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

(1M1-84110-61-00)

1
Out of stock

2

RING, RETAINING

3J0-84195-60-00

—

$52.78

In stock

3

. LENS ASSEMBLY

498-84120-61-00

1
Out of stock

4

. COVER, SOCKET

341-84397-61-00

1
Out of stock

5

SOCKET

371-84312-60-00

—

$26.52

In stock

6

SPRING, REFLECTOR SET

1M1-84124-60-00

1

$7.51

In stock

7

COLLAR

1M1-84133-60-00

—

$6.86

In stock

8

. SPACER

498-84128-60-00

1
Out of stock

9

BOLT, HEXAGON

1M1-84137-60-00

1

$5.17

In stock

10

BODY ASSEMBLY, HEADLIGHT (1M1-84130-60-98)

1M1-84130-60-00

1
Out of stock

11

COLLAR, BODY FITTING

498-84145-60-00

1

$6.52

In stock

12

DAMPER, HEAD LAMP A

498-84163-60-00

1

$5.68

In stock

13

DAMPER

1M1-84164-60-00

1

$22.31

In stock

13

STAY, HEADLIGHT 2

1T9-84119-01-00

1
Out of stock

14

STAY, HEADLIGHT 1

1T9-84118-01-00

1
Out of stock

16

BOLT

90109-08448-00

1
Out of stock

17

NUT(6L2)

95333-08600-00

—

$3.20

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

BOLT (661)

97013-06012-00

—

$4.71

In stock

20

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

21

PILOT LIGHT ASSEMBLY

1T9-84101-60-00

1
Out of stock

22

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

23

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

24

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock
