1981 Yamaha DT100H (DT100H) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 1981 Yamaha DT100H (DT100H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

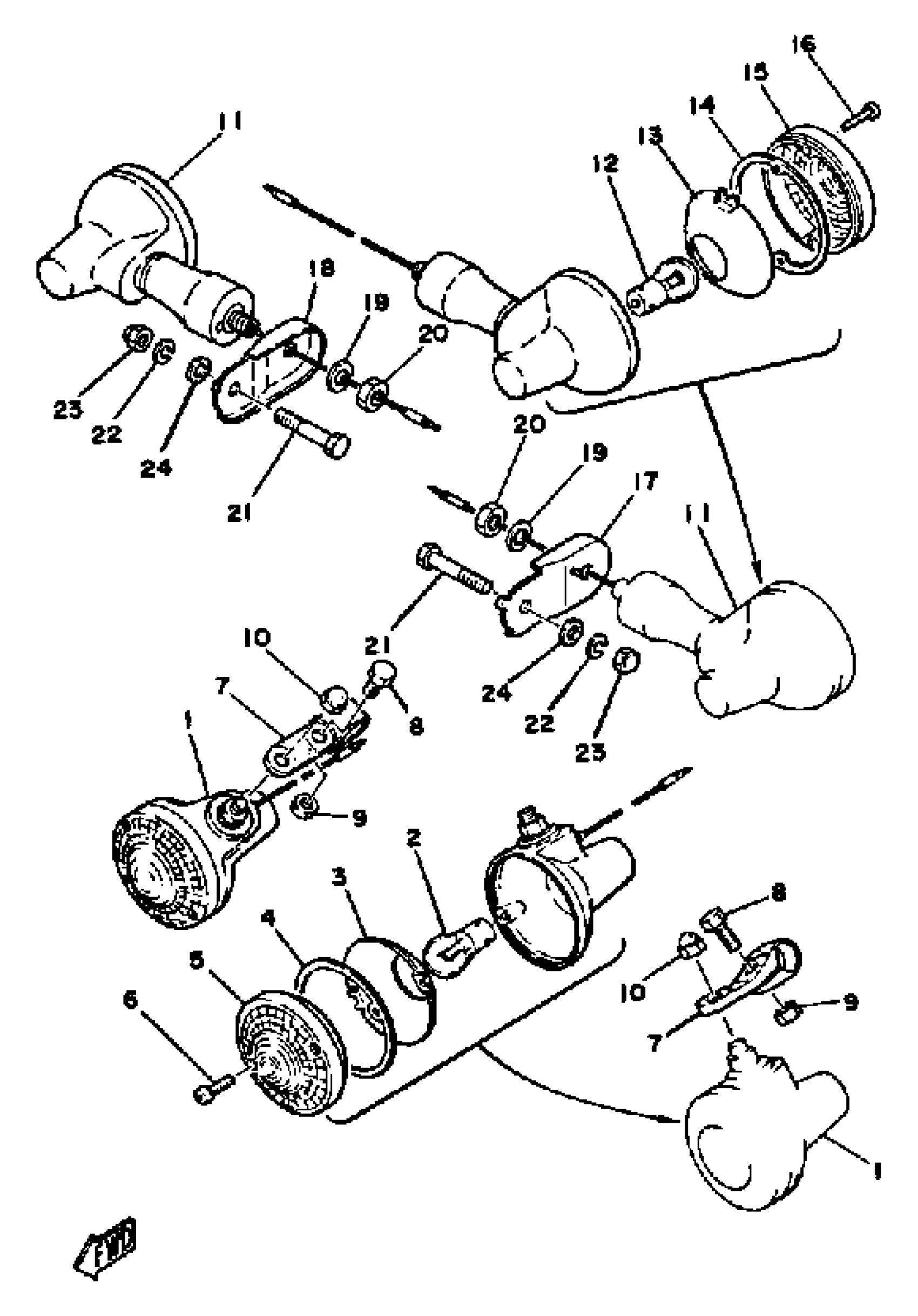

1981 Yamaha DT100H (DT100H) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER LIGHT ASSY 1

1M1-83310-60-00

1
Out of stock

2

BULB,FLASHER(6V18W)

115-83311-60-00

—

$9.05

In stock

3

. REFLECTOR

1M1-83309-60-00

1
Out of stock

4

. GASKET, FLASHER LENS

1M1-83313-60-00

1
Out of stock

5

LENS, FLASHER

341-83312-70-00

—

$16.86

In stock

6

—

$5.77

In stock

7

STAY, FLASHER 1

2F5-83318-00-00

1
Out of stock

8

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

9

NUT(6L2)

95333-08600-00

1

$3.20

In stock

10

NUT, CROWN

95303-08800-00

1

$7.52

In stock

11

REAR FLASHER LAMP ASSY

1T9-83330-60-00

—

$167.35

In stock

12

BULB,FLASHER(6V18W)

115-83311-60-00

—

$9.05

In stock

13

. REFLECTOR

1M1-83309-60-00

1
Out of stock

14

. GASKET, FLASHER LENS

1M1-83313-60-00

1
Out of stock

15

LENS, FLASHER

341-83312-70-00

—

$16.86

In stock

16

—

$5.77

In stock

17

. STAY, FLASHER

1T9-83368-01-00

1
Out of stock

18

STAY, FLASHER

1T9-83369-01-00

1
Out of stock

19

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

20

NUT(3BM)

95314-10600-00

—

$1.74

In stock

21

BOLT

97014-08040-00

—

$5.26

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

23

NUT, CROWN

95303-08800-00

1

$7.52

In stock

24

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock
