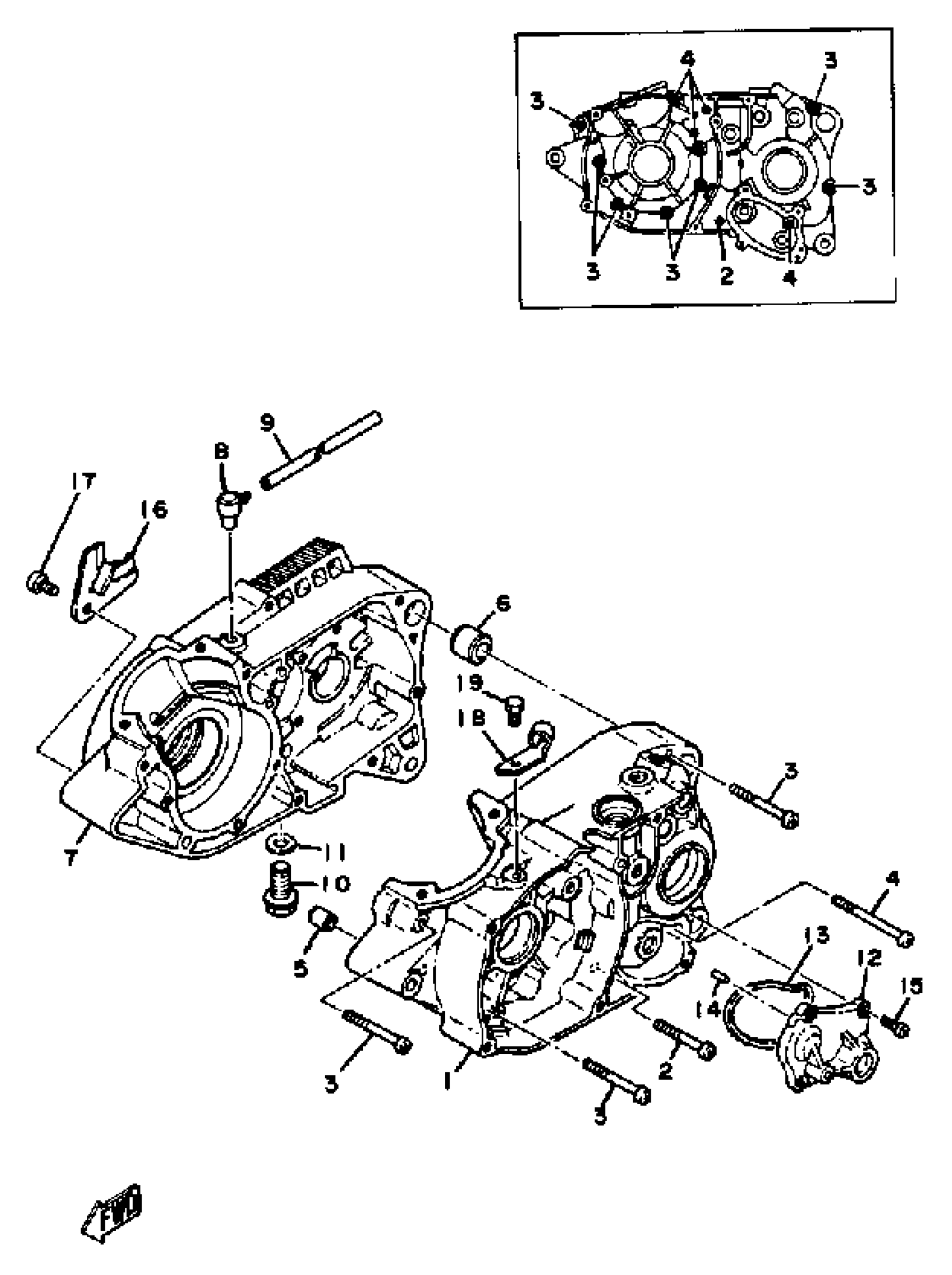

Yamaha DT100H (DT100H) 1981 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

1T9-15111-00-00

Unavailable

2

SCREW PAN HEAD

98580-06040-00

$5.75

3

SCREW PAN HEAD

98580-06550-00

$5.75

4

SCREW, BIND (JH1)

98580-06560-00

Unavailable

5

PIN, DOWEL(3VD)

99530-10114-00

$2.13

6

PIN, DOWEL

99530-14016-00

$2.98

7

CRANKCASE 2

1T9-15121-01-00

Unavailable

8

BREATHER

583-15371-00-00

$5.00

9

HOSE (L200)

90445-07176-00

$6.57

10

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$6.26

11

GASKET (3JD1)

90430-12207-00

$6.32

12

COVER, SHIFTER

437-15419-01-00

$66.68

13

RING, RUBBER

401-15449-00-00

$23.80

14

PIN,DOWEL (603)

93603-12007-00

$1.54

15

SCREW, PAN

98507-06014-00

$5.76

16

HOLDER (R.H)

304-15128-00-00

Unavailable

17

SCREW, PAN

98507-08010-00

Unavailable

18

HOLDER, CLUTCH CABLE

401-15441-02-00

Unavailable

19

BOLT (661)

97013-06012-00

Unavailable
